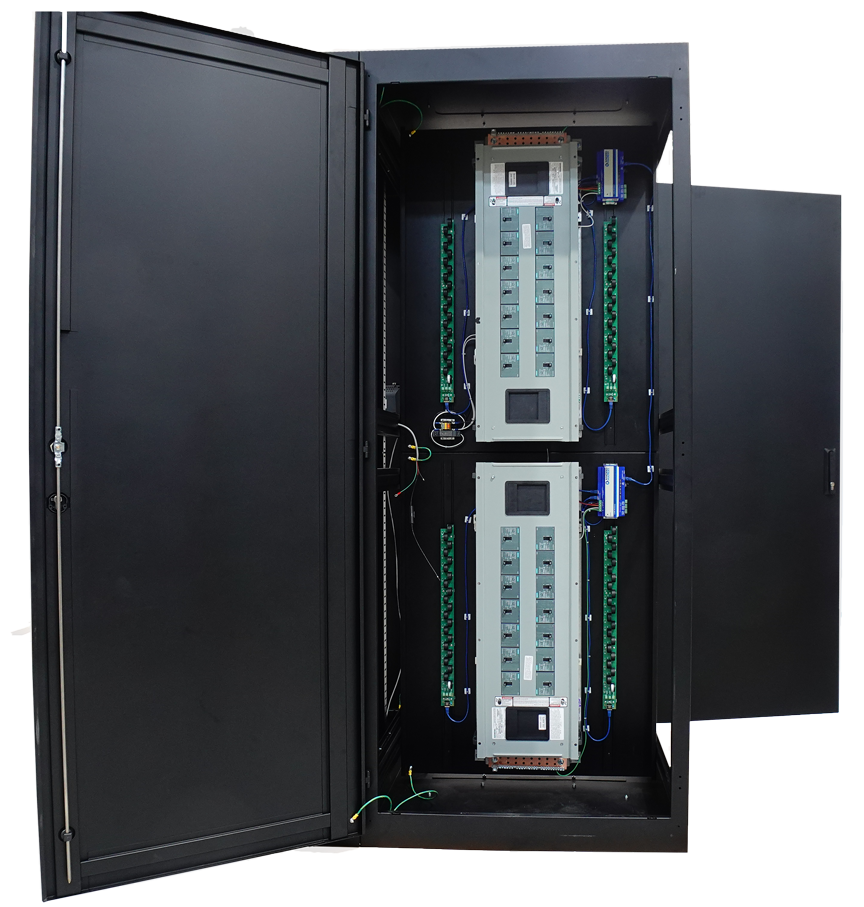

Remote Power Panels (RPP)

APPLICATION

The Volts Remote Power Panels are made to provide high-density branch circuit distribution in data centers and industrial applications.

 PRODUCT DESCRIPTION

The Voltz Remote power panel is a versatile and configurable solution that accommodates a variety of input and output voltage configurations. The Voltz RPP is available as 208Y/120V, 208V DELTA, 415Y/240V, and 480Y/277V. Choose from MLO (main lug only) or input breakered units.

 PANELBOARD INTERIORS

Voltz RPP’s utilize only high quality Schnieder Electric panel board interiors. Choose from 42 poles or 84 poles. Custom options available with up to 168 poles.

 CIRCUIT PROTECTION

Voltz Remote panels only use 100% rated, adjustable trip, electronic trip circuit breakers for main input protection. Branch circuit breakers are UL 489 rated and matched to the manufacturer of the panelboard interior.

 METERING

Optionally equipped with industry-leading revenue grade meters from major manufacturers that measure input and branch circuits as well as, capture, alarm, and log over 50 power parameters.

OPTIONS

The Voltz Remote Power Panel has a variety of smart options. The unit can be customized with any of the following features.

- Advanced mains metering with over 40 power metrics

- Monitor current on mains

- Monitor current on branch circuits

- On/Off control branch circuits

- Thermal monitoring

- Local touch screen HMI

- Communication: Ethernet, Modbus, Wifi, or RS232

- TVSS & EMI Filters

- Feet and height extension kits
