Crypto Mining PDUs

High-Density Crypto Mining PDUs

Crypto PDUs

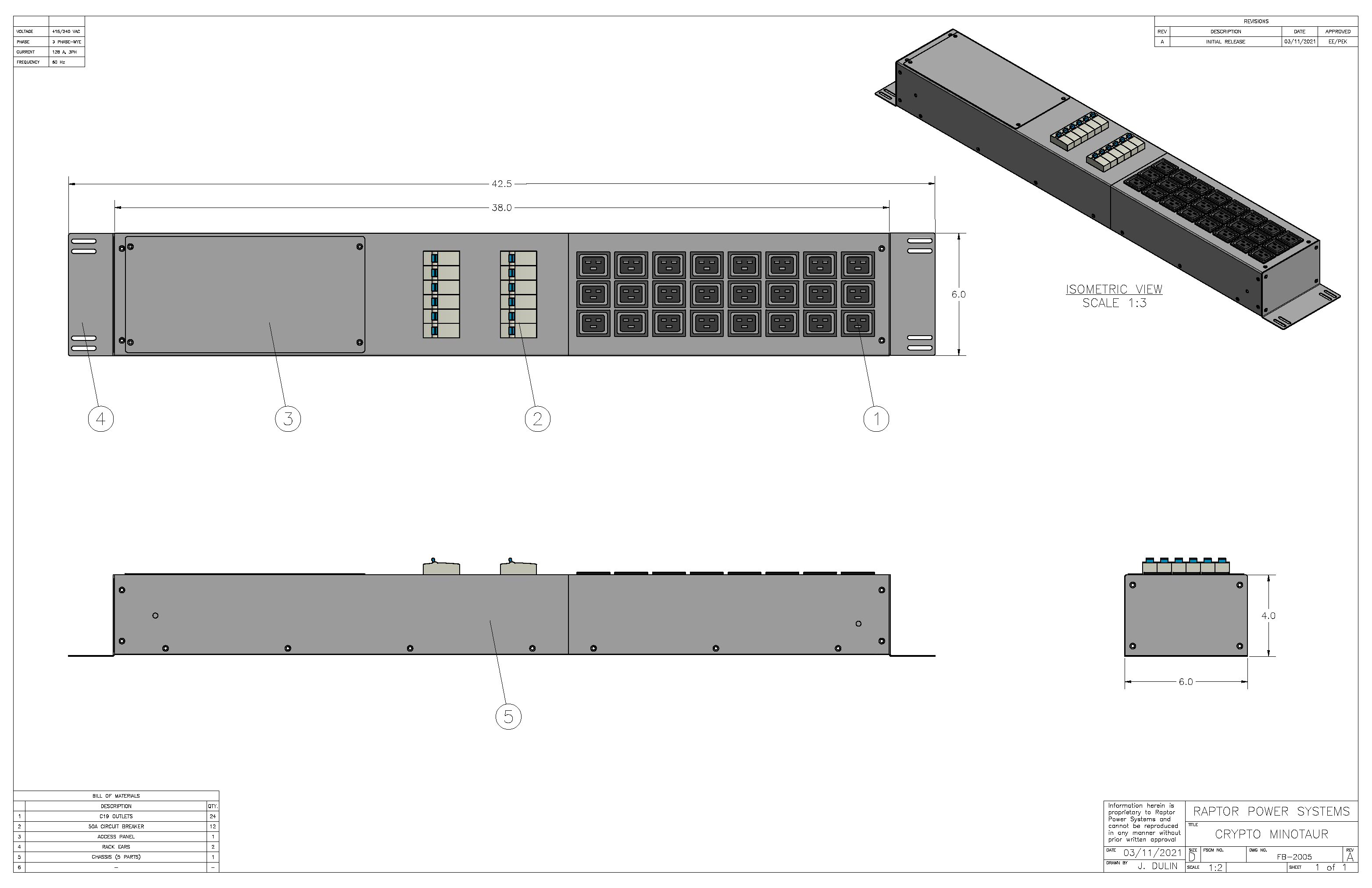

Product: Crypto Minotaur PDU
Part Number: RPS-PDU-CM-5
Total Power: 92.4kW of Brute Force Power

THE HIGHEST DENSITY PDU ON THE PLANET!

The Crypto Minotaur is a versatile 0U, 384 amp, PDU designed specifically for crypto mining applications.  12 x 50 amp breakers and 24 x C19 outlets give the Minotaur a powerful punch.

Unparalleled Density

The Crypto Minotaur is packed with 24 x C-19 outlets that can be loaded with 20 amps each. Equipped with 12 banks of 50 amp switched circuit breakers, de-rated to 40 amps, the Minotaur can power up to 384 amps of single-phase load (92.4kW). Specially made splitter cables double the Minotaur’s outlet capacity and streamlines the installation of S-19 and other dual input miners.

ENCLOSURE SPECIFICATIONS
Enclosure Material Aluminum/Steel
Enclosure Size 48" x 6" X 4"
Enclosure Style 0U Vertical Mount
INPUT SPECIFICATIONS
Frequency 50/60Hz
Input Voltage 240/415VAC Three Phase WYE
Phase Three Phase WYE (line, line, line, neutral, ground)
Total Watts 92,160 Watts (includes derations)
Total Current 384 Amps of Single Phase Load, fed with 128 Amp 3 Phase (includes derations)
Input Connector Hardwire Terminal (Lines up to 2/0, N & G up to 350MCM)
OUTPUT SPECIFICATIONS
Output Banking Scheme 1 Breaker per 2 x C-19 Outlets
Output Circuit Protection 12 x 50A Switched Circuit Breakers
Output Connectors 24 x C-19 Outlets (splitter power cables available for S17 and S19 miners)
Output Phase Single Phase (line, neutral, ground)
Output Voltage 240VAC Single Phase
PRODUCT DETAILS
Compliance UL 62368-1:2014 & CSA C22.2#62368-1:2014
Operating Temperature 0C - 60C
kAIC Rating 7.5kAIC  (10kAIC available for an additional fee, 200kAIC available in the Fused version of this unit)
Country of Manufacture USA

COMING SOON!

All PDUs, standard or custom, come with a full 1-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 1-year warranty period.

Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.

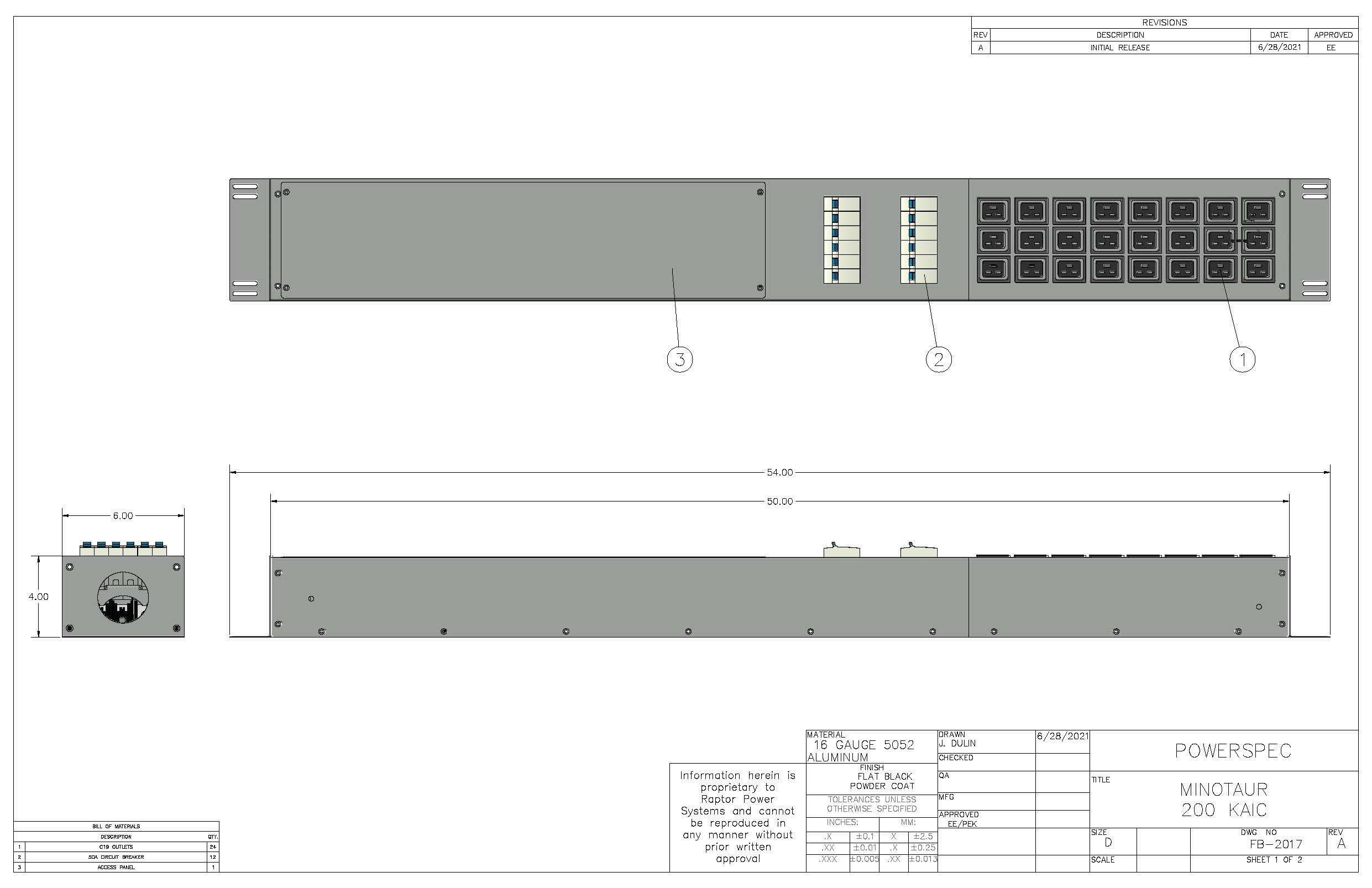

Product: Crypto Minotaur PDU FUSED
Part Number: RPS-PDU-CM-5-F
Total Power: 92.4kW of Brute Force Power


Input Fuse Protection

3 x 150 amp input fuses provide superior protection to critical loads, adding an additional over correction mitigation layer between your panel and the output breakers of the PDU. With fuses installed the Minotaur is 200kAIC rated.

THE HIGHEST DENSITY PDU ON THE PLANET!

The Crypto Minotaur is a versatile 0U, 384 amp, PDU designed specifically for crypto mining applications.  3 x 150A input fuses, 12 x 50 amp breakers, and 24 x C19 outlets give the Minotaur a powerful punch.

Unparalleled Density

The Crypto Minotaur is packed with 24 x C-19 outlets that can be loaded with 20 amps each. Equipped with 12 banks of 50 amp switched circuit breakers, de-rated to 40 amps, the Minotaur can power up to 384 amps of single-phase load. Specially made splitter cables double the Minotaur’s outlet capacity and streamlines the installation of S-19 and other dual input miners.

Do You Need an Input Fused or Non-Fused Minotaur?

The differences are quite simple. The fused unit has 3 x 150 Amp fuses on the input of the unit.  The Standard unit does not.  Both units have the same output circuit breakers for protection and the same number of outlets and power capacity.

Having fuses on the input provides two major features, expanded input protection, and a MUCH higher kAIC rating.  The kAIC rating, or interrupting current rating, in layman terms, is the amount of current that goes through a component without it catching on fire. Circuit breakers and fuses are designed to protect your equipment from damage in case of a short circuit or circuit overload. Breakers can withstand only a certain amount of current. All circuit breakers and fuses have an interrupting capacity rating. If you install a circuit breaker with a KAIC rating that is too low for the connected load, it may not be able to protect the circuit from damage if overloaded and create a potential fire risk.

Typical PDUs range from 5000 to 10000 amps of interrupted current. This works for most loads and electrical systems, but some Crypto Mines have a large capacity of power In close proximity, which can create the need for higher than standard kAIC ratings. Before the launch of the new fused Minotaur, there were no commercially viable or cost-effective solutions for solving this problem

But now, enter the FUSED Minotaur!

By adding input fuses, we bring the kAIC rating of the Minotaur PDU to over 200,000 amps!  This far exceeds even the highest rating that would be required.

So in summary, if you do not require a higher than 10,000 amp interpreting current rating or do not want an extra layer of input protection, the standard Montuar will work perfectly for you.  If you have a higher than standard kAIC rating requirement, the Fused Minotaur is the way to go.

ENCLOSURE SPECIFICATIONS
Enclosure Material Aluminum/Steel
Enclosure Size 54" x 6" X 4"
Enclosure Style 0U Vertical Mount
INPUT SPECIFICATIONS
Frequency 50/60Hz
Input Voltage 240/415VAC Three Phase WYE
Phase Three Phase WYE (line, line, line, neutral, ground)
Total Watts 92,160 Watts (includes derations)
Total Current 384 Amps of Single Phase Load, fed with 128 Amp 3 Phase (includes derations)
Input Connector Hardwire Terminal (Lines up to 2/0, N & G up to 350MCM)
Input Protection 3 x 150A Fuses (200kAIC rated)
OUTPUT SPECIFICATIONS
Output Banking Scheme 1 Breaker per 2 x C-19 Outlets
Output Circuit Protection 12 x 50A Switched Circuit Breakers
Output Connectors 24 x C-19 Outlets (splitter power cables available for S17 and S19 miners)
Output Phase Single Phase (line, neutral, ground)
Output Voltage 240VAC Single Phase
PRODUCT DETAILS
Compliance UL 62368-1:2014 & CSA C22.2#62368-1:2014
Operating Temperature 0C - 60C
kAIC Rating 200kAIC
Country of Manufacture USA

COMING SOON!

All PDUs, standard or custom, come with a full 1-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 1-year warranty period.

Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.

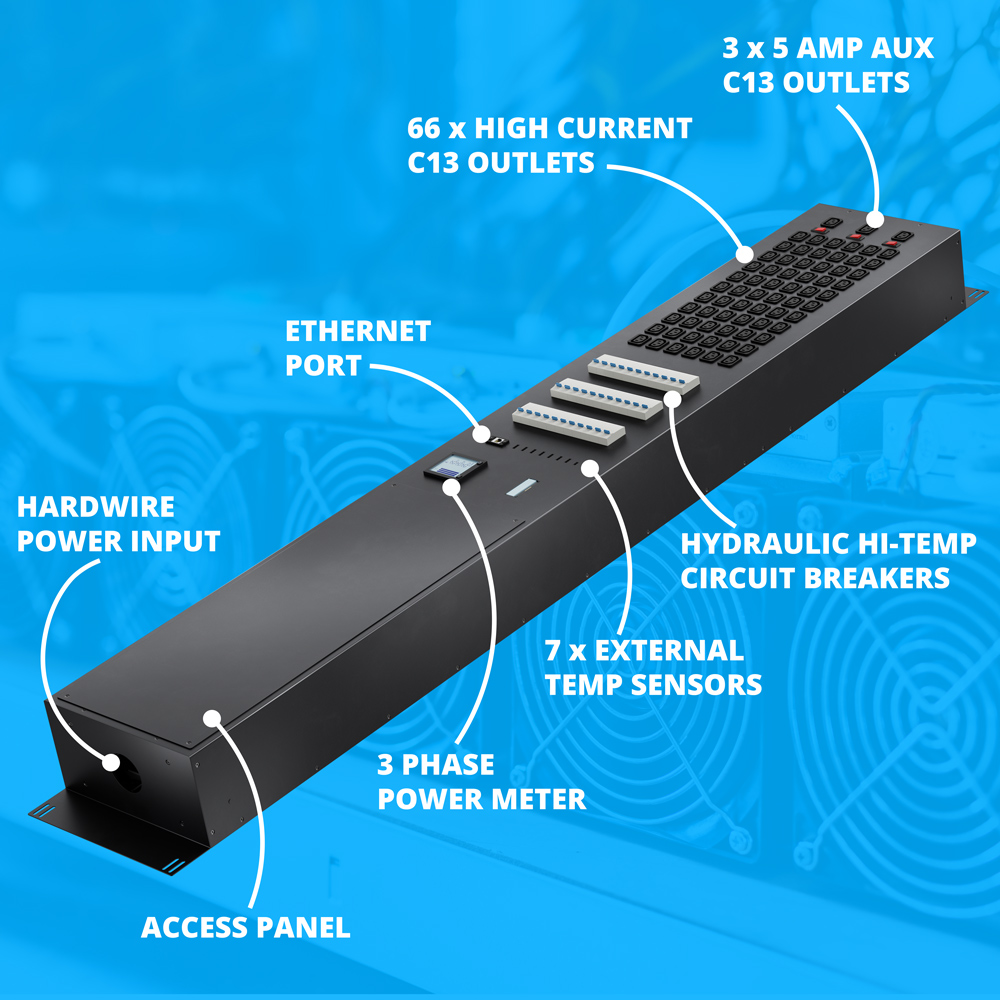

Product: Poseiden Immersion PDU
Part Number: RPS-PDU-X303
Total Power: 193.6kW of Brute Force Power

Availability: February 2024 (estimated)

OVERCLOCKED Immersion Specific Power Distribution

Overclock S17 or S19 miners up to 7680W (C19 version) 5750W (C13 version) with the Poseiden immersion-specific PDU. Built to power 33 overclocked (or not) miners and mount directly to an Artic Chainable Immersion Tank from Edge Data Solutions

Unparalleled Density

The Poseiden Immersion PDU is a versatile 0U, 810 amp, PDU designed specifically for immersion crypto mining applications.  33 x 50 amp hi-temp breakers, 69 x C13 outlets (66 high power, and 3 aux for network equipment) OR 66 x C19 outlets and 3 x C13 (aux) give the Poseiden a powerful punch and eliminate. Hi-temp rated circuit breakers eliminate thermal nuisance trips, so your mine is always running at full power.

Smart Metering

Monitor power with both a local meter and remotely via ethernet. Analyze kWH, volts, amps, frequency, power factor, harmonic distortion, and true RMS with a local display and a web page interface. Monitor temperature with 7 immersion-specific temp sensors that install directly into the tank and allow you to analyze hot and cold spots in your immersion system.



ENCLOSURE SPECIFICATIONS
Enclosure Material Aluminum/Steel
Enclosure Size 88" x 10" X 4"
Enclosure Style 0U Vertical Mount
INPUT SPECIFICATIONS
Frequency 50/60Hz
Input Voltage 240/415VAC Three Phase WYE
Phase Three Phase WYE (line, line, line, neutral, ground)
Total Current 810 Amps of Single Phase Load, fed with 270 Amp 3 Phase (includes derations)
Input Connector Hardwire Terminal (Lines up to 350MCM, N & G up to 500MCM)
OUTPUT SPECIFICATIONS
Output Banking Scheme 1 Breaker per 2 x C-13 Outlets (1 x 5A breaker per AUX C13 outlet)
Total Current/Watts 193,600 Watts / 810 Amps of Load
Output Circuit Protection 33 x 50A Switched Hi-Temp Circuit Breakers & 3 x 5A AUX Circuit Breakers
Output Connectors 69 x C-13 Outlets (66 high current outlet & 3 AUX outlets)
Output Phase Single Phase (line, neutral, ground)
Output Voltage 240VAC Single Phase
PRODUCT DETAILS
Compliance UL 62368-1:2014 & CSA C22.2#62368-1:2014
Operating Temperature 0C - 50C
kAIC Rating 7.5 & 10kAIC (other available upon request)
Country of Manufacture USA

Smart Metering

Monitor power with both a local meter and remotely via ethernet. Analyze kWH, volts, amps, frequency, power factor, harmonic distortion and true RMS with a local display and a web page interface. Monitor temperature with 7 immersion specific temp sensors that install directly into the tank and allow you to analyze hot and cold spots in your immersion system.

All PDUs, standard or custom, come with a full 1-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 1-year warranty period.

Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.

**** This unit will be discontinued - Will be available well supplies last*******

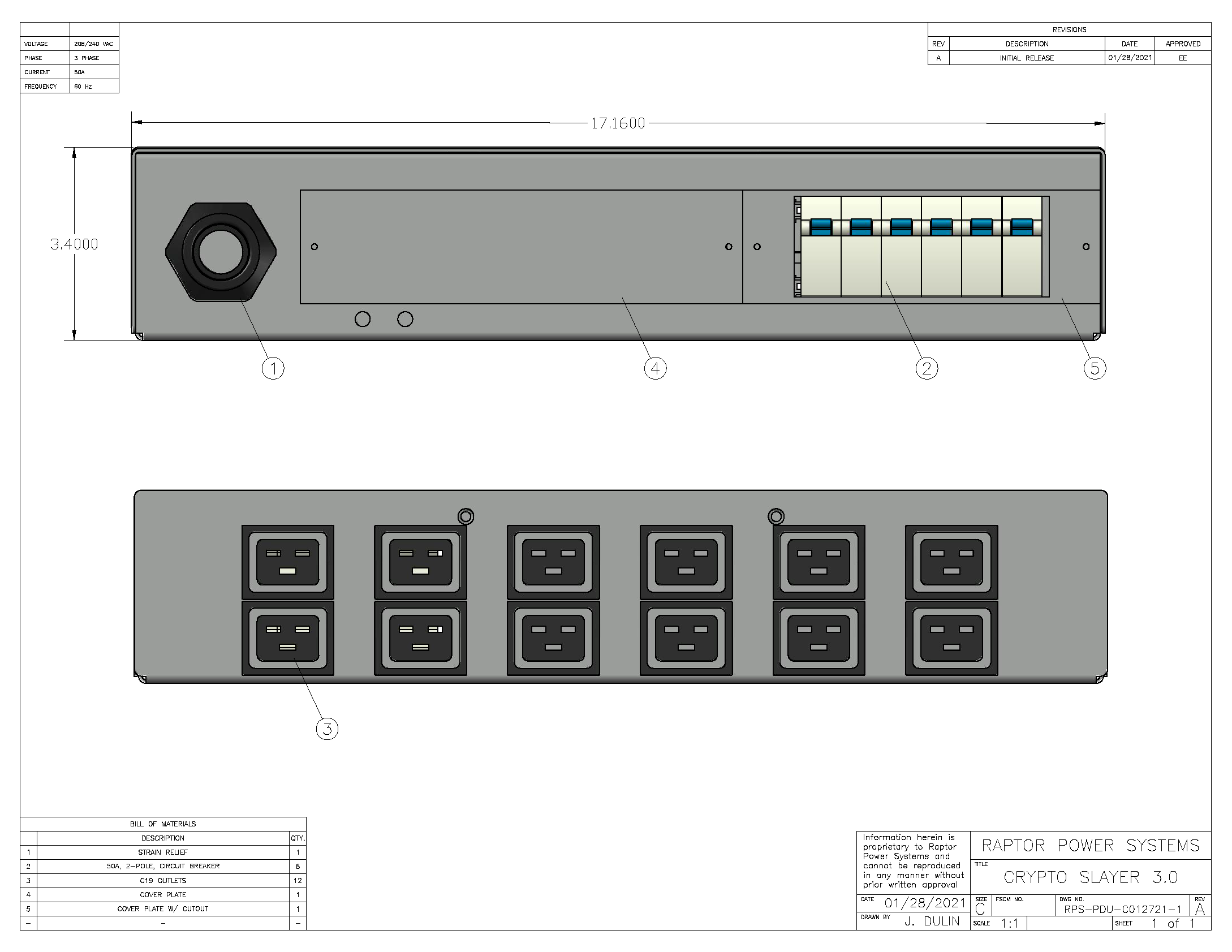

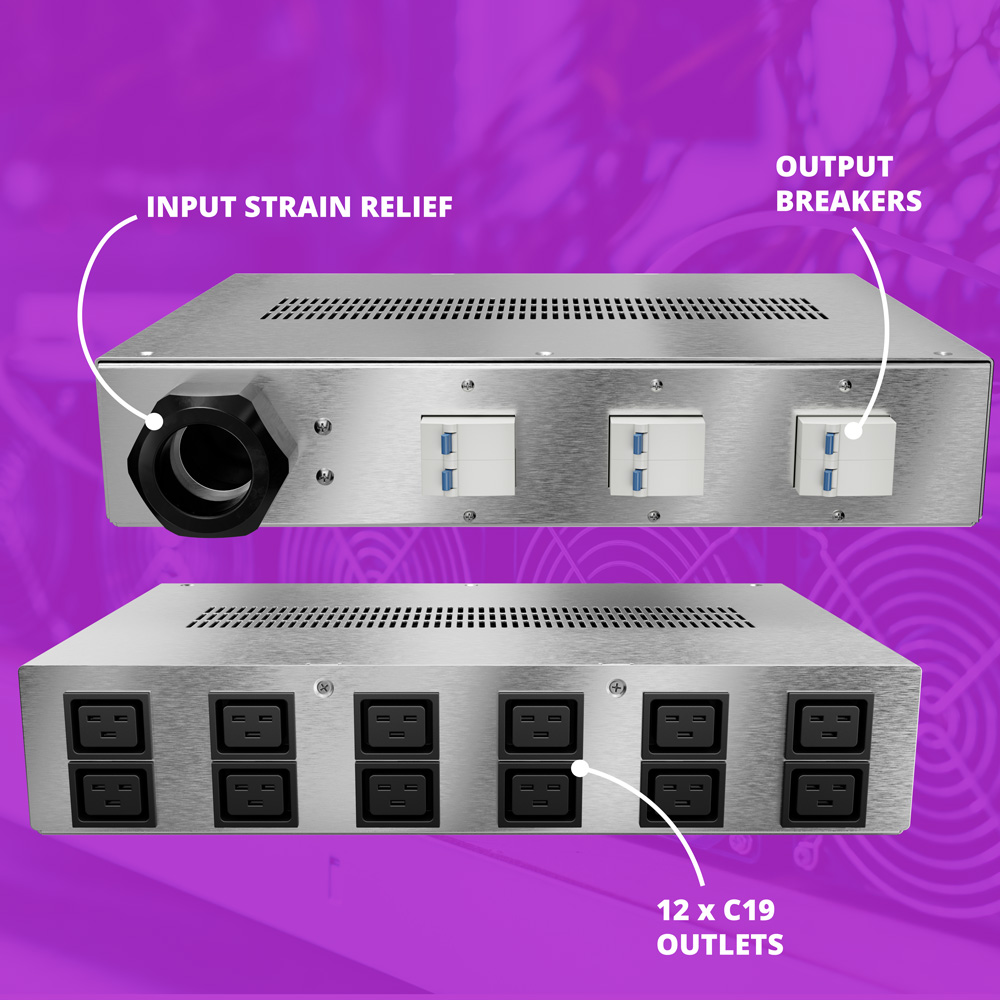

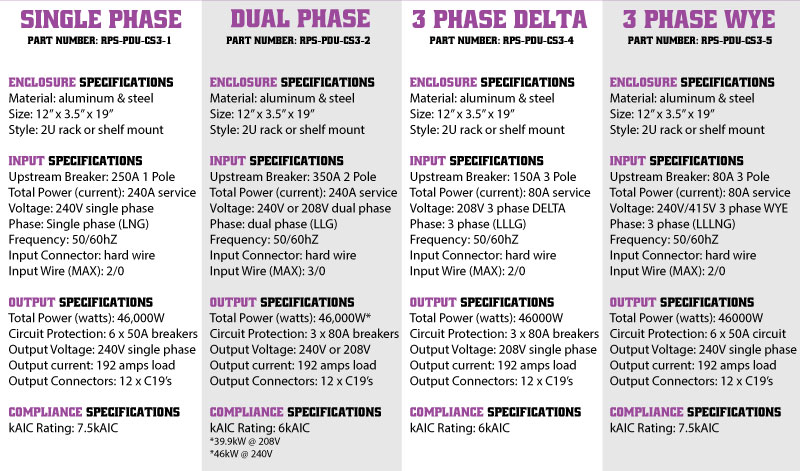

Part Number: Crypto Slayer 3.0
Crypto Slayer 3.0 Power Distribution Unit (PDU)
Total Power: 46kW (@240V/415V) of Brute Force Power


Power next generation power distribution unit is built with mining in mind. Designed to power 12 new generation miners with an 80 amps 3 phase input, providing 190 amps (46kW @ 240V/415V) of output power. 50 amp switched circuit breakers mitigate nuisance tripping due to thermal conditions and allow for on/off control of output banks. Flexible options for vertical or horizontal mounting and an aluminum enclosure for heat dissipation.  The Crypto Slayer 3.0 comes with a two year full warranty.

Main Benefits:
  • Support for high current loads of 190 Amps up to 80 Amps per phase.
  • Durable metal housing with a minimalist design.
  • Protection against short circuits or overloads.

All PDUs, standard or custom, come with a full 1-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 1-year warranty period.

Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.

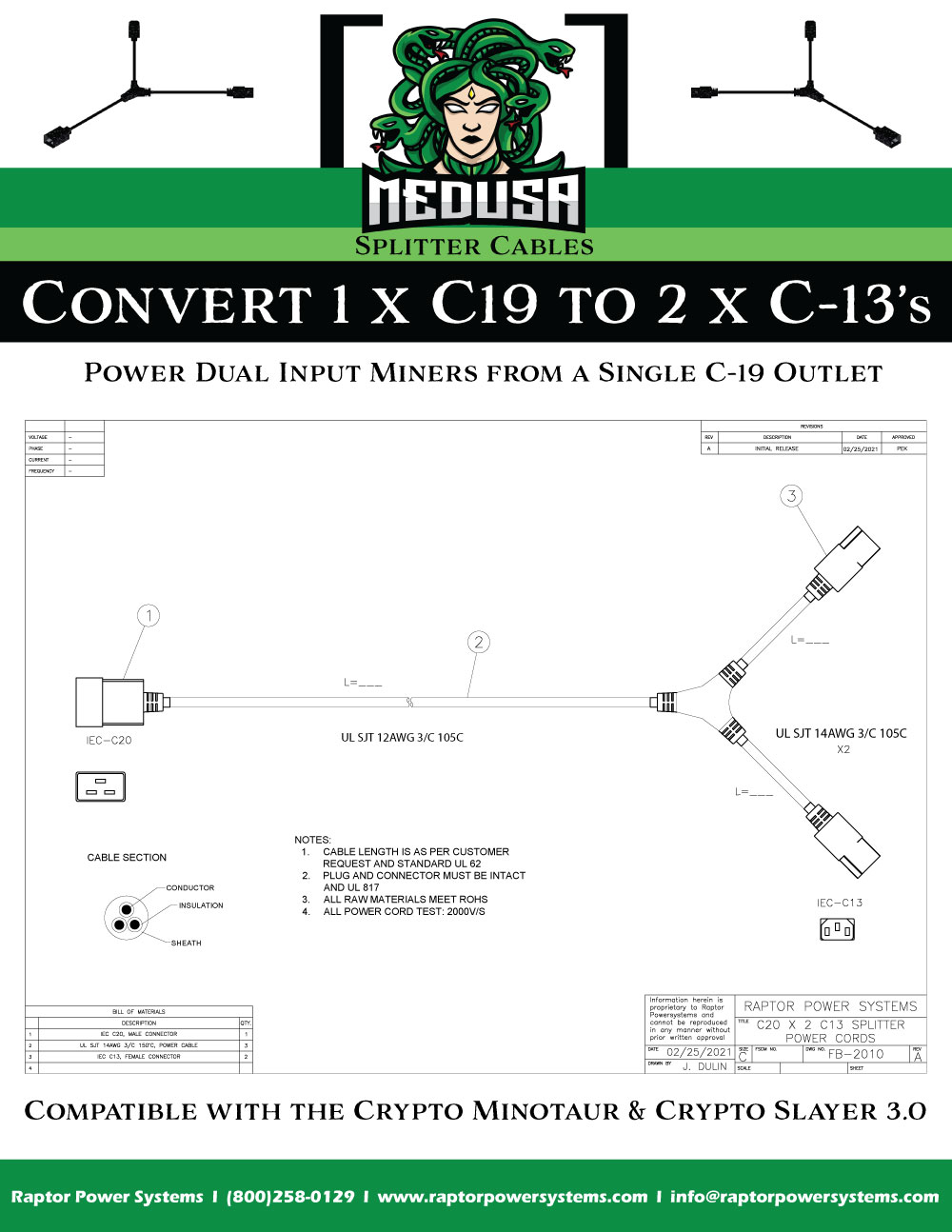

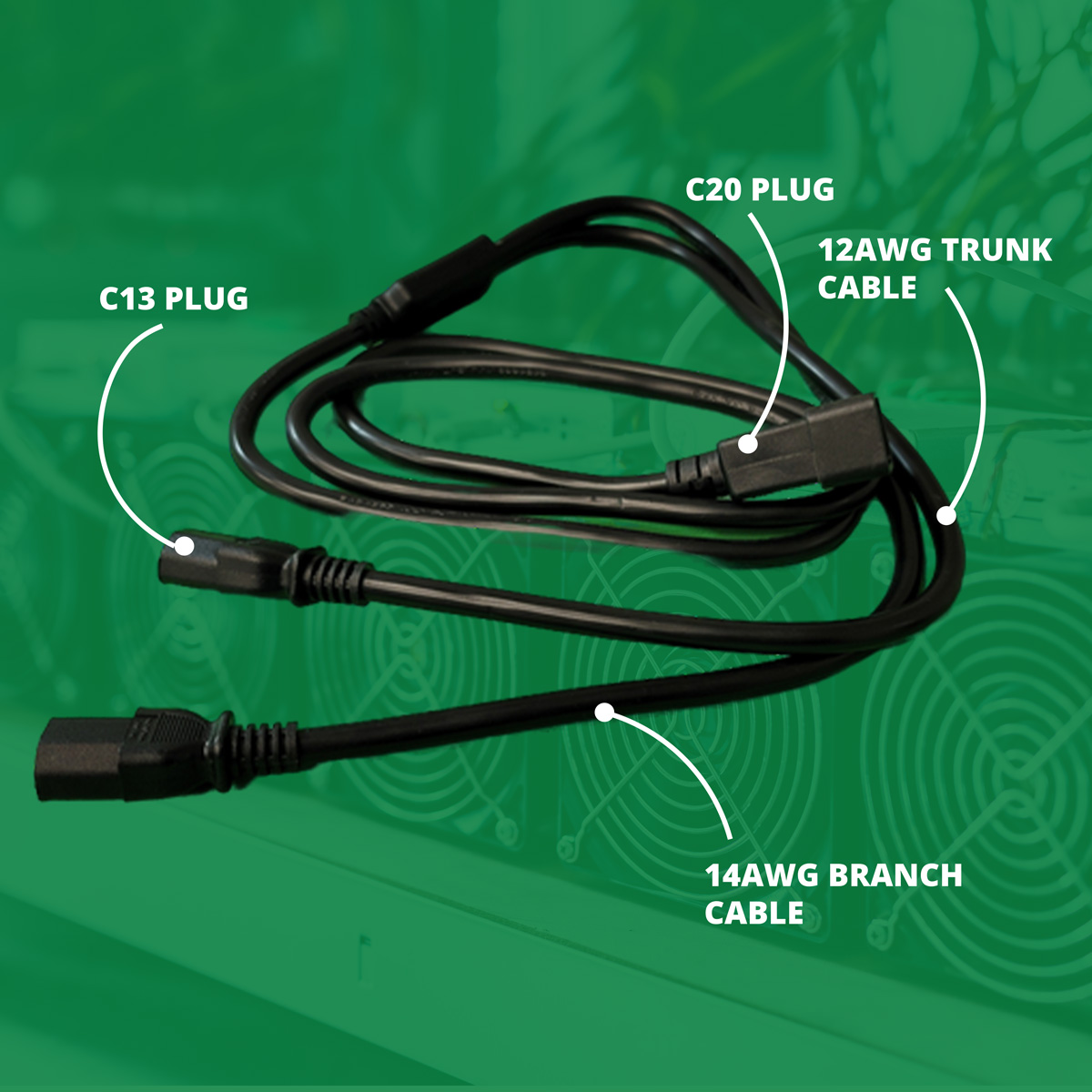

Part Number: Medusa Splitter Cables

Convert 1 x C19 to 2 x C 13's



Main benefits:
  • Cable lengths of 6ft and 10ft.
  • Custom lengths are available upon request with a min order of 1000pcs per length
  • Plug and Connector are UL 817 rated
  • All raw materials meet ROHS
All cables, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.

Learn About Crypto Mining Power

Can You Mine With 480V?
Mining with 240V/415V
Crypto Minotaur PDU
Can You Mine With 208V?
How to Mine at Home
Best PDU for S19 Miners
Crypto Slayer 3.0

Resources

Ultimate Crypto Power Guide

Ultimate Crypto Power Guide

The Ultimate Crypto Power Guide walks through every step and component required for a complete power system.  Go from a novice to an expert with this detailed guide.

LEARN MORE

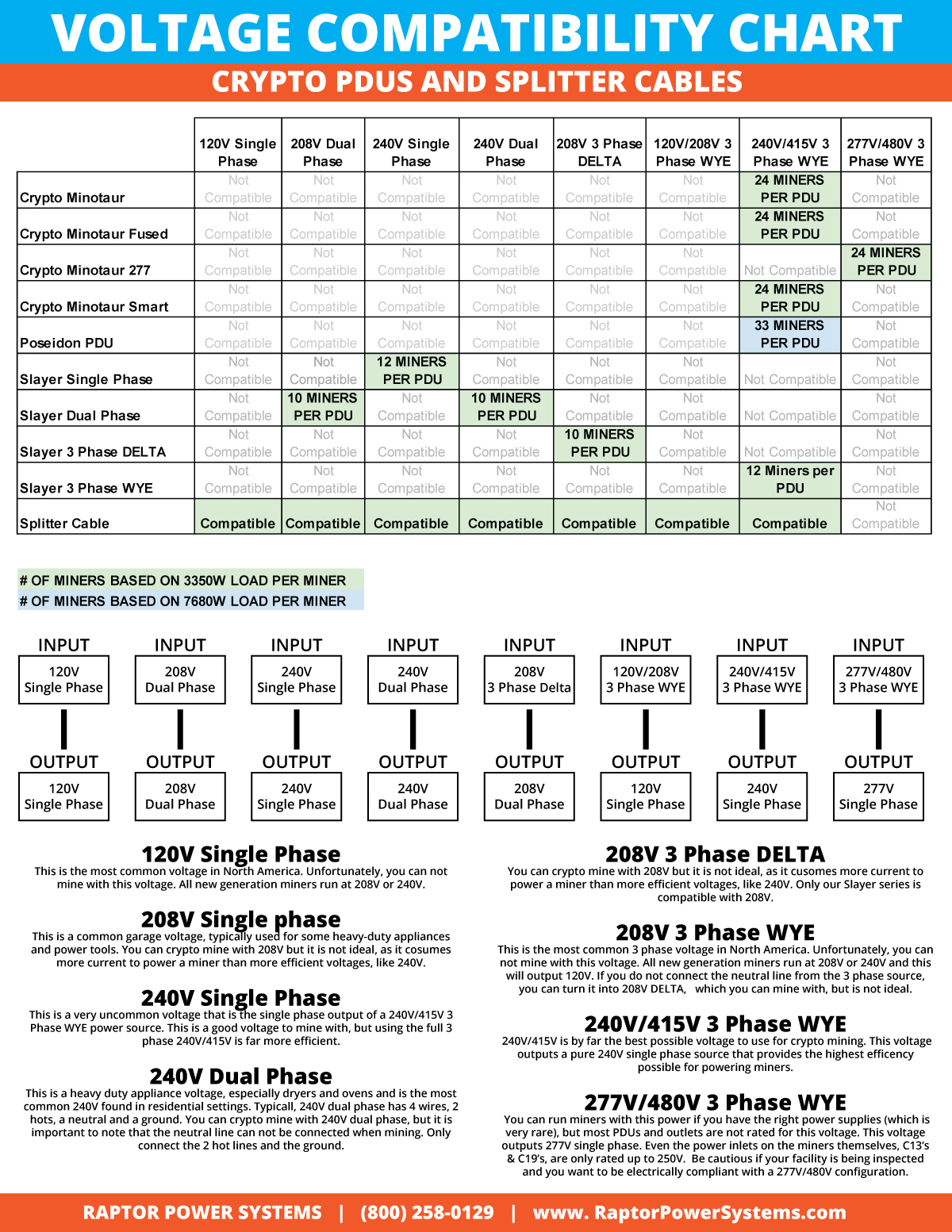

Crypto Product Selection Guide
