Commercial Power Distribution Units

Commercial and Industrial Rack PDUs

Commercial PDUs

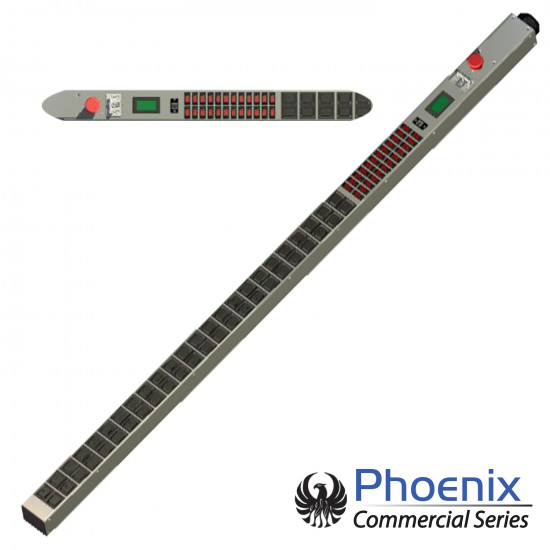

Part Number: RPS-PDU-1019

This 100A, 0U PDU has 48 x C-19 outlets, a hardwire input, and switched outputs.  Optional remote control & monitoring, and compliance testing are available.
ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure No
Enclosure Material Aluminium/Steel
Enclosure Size 0U x 72"
Enclosure Style 0U Vertical Mount
INPUT SPECIFICATIONS
Frequency 60Hz
Input Breaker UL Compliance -
Input Circuit Protection None
Input Voltage 120VAC/208VAC Three Phase; 240/415VCAC Three Phase
Lightning Protection (MOV) No
Phase Three Phase WYE (line, line, line, neutral, ground)
Power Cord N/A
Total Current 100 Amps (Three Phase, 300A of Single Phase Load)
Input Connector Hardwire
OUTPUT SPECIFICATIONS
Output Banking Scheme 2 Outlets per Circuit Breaker
Output Breaker UL Compliance UL 1077
Output Circuit Protection 24 x 30 Amp Switched Circuit Breakers
Output Connectors 48 x C-19
Output Phase Single Phase (line, neutral, ground)
Output Voltage Synced to Input
PRODUCT DETAILS
Operating Temperature 0C - 60C
TAA Compliant -
Circuit Protection ISO 9001:2016 Quality Controlled; Built to Meet UL 60950-1

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.

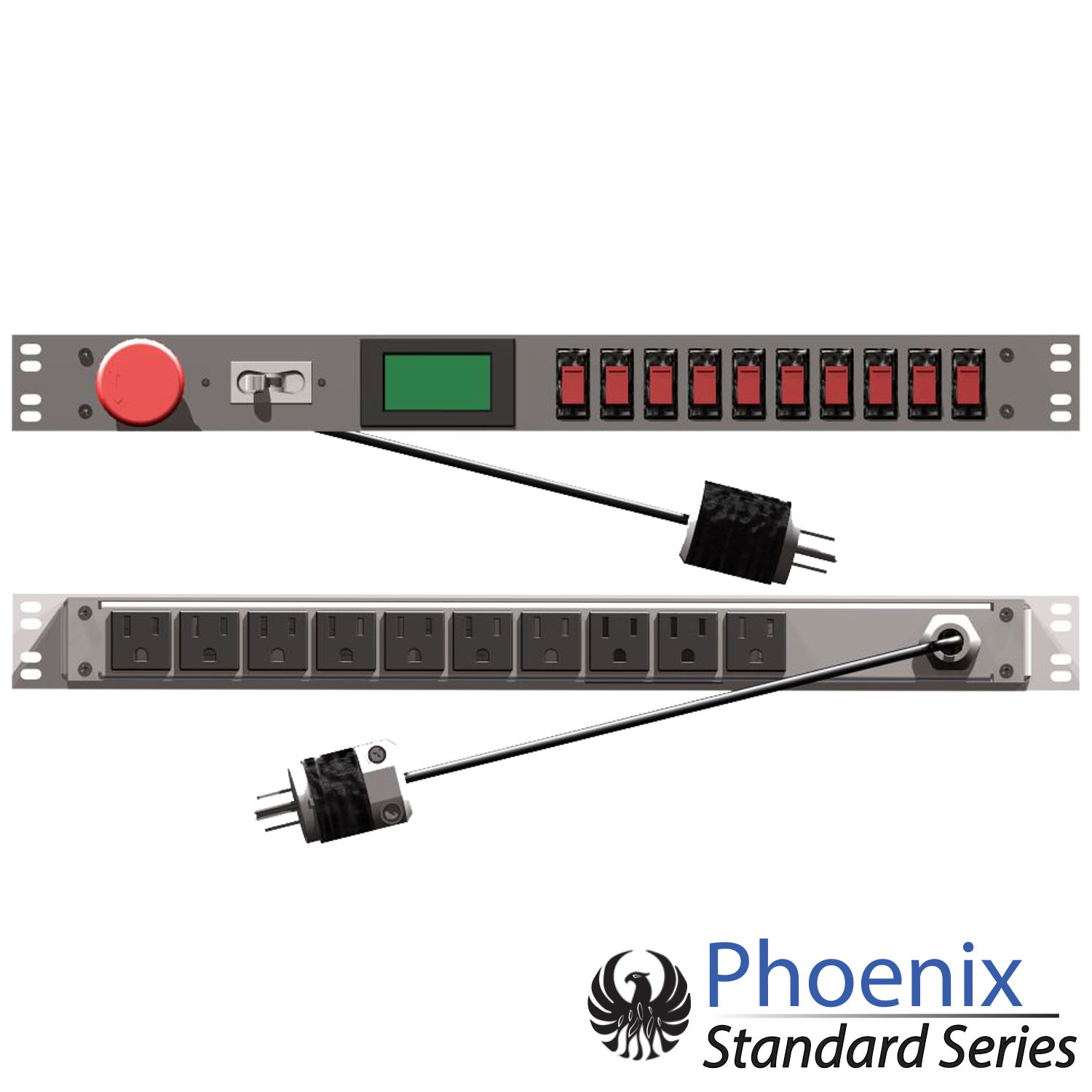

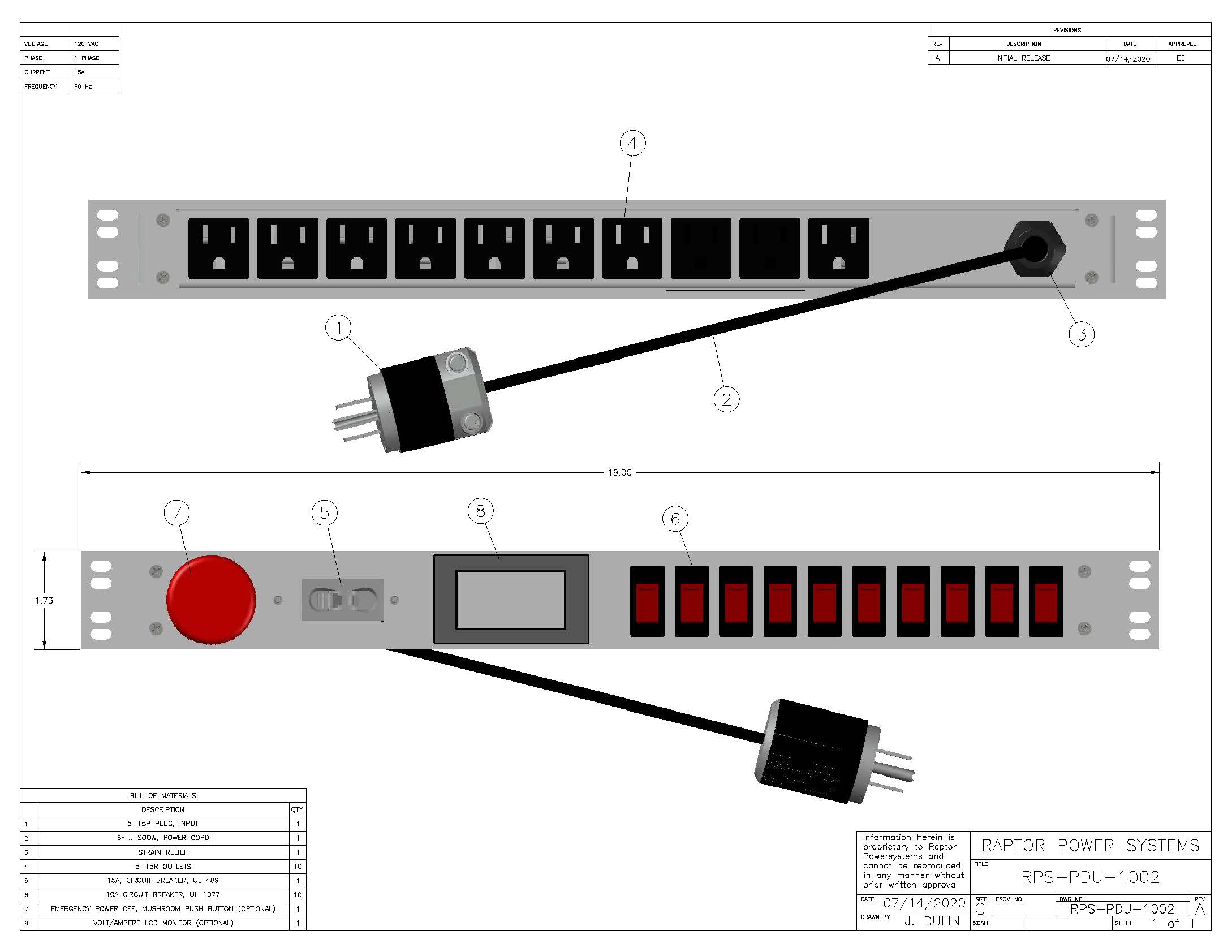

Part Number: RPS-PDU-1002

This 15A, 1U PDU has 10 x 5-15R outlets, a 5-15P plug This 15A, 1U PDU has 10 x 5-15R outlets, a 5-15P plug on 6ft power cord, an LCD meter to show volts and amps, and switched outputs.  Optional EMI filtering, EPO, remote control & monitoring, and compliance testing are available.
ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure No
Enclosure Material Aluminium/Steel
Enclosure Size 1U x 8"
Enclosure Style 19in Rack Mount
INPUT SPECIFICATIONS
Frequency 60Hz
Input Breaker UL Compliance UL 489
Input Circuit Protection Switched 15 Amp Circuit Breaker
Input Voltage 120VAC Single Phase
Phase Single Phase (line, neutral, ground)
Power Cord 6ft SOOW
Total Current 15 Amps
Input Connector 5-15P
OUTPUT SPECIFICATIONS
Output Banking Scheme 1 Outlet per Circuit Breaker
Output Breaker UL Compliance UL 1077
Output Circuit Protection 10 x 10 Amp Switched Circuit Breakers
Output Connectors 10 x 5-15R
Output Phase Single Phase (line, neutral, ground)
Output Voltage Synced to Input

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.

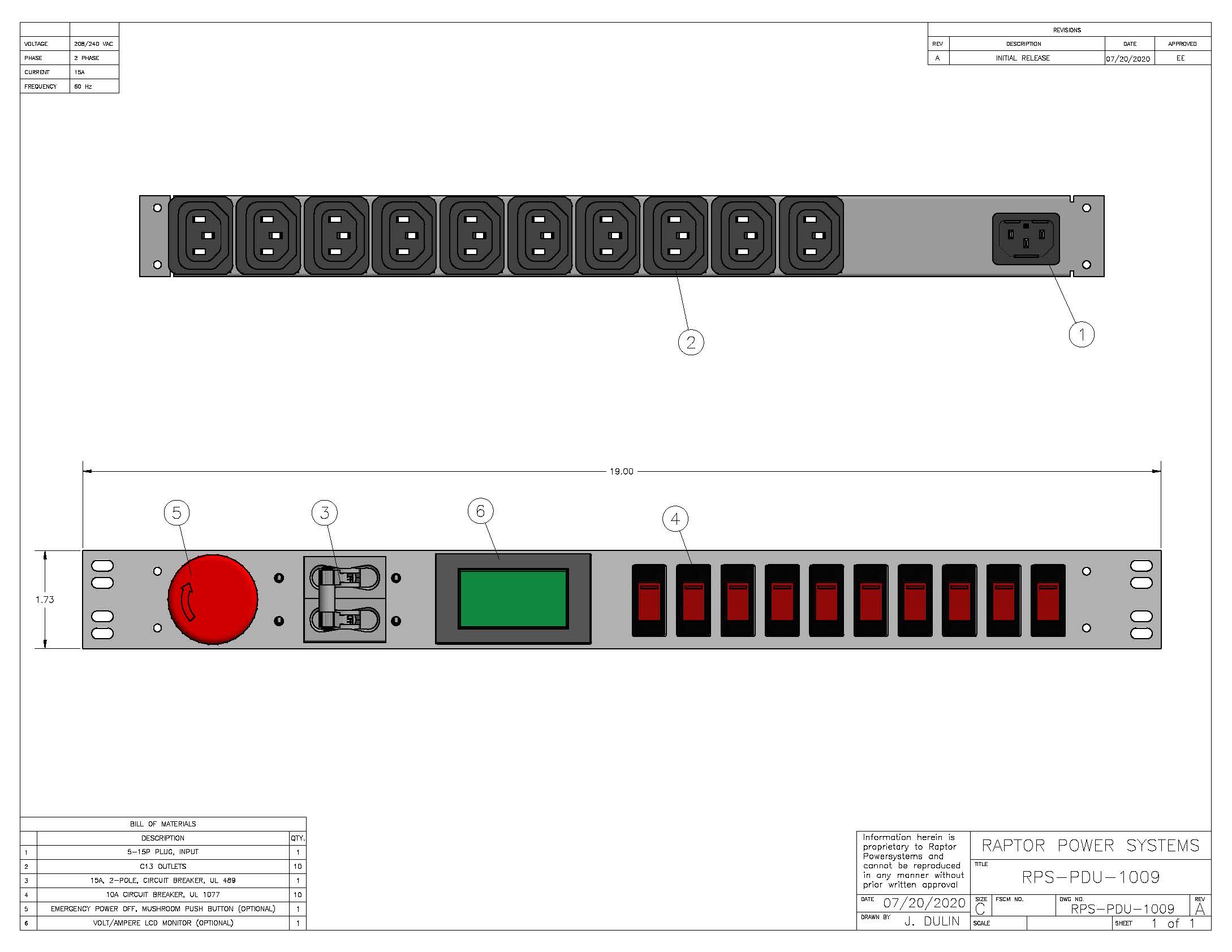

Part Number: RPS-PDU-1009

This 15A, 1U PDU has 10 x c-13 outlets, a c-14 inlet with a 6ft power cord, an LCD meter to show volts and amps, and switched outputs.  Optional EMI filtering, EPO, remote control & monitoring, and compliance testing are available.
ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure No
Enclosure Material Aluminium/Steel
Enclosure Size 1U x 8"
Enclosure Style 19in Rack Mount
INPUT SPECIFICATIONS
Frequency 60Hz
Input Breaker UL Compliance UL 489
Input Circuit Protection Switched 15 Amp Circuit Breaker
Input Voltage 208VAC Single Phase; 240VAC Single Phase
Lightning Protection (MOV) No
Phase Dual Phase (line, line, ground)
Power Cord 6ft SOOW
Total Current 15 Amps
Input Connector C-14
OUTPUT SPECIFICATIONS
Output Banking Scheme 1 Outlet per Circuit Breaker
Output Breaker UL Compliance UL 1077
Output Circuit Protection 10 x 10 Amp Switched Circuit Breakers
Output Connectors 10 x C-13
Output Phase Dual Phase (line, line, ground)
Output Voltage Synced to Input
PRODUCT DETAILS
Compliance ISO 9001:2016 Quality Controlled; Built to Meet UL 60950-1
Operating Temperature 0C - 60C

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.

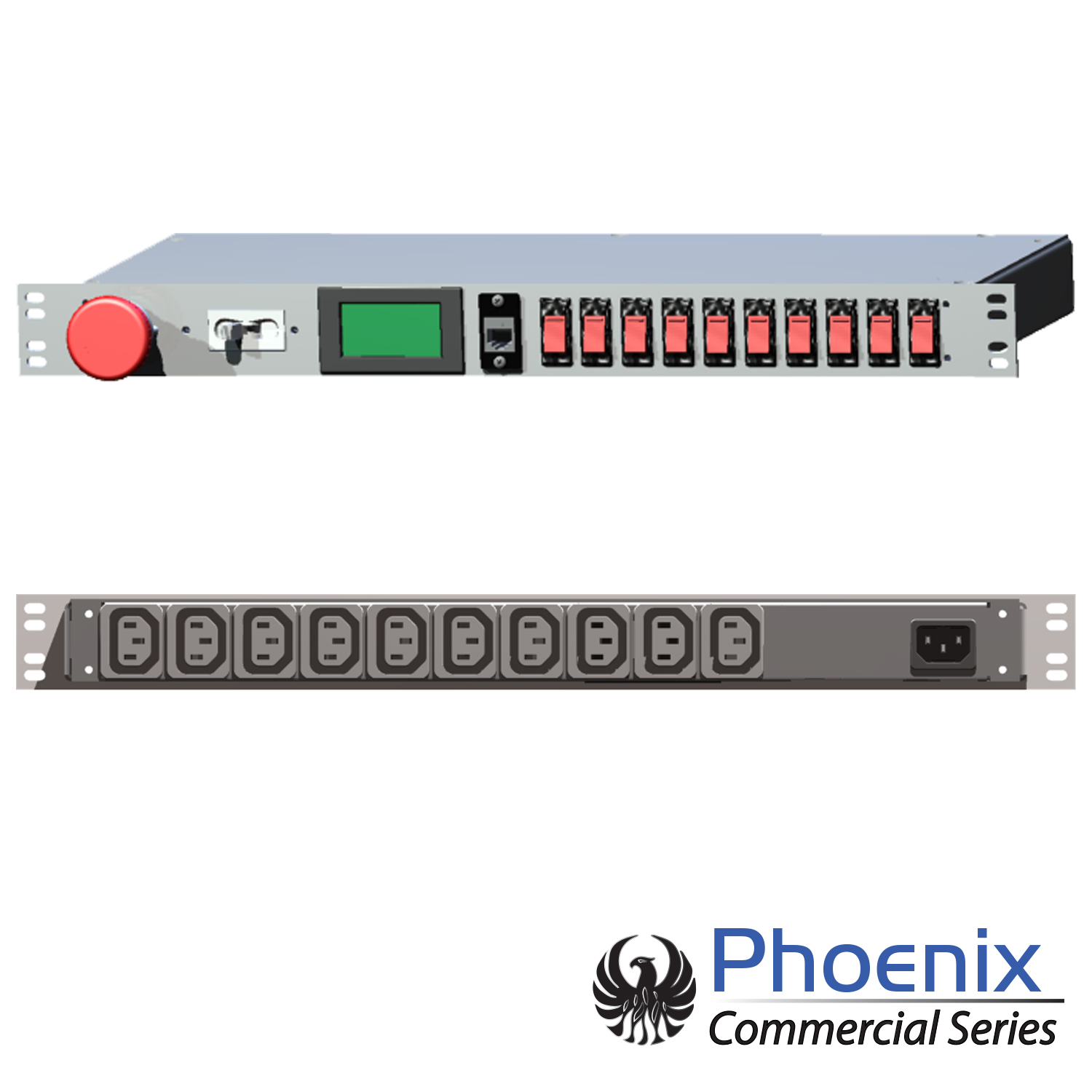

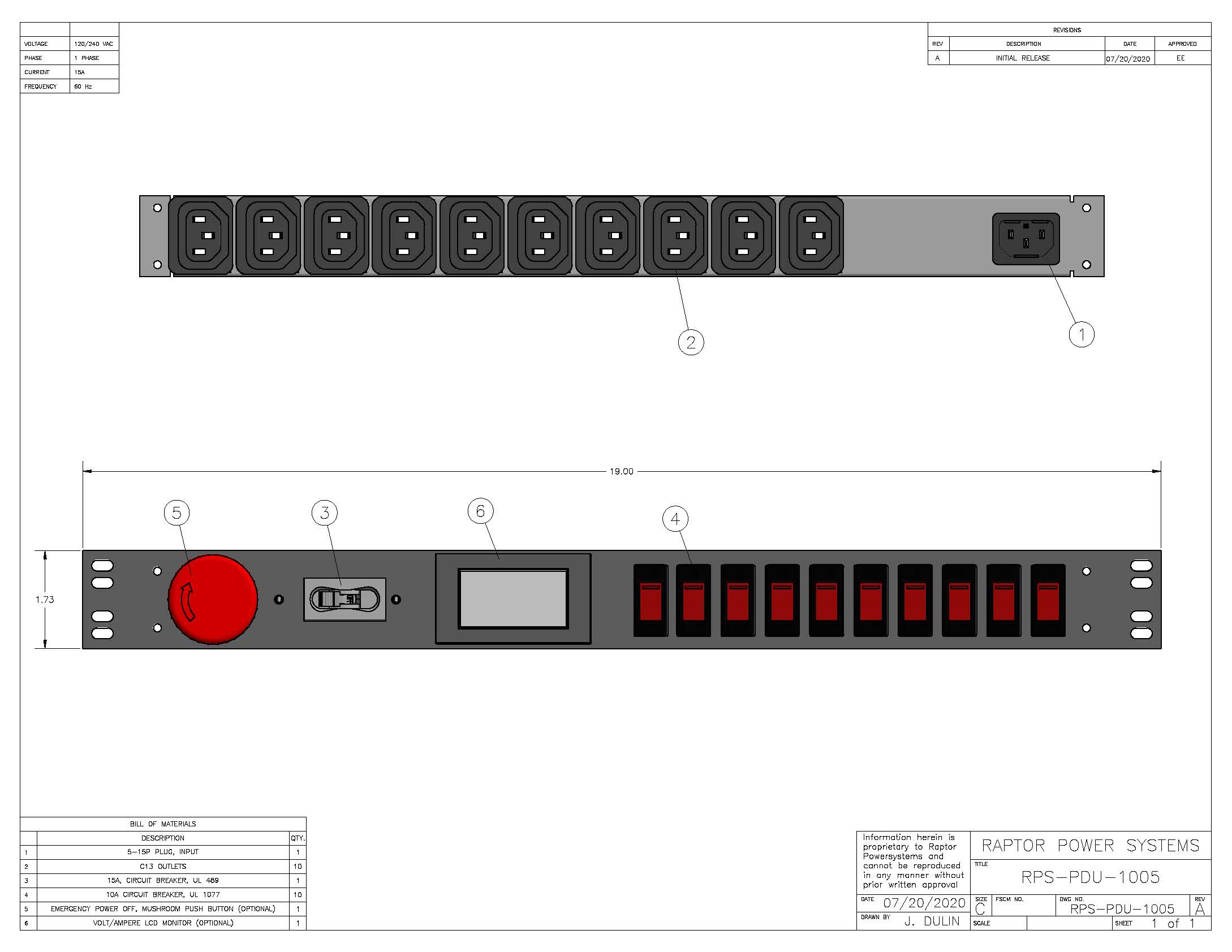

Part Number: RPS-PDU-1005

This 15A, 1U PDU has 10 x c-13 outlets, a c-14 inlet with a 6ft power cord, an LCD meter to show volts and amps, and switched outputs.  Optional EMI filtering, EPO, remote control & monitoring, and compliance testing are available.
ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure No
Enclosure Material Aluminium/Steel
Enclosure Size 1U x 8"
Enclosure Style 19in Rack Mount
INPUT SPECIFICATIONS
Frequency 60Hz
Input Breaker UL Compliance UL 489
Input Circuit Protection Switched 15 Amp Circuit Breaker
Input Voltage 120VAC Single Phase; 240VAC Single Phase
Lightning Protection (MOV) No
Phase Single Phase (line, neutral, ground)
Power Cord 6ft SOOW
Total Current 15 Amps
Input Connector C-14
OUTPUT SPECIFICATIONS
Output Banking Scheme 1 Outlet per Circuit Breaker
Output Breaker UL Compliance UL 1077
Output Circuit Protection 10 x 10 Amp Switched Circuit Breakers
Output Connectors 10 x C-13
Output Phase Single Phase (line, neutral, ground)
Output Voltage Synced to Input
PRODUCT DETAILS
Compliance ISO 9001:2016 Quality Controlled; Built to Meet UL 60950-1
Operating Temperature 0C - 60C

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.

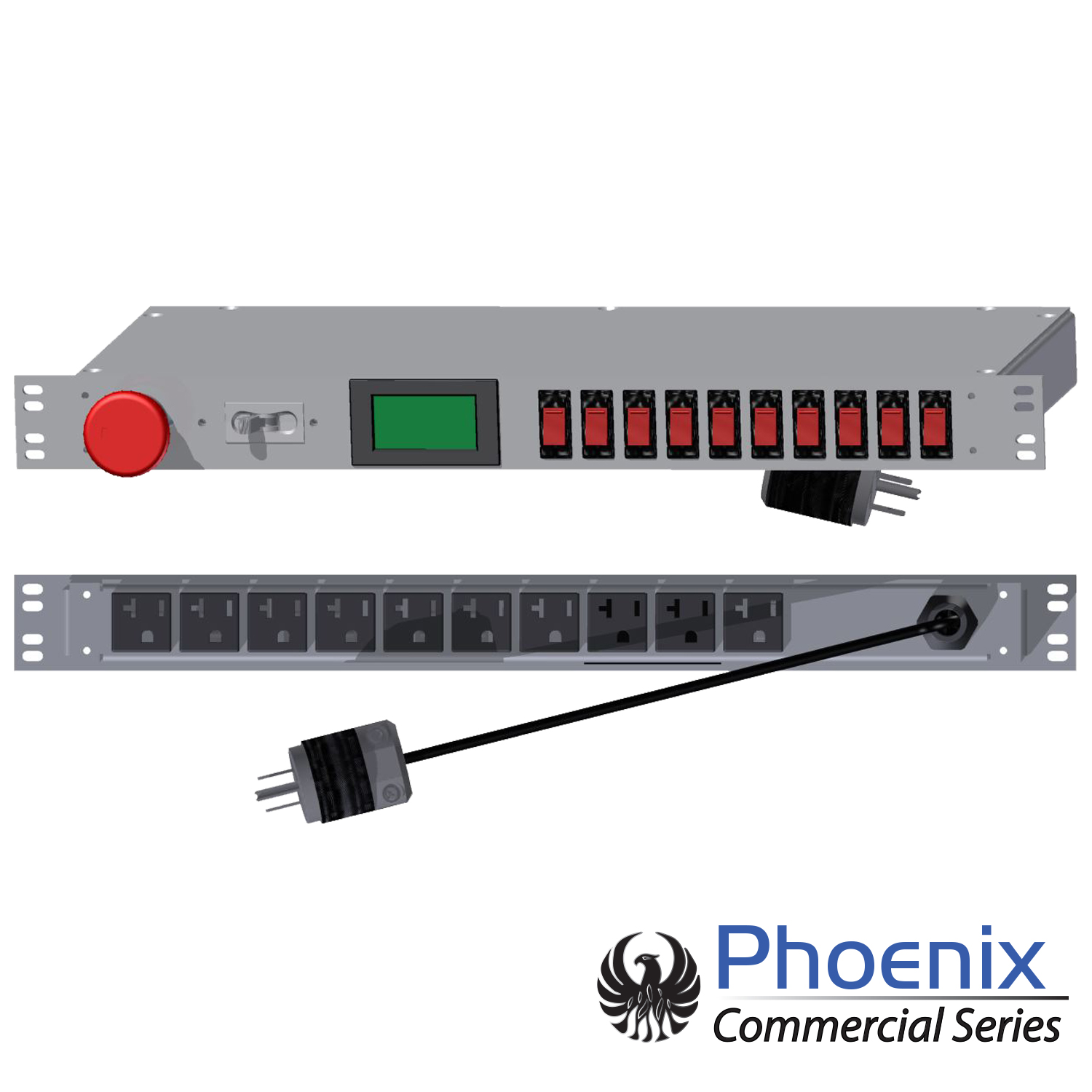

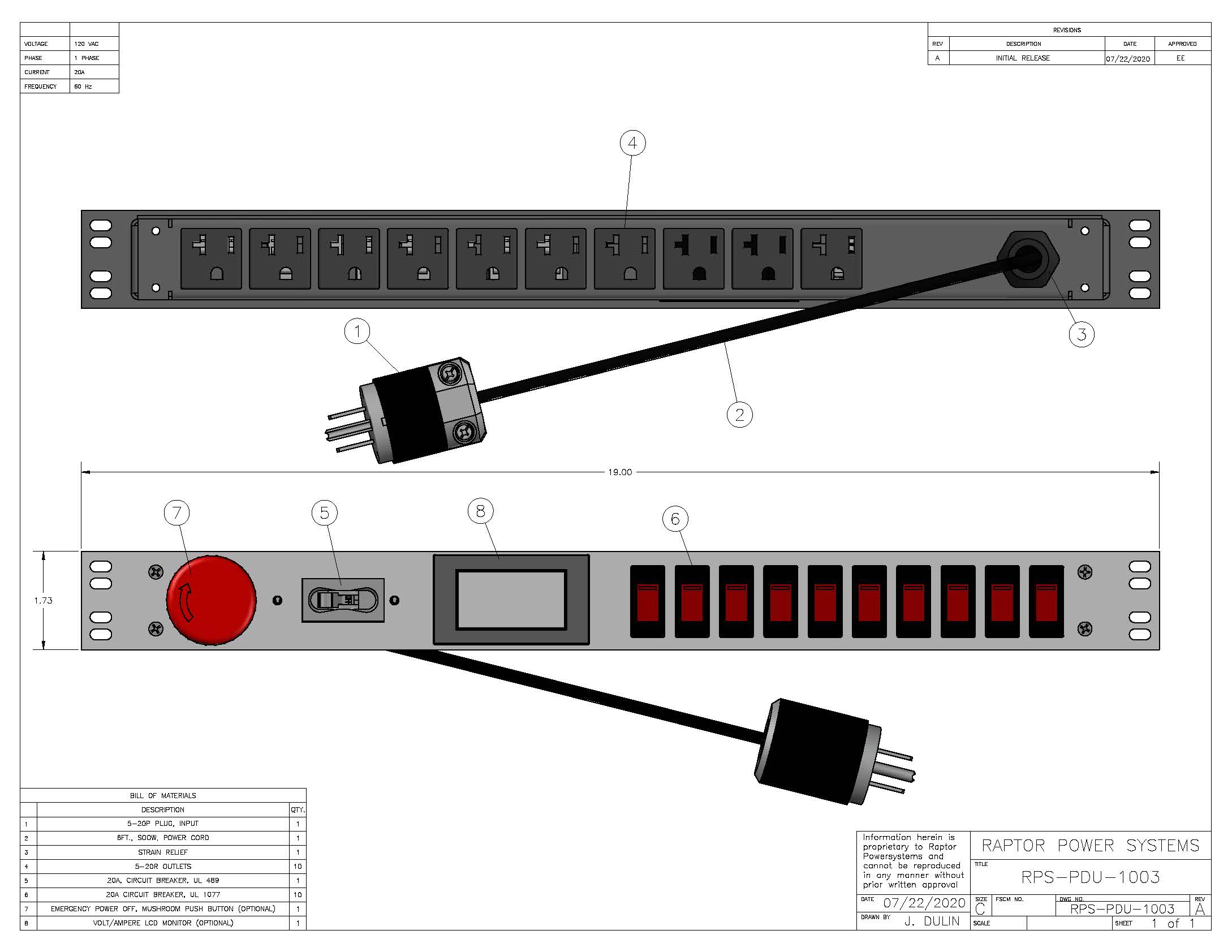

Part Number: RPS-PDU-1003

This 20A, 1U PDU has 10 x 5-20R outlets, a 5-20P plug on 6ft power cord, an LCD meter to show volts and amps, and switched outputs.  Optional EMI filtering, EPO, remote control & monitoring, and compliance testing are available.
ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure No
Enclosure Material Aluminium/Steel
Enclosure Size 1U x 8"
Enclosure Style 19in Rack Mount
INPUT SPECIFICATIONS
Frequency 60Hz
Input Breaker UL Compliance UL 489
Input Circuit Protection Switched 20 Amp Circuit Breaker
Input Voltage 120VAC Single Phase
Lightning Protection (MOV) No
Phase Single Phase (line, neutral, ground)
Power Cord 6ft SOOW
Total Current 20 Amps
OUTPUT SPECIFICATIONS
Output Banking Scheme 1 Outlet per Circuit Breaker
Output Breaker UL Compliance UL 1077
Output Circuit Protection 10 x 20 Amp Switched Circuit Breakers
Output Connectors 10 x 5-20R
Output Phase Single Phase (line, neutral, ground)
Output Voltage Synced to Input
PRODUCT DETAILS
Compliance ISO 9001:2016 Quality Controlled; Built to Meet UL 60950-1
Operating Temperature 0C - 60C

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.

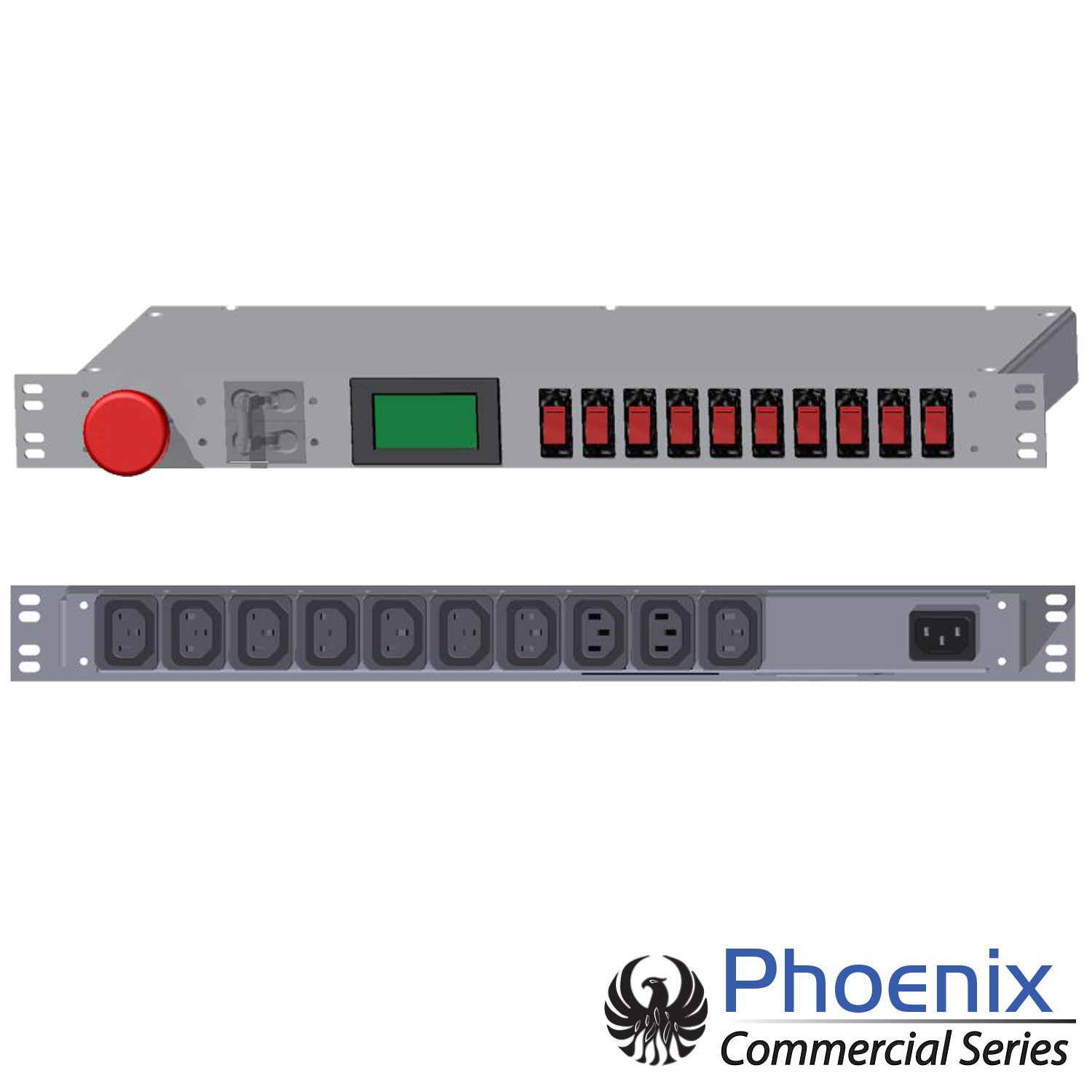

Part Number: RPS-PDU-1010

This 20A, 1U PDU has 10 x c-13 outlets, a c-14 inlet with a 6ft power cord, an LCD meter to show volts and amps, and switched outputs. Optional EMI filtering, EPO, remote control & monitoring, and compliance testing are available.
ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure No
Enclosure Material Aluminium/Steel
Enclosure Size 1U x 8"
Enclosure Style 19in Rack Mount
INPUT SPECIFICATIONS
Frequency 60Hz
Input Breaker UL Compliance UL 489
Input Circuit Protection Switched 20 Amp Circuit Breaker
Input Voltage 208VAC Single Phase; 240VAC Single Phase
Lightning Protection (MOV) No
Phase Dual Phase (line, line, ground)
Power Cord 6ft SOOW
Total Current 20 Amps
Input Connector C-14
OUTPUT SPECIFICATIONS
Output Banking Scheme 1 Outlet per Circuit Breaker
Output Breaker UL Compliance UL 1077
Output Circuit Protection 10 x 10 Amp Switched Circuit Breakers
Output Connectors 10 x C-13
Output Phase Dual Phase (line, line, ground)
Output Voltage Synced to Input
PRODUCT DETAILS
Compliance ISO 9001:2016 Quality Controlled; Built to Meet UL 60950-1
Operating Temperature 0C - 60C

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.

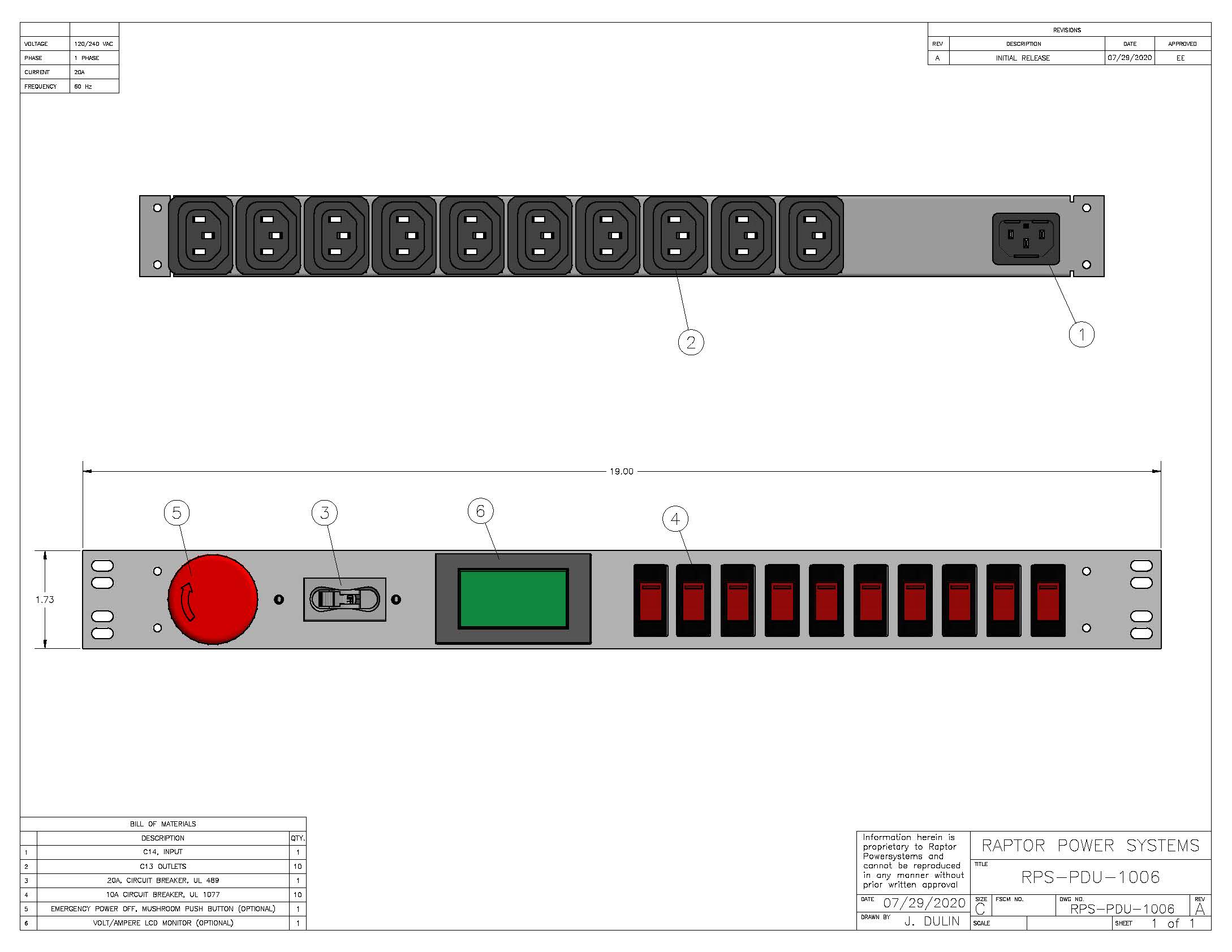

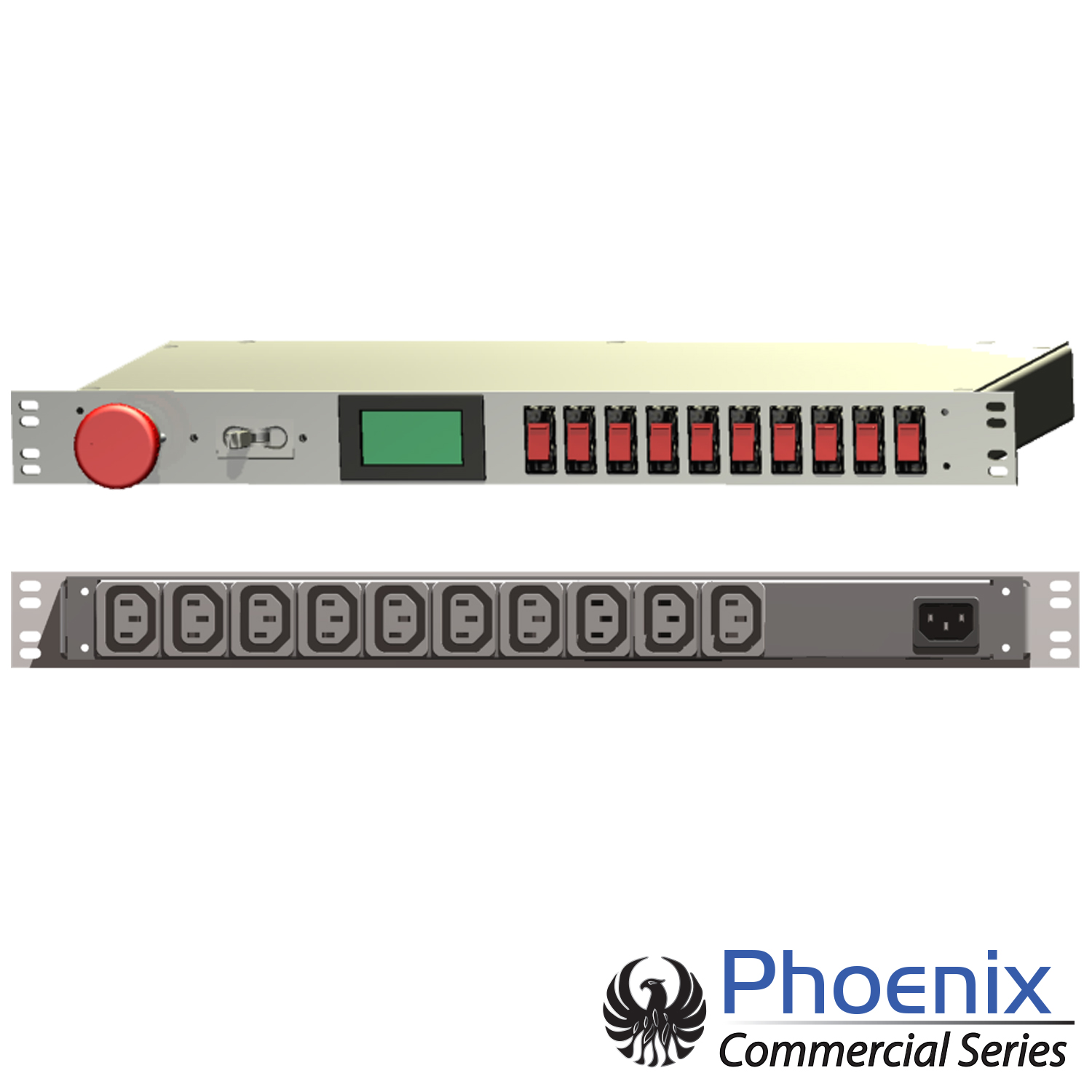

Part Number: RPS-PDU-1006

This 20A, 1U PDU has 10 x c-13 outlets, a c-14 inlet with a 6ft power cord, an LCD meter to show volts and amps, and switched outputs.  Optional EMI filtering, EPO, remote control & monitoring, and compliance testing are available.
ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure No
Enclosure Material Aluminium/Steel
Enclosure Size 1U x 8"
Enclosure Style 19in Rack Mount
INPUT SPECIFICATIONS
Frequency 60Hz
Input Breaker UL Compliance UL 489
Input Circuit Protection Switched 20 Amp Circuit Breaker
Input Voltage 120VAC Single Phase; 240VAC Single Phase
Lightning Protection (MOV) No
Phase Single Phase (line, neutral, ground)
Power Cord 6ft SOOW
Total Current 20 Amps
Input Connector C-14
OUTPUT SPECIFICATIONS
Output Banking Scheme 1 Outlet per Circuit Breaker
Output Breaker UL Compliance UL 1077
Output Circuit Protection 10 x 10 Amp Switched Circuit Breakers
Output Connectors 10 x C-13
Output Phase Single Phase (line, neutral, ground)
Output Voltage Synced to Input
PRODUCT DETAILS
Compliance ISO 9001:2016 Quality Controlled; Built to Meet UL 60950-1
Operating Temperature 0C - 60C

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.

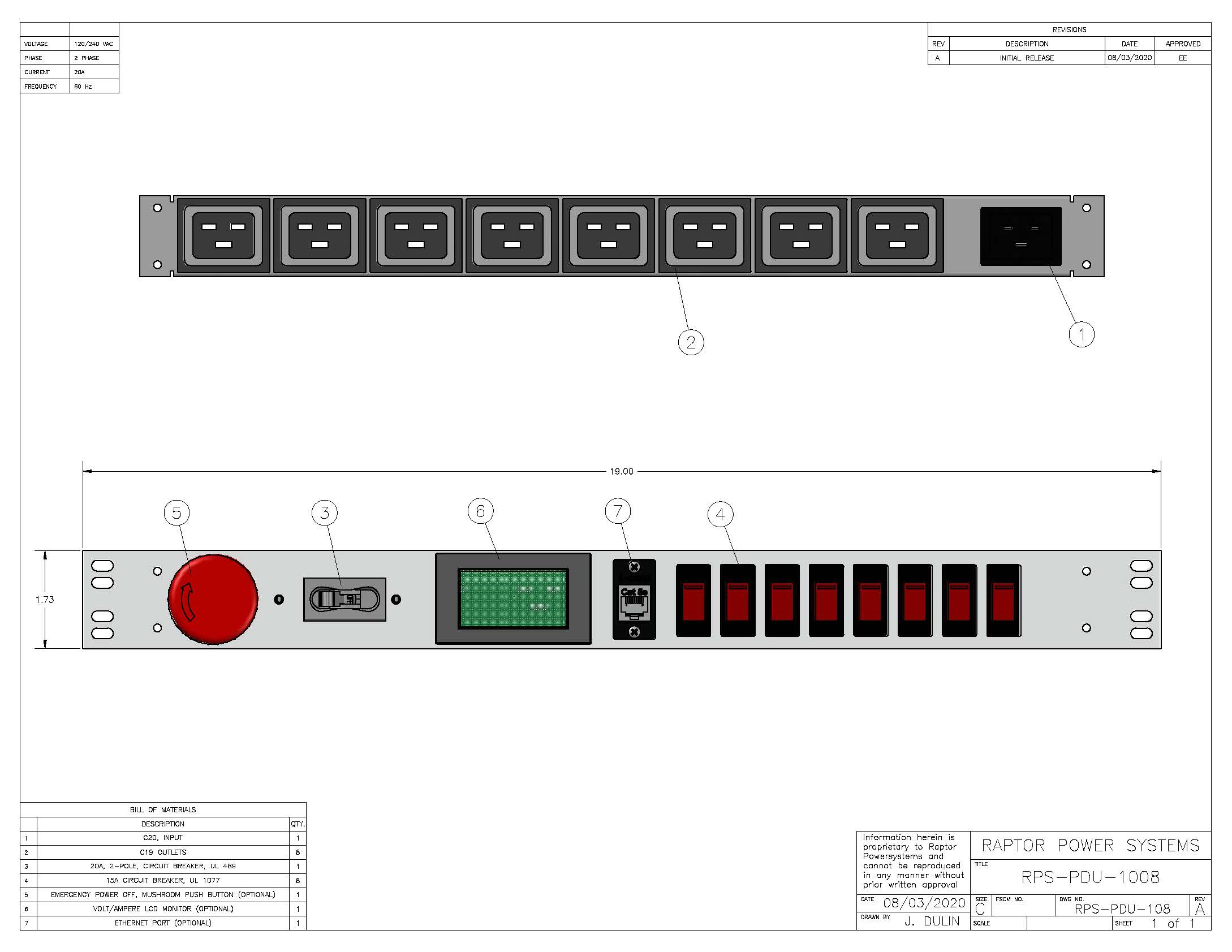

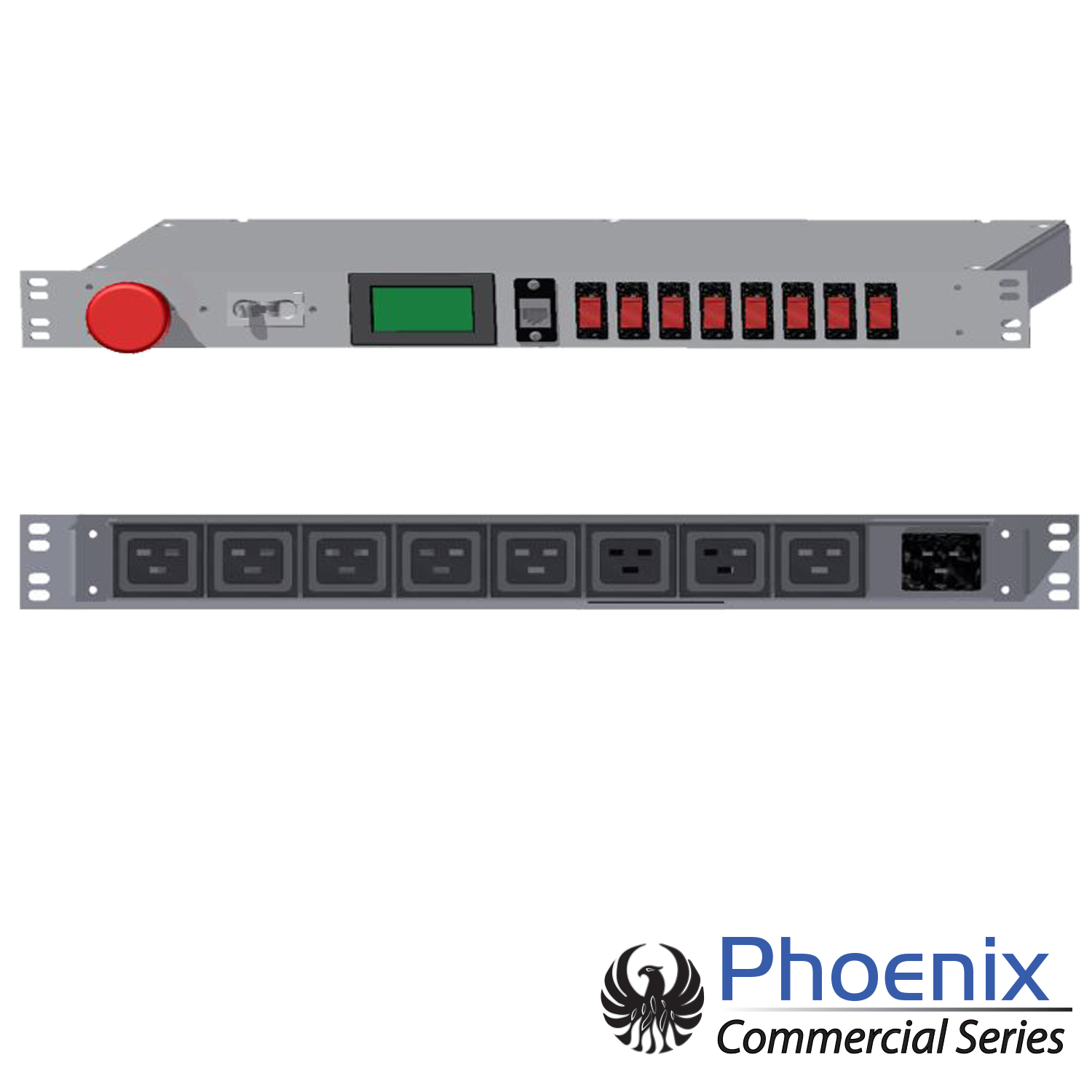

Part Number: RPS-PDU-1008

This 20A, 1U PDU has 10 x C-19 outlets, a C-20 inlet with a 6ft power cord,
an LCD meter to show volts and amps, and switched outputs. Optional EMI
filtering, EPO, remote control & monitoring, and compliance testing are
available.

ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure No
Enclosure Material Aluminium/Steel
Enclosure Size 1U x 8"
Enclosure Style 19in Rack Mount
INPUT SPECIFICATIONS
Frequency 60Hz
Input Breaker UL Compliance UL 489
Input Circuit Protection Switched 20 Amp Circuit Breaker
Input Voltage 120VAC Single Phase; 240VAC Single Phase
Lightning Protection (MOV) No
Phase Single Phase (line, neutral, ground)
Power Cord 6ft SOOW
Total Current 20 Amps
Input Connector C-20
OUTPUT SPECIFICATIONS
Output Banking Scheme 1 Outlet per Circuit Breaker
Output Breaker UL Compliance UL 1077
Output Circuit Protection 10 x 15 Amp Switched Circuit Breakers
Output Connectors 10 x C-19
Output Phase Single Phase (line, neutral, ground)
Output Voltage Synced to Input
PRODUCT DETAILS
Compliance ISO 9001:2016 Quality Controlled; Built to Meet UL 60950-1
Operating Temperature 0C - 60C

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.

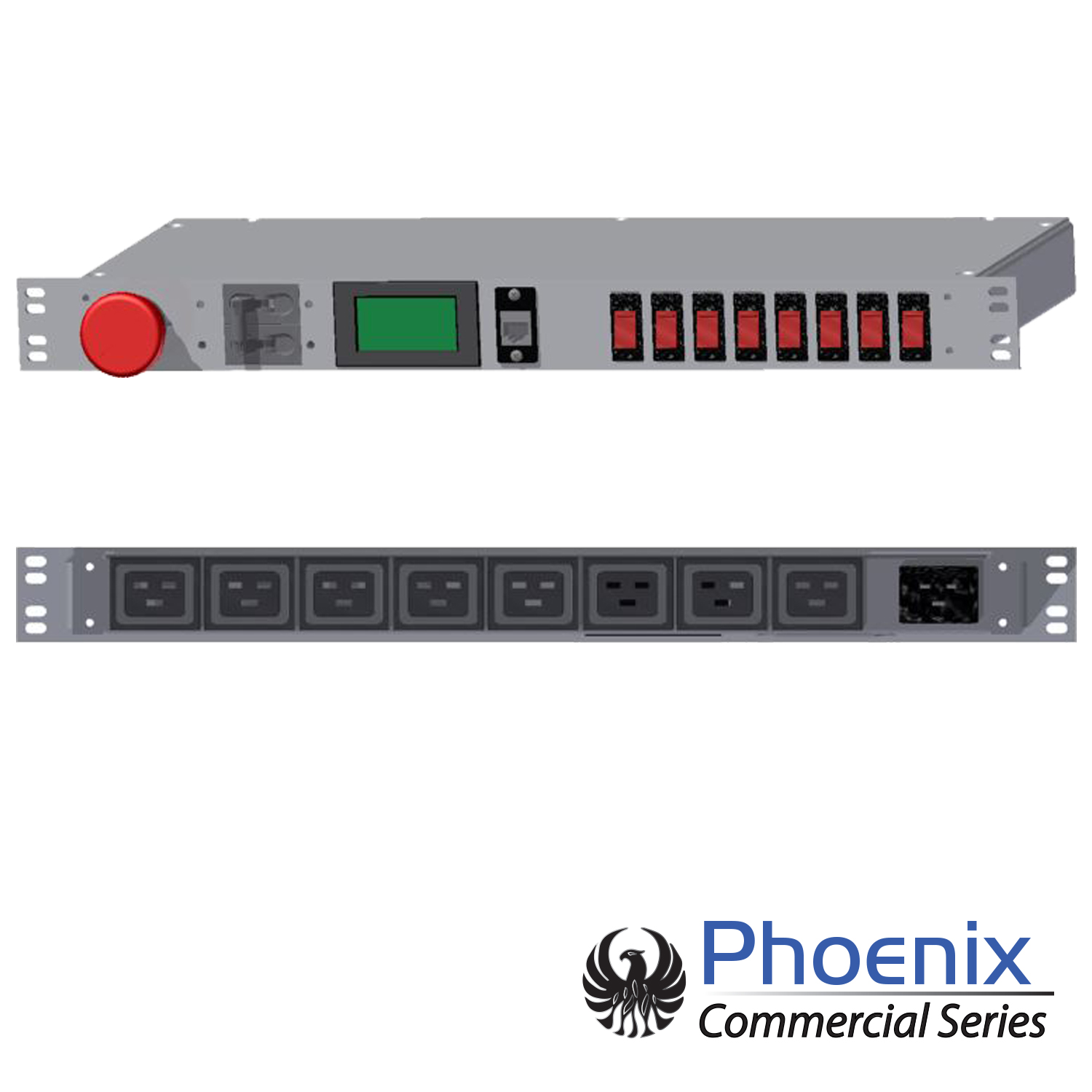

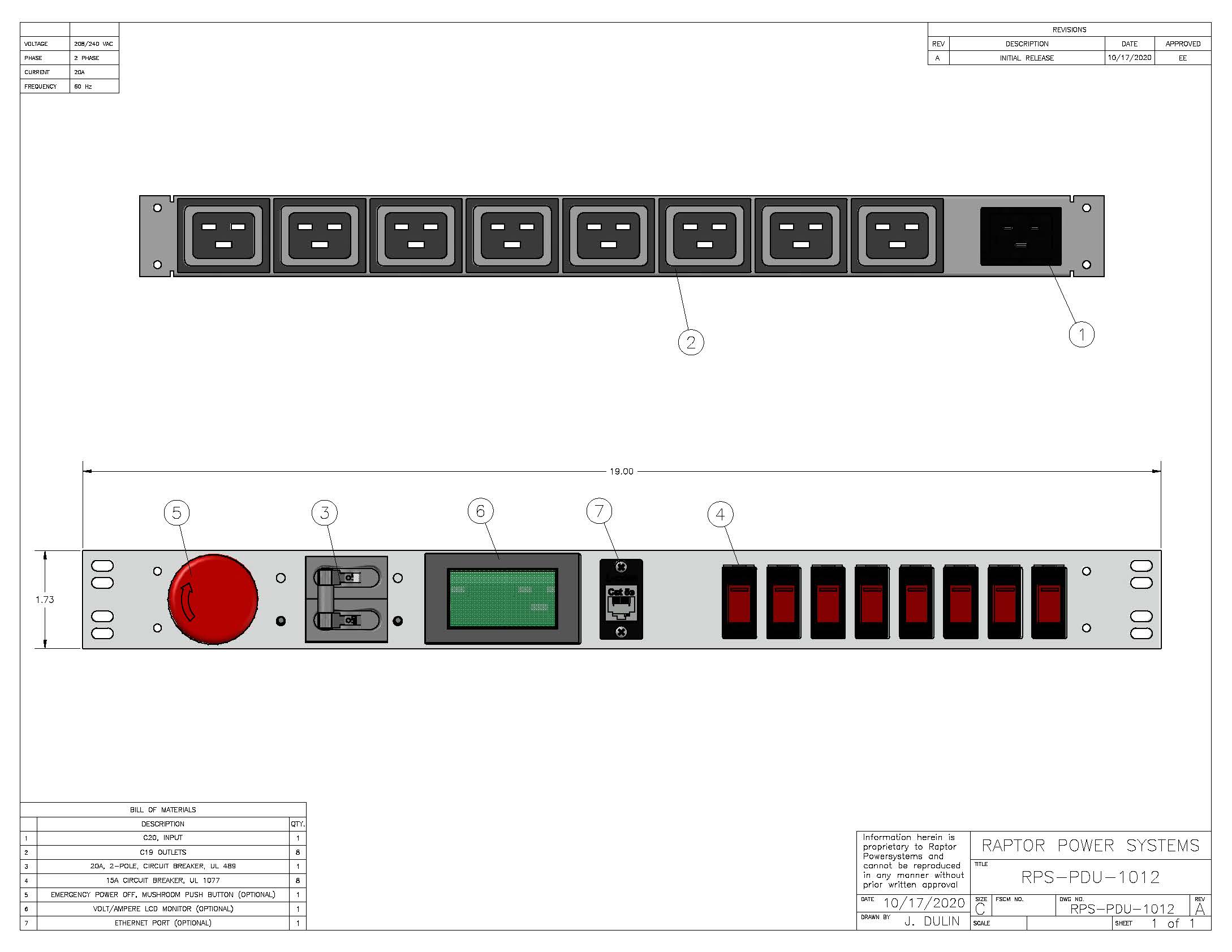

Part Number: RPS-PDU-1012

This 20A, 1U PDU has 10 x C-19 outlets, a C-20 inlet with a 6ft power cord, an LCD meter to show volts and amps, and switched outputs.  Optional EMI filtering, EPO, remote control & monitoring, and compliance testing are available.
ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure No
Enclosure Material Aluminium/Steel
Enclosure Size 1U x 8"
Enclosure Style 19in Rack Mount
INPUT SPECIFICATIONS
Frequency 60Hz
Input Breaker UL Compliance UL 489
Input Circuit Protection Switched 20 Amp Circuit Breaker
Input Voltage 208VAC Single Phase; 240VAC Single Phase
Lightning Protection (MOV) No
Phase Dual Phase (line, line, ground)
Power Cord 6ft SOOW
Total Current 20 Amps
Input Connector C-20
OUTPUT SPECIFICATIONS
Output Banking Scheme 1 Outlet per Circuit Breaker
Output Breaker UL Compliance UL 1077
Output Circuit Protection 10 x 15 Amp Switched Circuit Breakers
Output Connectors 10 x C-19
Output Phase Dual Phase (line, line, ground)
Output Voltage Synced to Input
PRODUCT DETAILS
Compliance ISO 9001:2016 Quality Controlled; Built to Meet UL 60950-1
Operating Temperature 0C - 60C

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.

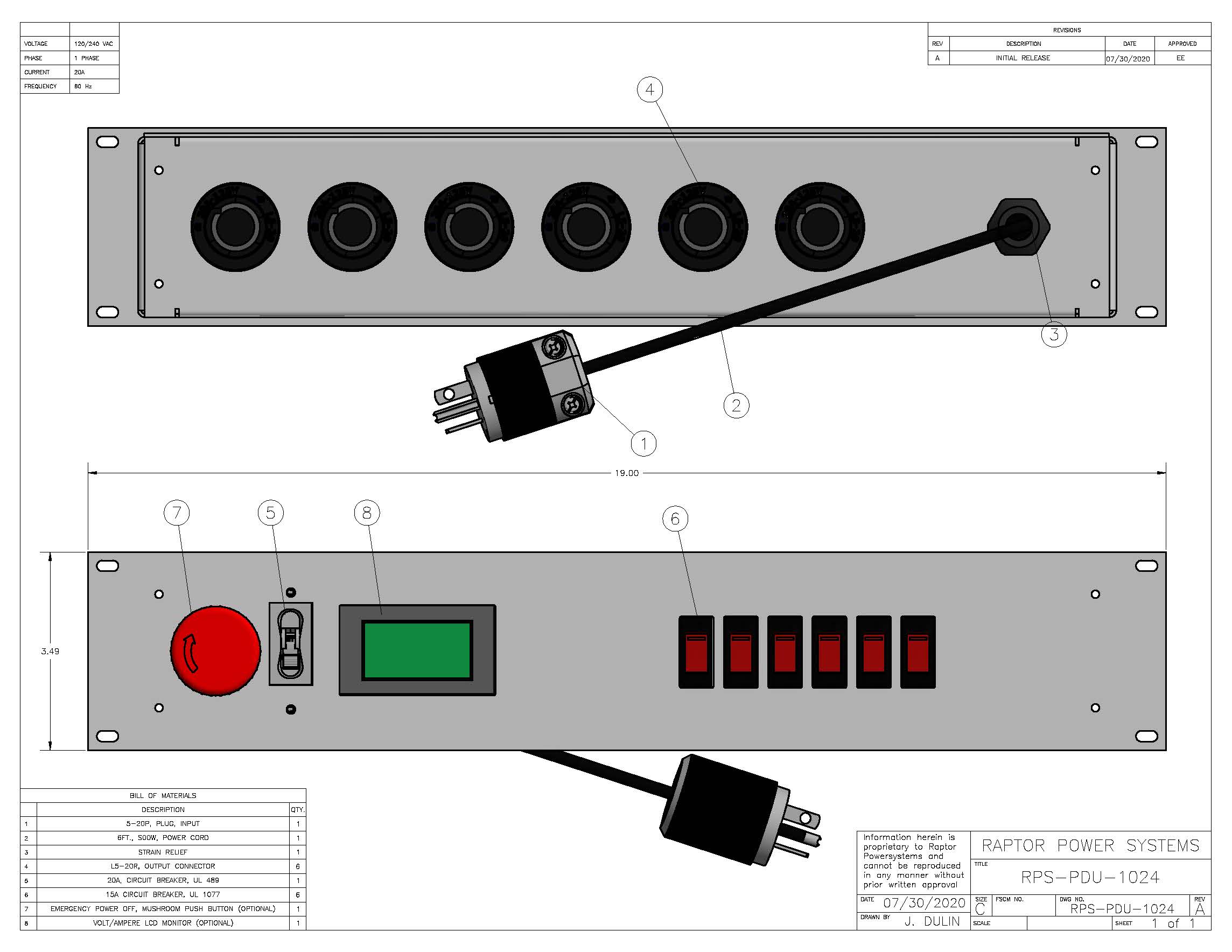

Part Number: RPS-PDU-1024

This 20A, 2U PDU has 6 x L5-20R outlets, an L5-20P inlet with a 6ft power cord, an LCD meter to show volts and amps, and switched outputs.  Optional EMI filtering, EPO, remote control & monitoring, and compliance testing are available.
ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure No
Enclosure Material Aluminium/Steel
Enclosure Size 2U x 12"
Enclosure Style 19in Rack Mount
INPUT SPECIFICATIONS
Frequency 60Hz
Input Breaker UL Compliance UL 489
Input Circuit Protection Switched 20 Amp Circuit Breaker
Input Voltage 120VAC Single Phase; 240VAC Single Phase
Lightning Protection (MOV) No
Phase Single Phase (line, neutral, ground)
Power Cord 6ft SOOW
Total Current 20 Amps
Input Connector L5-20P
OUTPUT SPECIFICATIONS
Output Banking Scheme 1 Outlet per Circuit Breaker
Output Breaker UL Compliance UL 1077
Output Circuit Protection 6 x 20 Amp Switched Circuit Breakers
Output Connectors 6 x L5-20R
Output Phase Single Phase (line, neutral, ground)
Output Voltage Synced to Input
PRODUCT DETAILS
Compliance ISO 9001:2016 Quality Controlled; Built to Meet UL 60950-1
Operating Temperature 0C - 60C
TAA Compliant No

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.

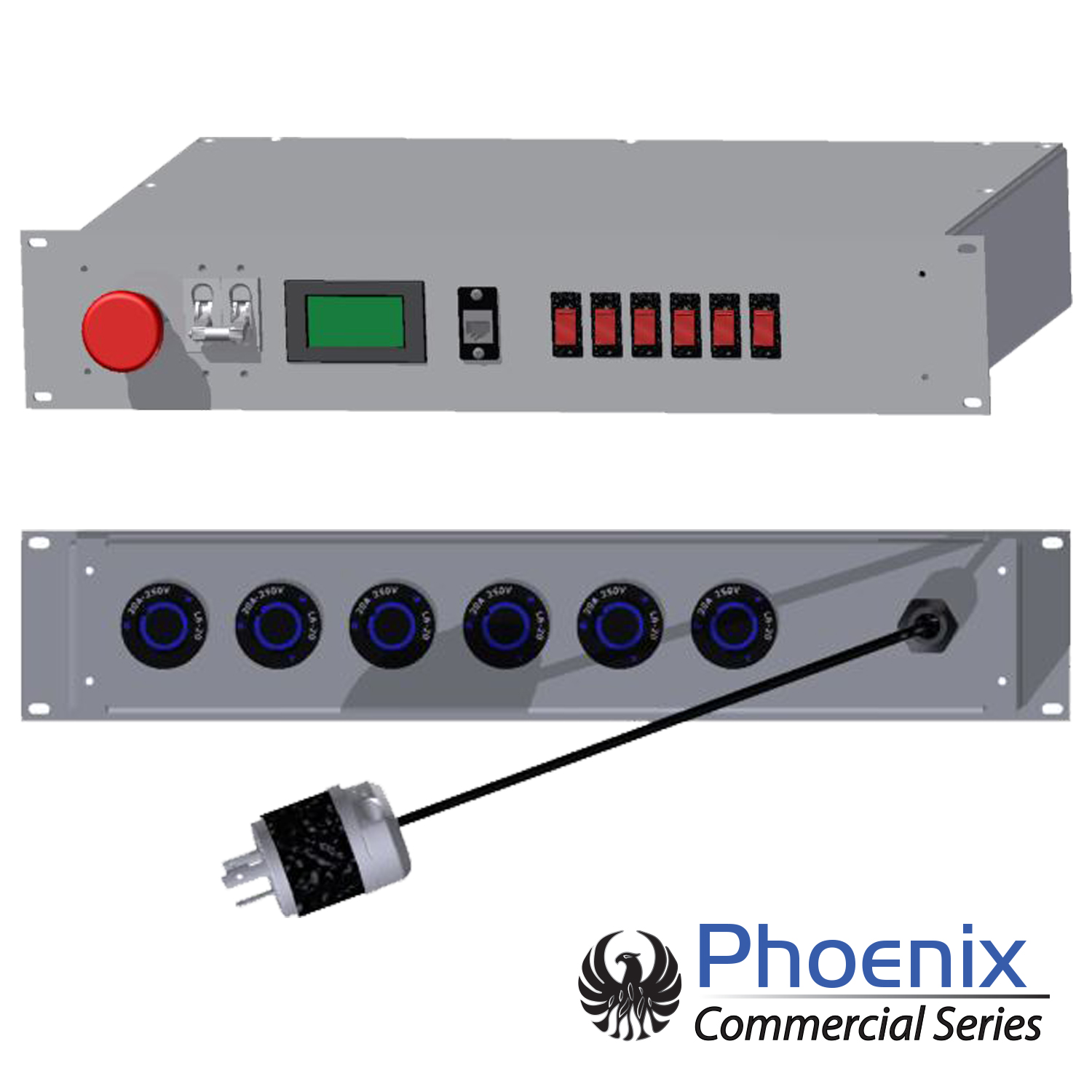

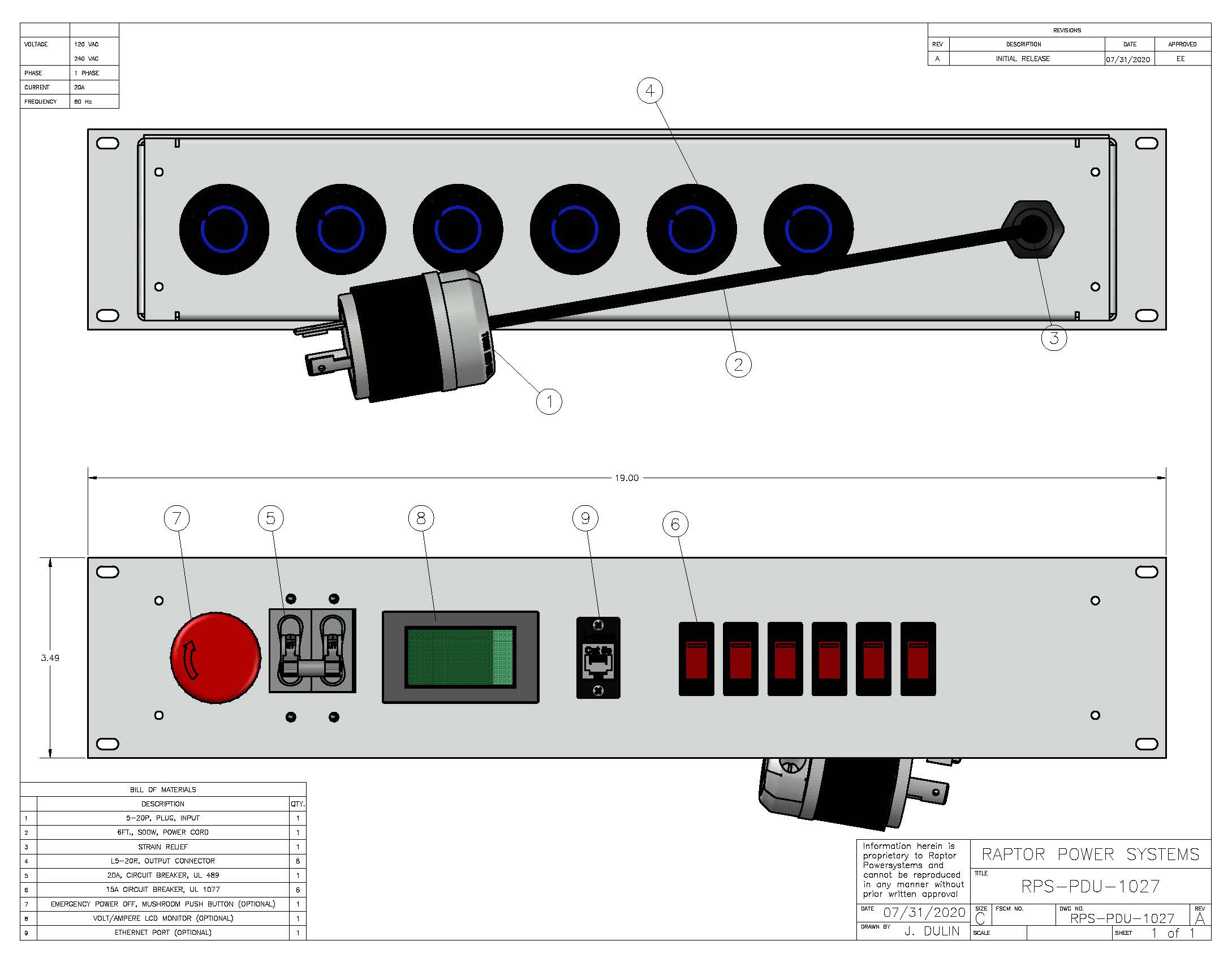

Part Number: RPS-PDU-1027

This 20A, 2U PDU has 6 x L6-20R outlets, an L6-20P inlet with a 6ft power cord, an LCD meter to show volts and amps, and switched outputs.  Optional EMI filtering, EPO, remote control & monitoring, and compliance testing are available.
ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure No
Enclosure Material Aluminium/Steel
Enclosure Size 2U x 12"
Enclosure Style 19in Rack Mount
INPUT SPECIFICATIONS
Frequency 60Hz
Input Breaker UL Compliance UL 489
Input Circuit Protection Switched 20 Amp Circuit Breaker
Input Voltage 120VAC Single Phase; 240VAC Single Phase
Lightning Protection (MOV) No
Phase Single Phase (line, neutral, ground)
Power Cord 6ft SOOW
Total Current 20 Amps
Input Connector L5-20P
OUTPUT SPECIFICATIONS
Output Banking Scheme 1 Outlet per Circuit Breaker
Output Breaker UL Compliance UL 1077
Output Circuit Protection 6 x 20 Amp Switched Circuit Breakers
Output Connectors 6 x L5-20R
Output Phase Single Phase (line, neutral, ground)
Output Voltage Synced to Input
PRODUCT DETAILS
Compliance ISO 9001:2016 Quality Controlled; Built to Meet UL 60950-1
Operating Temperature 0C - 60C
TAA Compliant No

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.

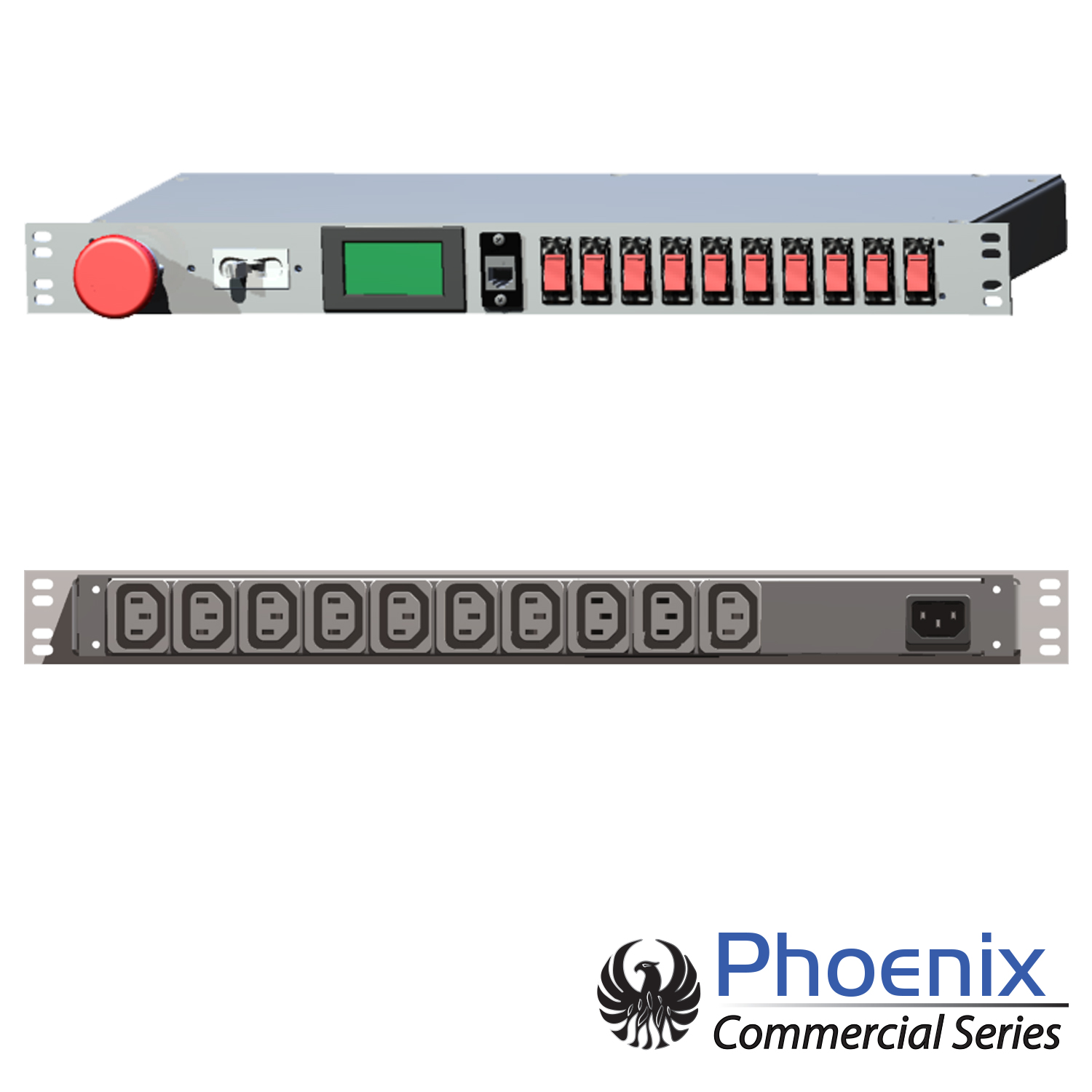

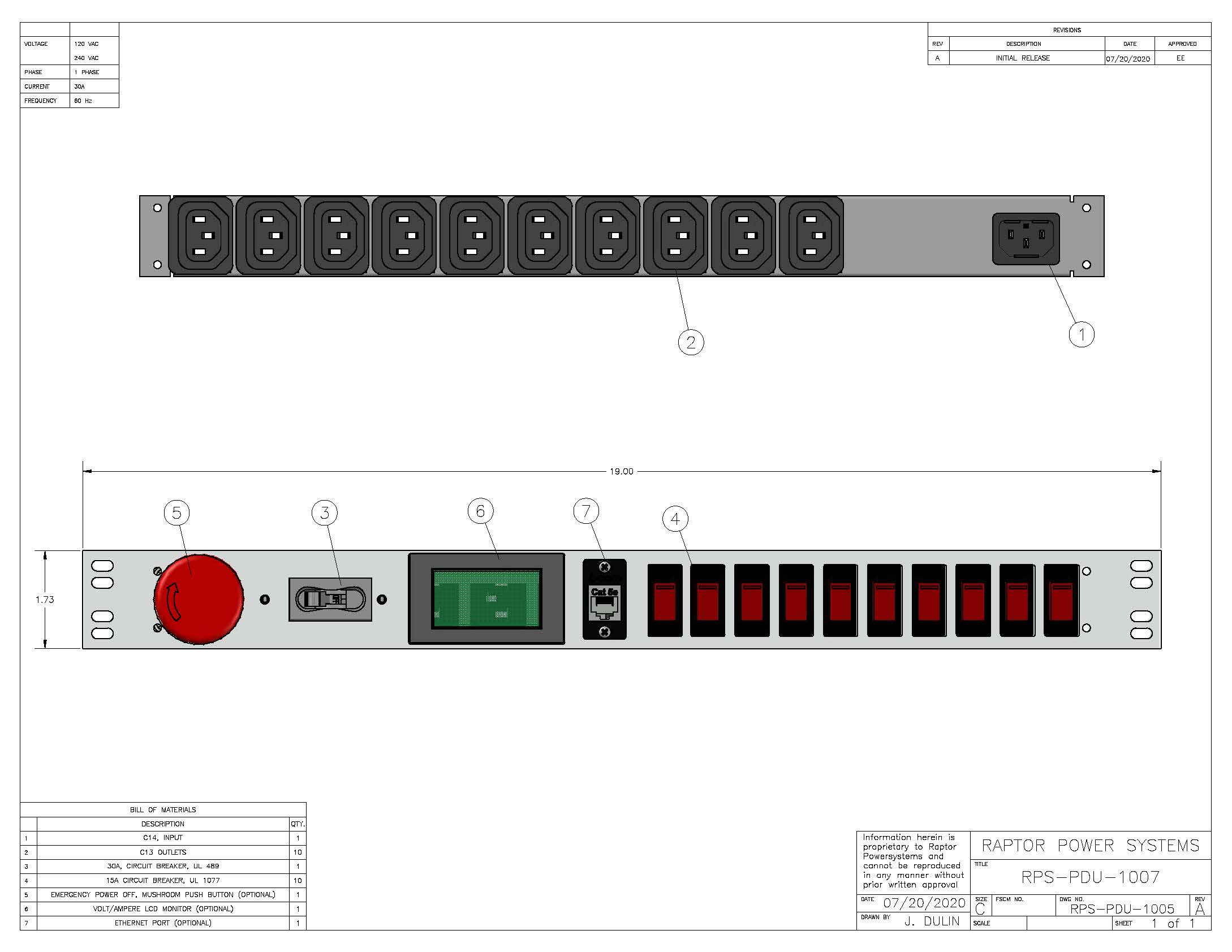

Part Number: RPS-PDU-1007

This 30A, 1U PDU has 10 x c-13 outlets, a c-14 inlet with a 6ft power cord, an LCD meter to show volts and amps, and switched outputs. Optional EMI filtering, EPO, remote control & monitoring, and compliance testing are available.
ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure No
Enclosure Material Aluminium/Steel
Enclosure Size 1U x 8"
Enclosure Style 19in Rack Mount
INPUT SPECIFICATIONS
Frequency 60Hz
Input Breaker UL Compliance UL 489
Input Circuit Protection Switched 20 Amp Circuit Breaker
Input Voltage 120VAC Single Phase; 240VAC Single Phase
Lightning Protection (MOV) No
Phase Single Phase (line, neutral, ground)
Power Cord 6ft SOOW
Total Current 30 Amps
Input Connector C-14
OUTPUT SPECIFICATIONS
Output Banking Scheme 1 Outlet per Circuit Breaker
Output Breaker UL Compliance ComplianceUL 1077
Output Circuit Protection 10 x 15 Amp Switched Circuit Breakers
Output Connectors 10 x C-13
Output Phase Single Phase (line, neutral, ground)
Output Voltage Synced to Input
PRODUCT DETAILS
Compliance ISO 9001:2016 Quality Controlled; Built to Meet UL 60950-1
Operating Temperature 0C - 60C

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.

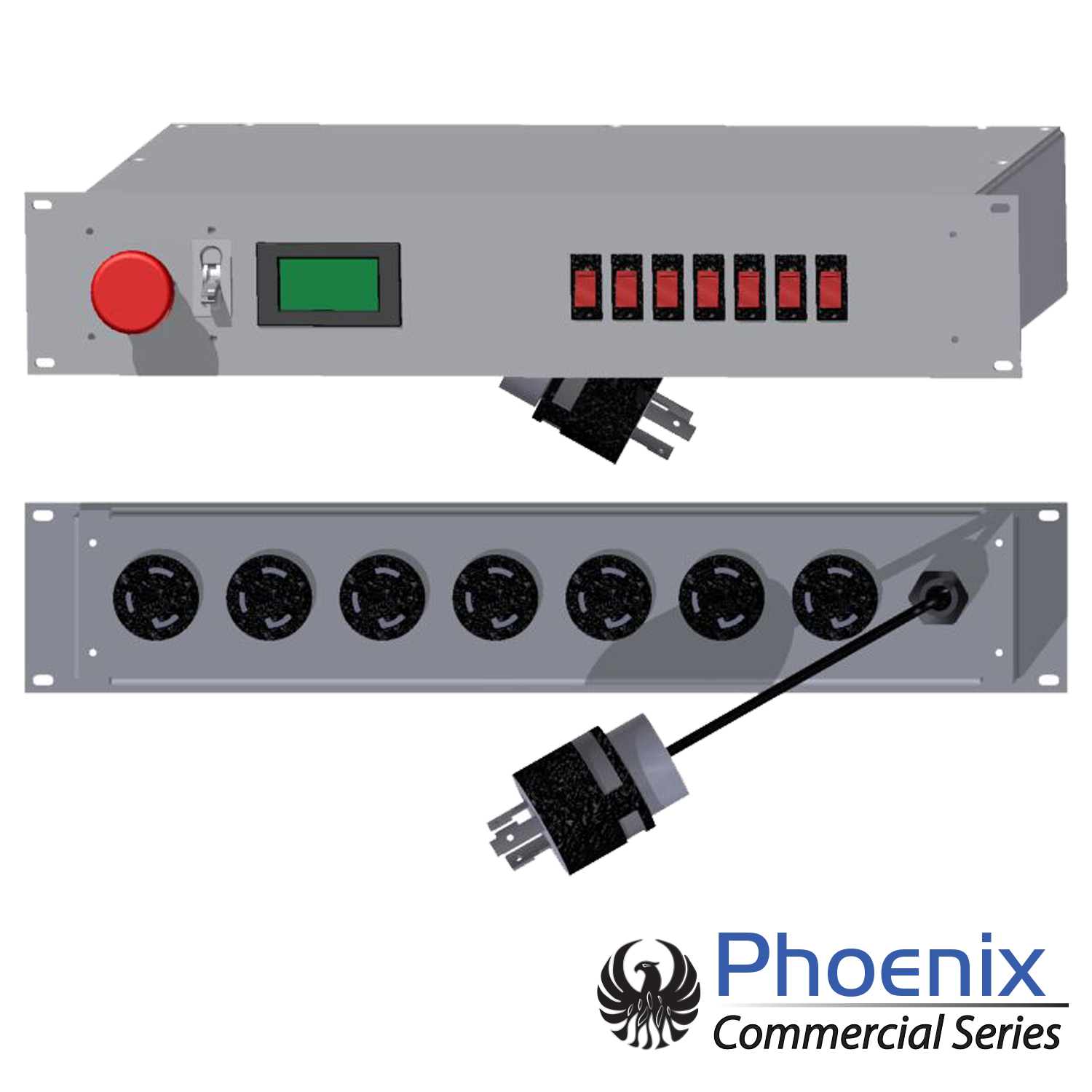

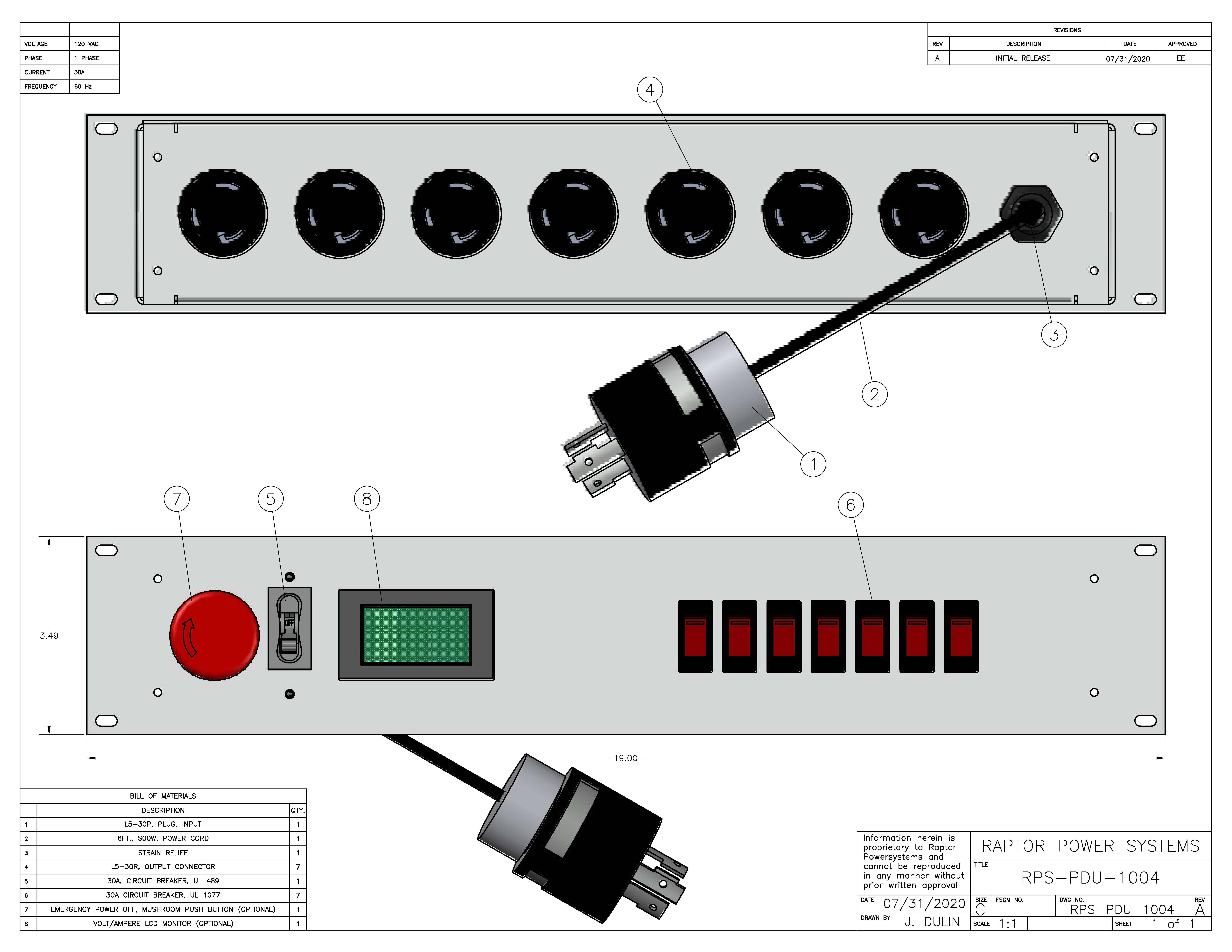

Part Number: RPS-PDU-1004

This 30A, 2U PDU has 7 x 5-30R outlets, a 5-30P plug on 6ft power cord, an LCD meter to show volts and amps, and switched outputs. Optional EMI filtering, EPO, remote control & monitoring, and compliance testing are available.
ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure No
Enclosure Material Aluminium/Steel
Enclosure Size 1U x 8"
Enclosure Style 19in Rack Mount
INPUT SPECIFICATIONS
Frequency 60Hz
Input Breaker UL Compliance UL 489
Input Circuit Protection Switched 30 Amp Circuit Breaker
Input Voltage 120VAC Single Phase
Lightning Protection (MOV) No
Phase Single Phase (line, neutral, ground)
Power Cord 6ft SOOW
Total Current 30 Amps
Input Connector 5-30P
OUTPUT SPECIFICATIONS
Output Banking Scheme 1 Outlet per Circuit Breaker
Output Breaker UL Compliance UL 1077
Output Circuit Protection 7 x 30 Amp Switched Circuit Breakers
Output Connectors 7 x 5-30R
Output Phase Single Phase (line, neutral, ground)
Output Voltage Synced to Input
PRODUCT DETAILS
Compliance ISO 9001:2016 Quality Controlled; Built to Meet UL 60950-1
Operating Temperature 0C - 60C

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.

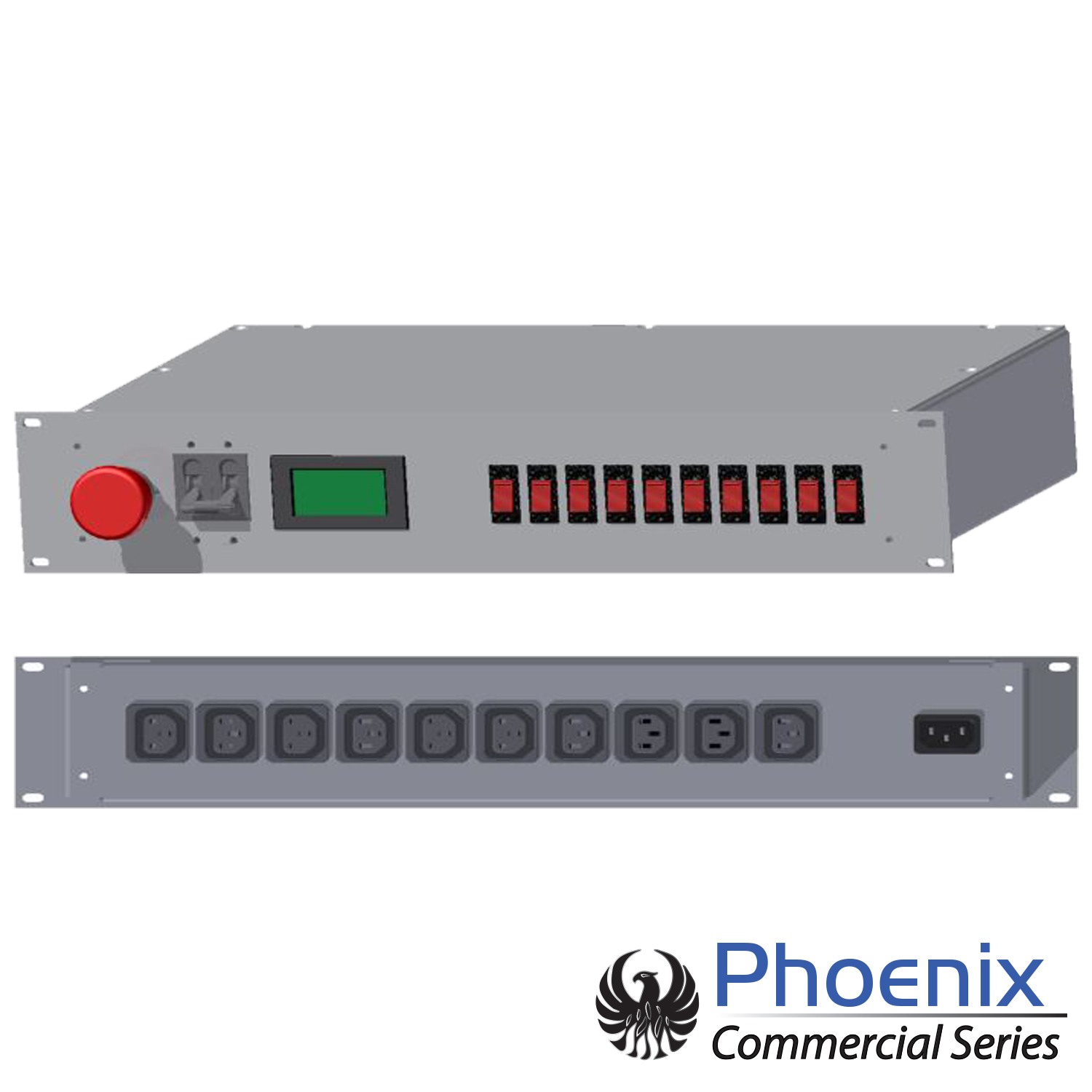

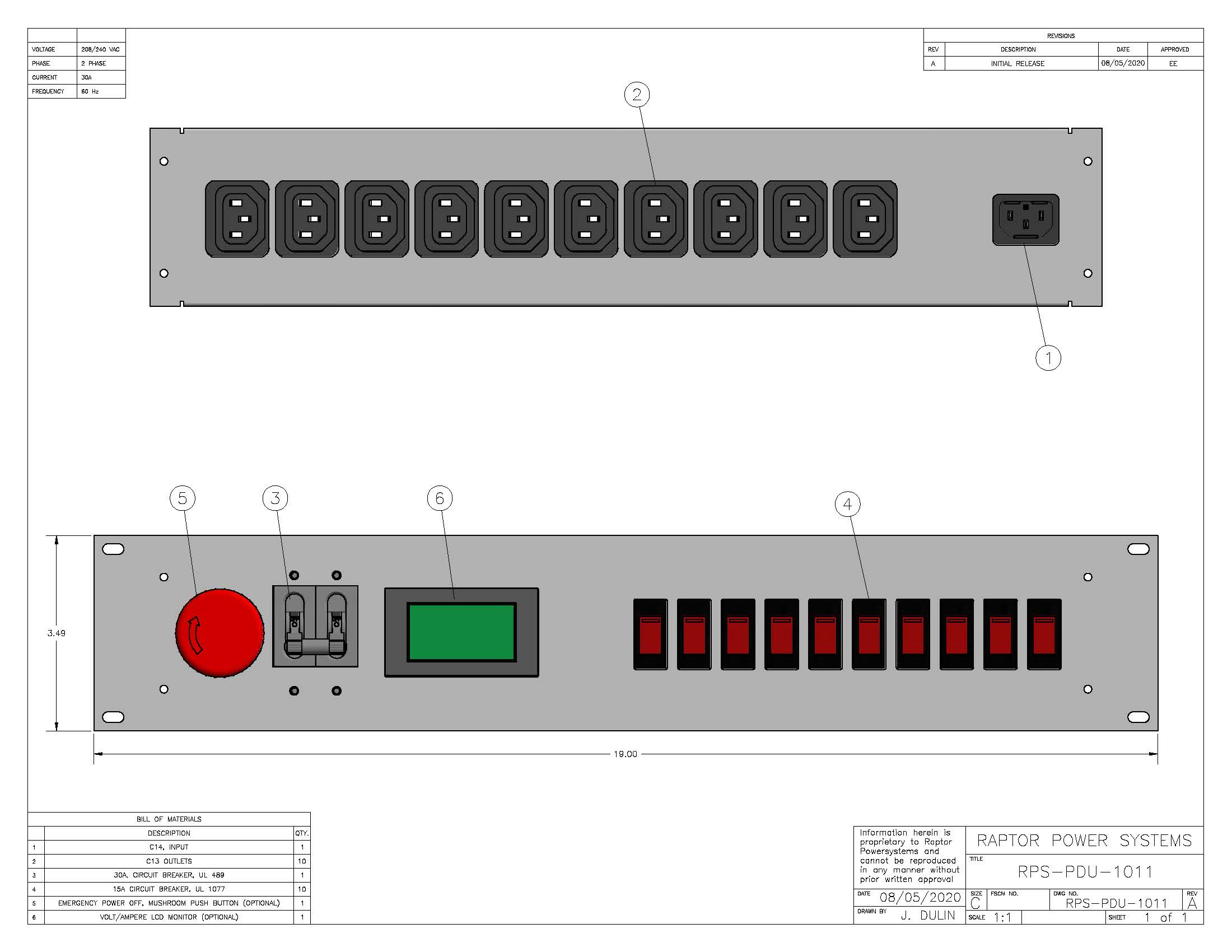

Part Number: RPS-PDU-1011

This 30A, 1U PDU has 10 x c-13 outlets, a c-14 inlet with a 6ft power cord, an LCD meter to show volts and amps, and switched outputs.  Optional EMI filtering, EPO, remote control & monitoring, and compliance testing are available.
ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure No
Enclosure Material Aluminium/Steel
Enclosure Size 1U x 8"
Enclosure Style 19in Rack Mount
INPUT SPECIFICATIONS
Frequency 60Hz
Input Breaker UL Compliance UL 489
Input Circuit Protection Switched 30 Amp Circuit Breaker
Input Voltage 208VAC Single Phase; 240VAC Single Phase
Lightning Protection (MOV) No
Phase Dual Phase (line, line, ground)
Power Cord 6ft SOOW
Total Current 30 Amps
Input Connector C-14
OUTPUT SPECIFICATIONS
Output Banking Scheme 1 Outlet per Circuit Breaker
Output Breaker UL Compliance UL 1077
Output Circuit Protection 10 x 15 Amp Switched Circuit Breakers
Output Connectors 10 x C-13
Output Phase Dual Phase (line, line, ground)
Output Voltage Synced to Input
PRODUCT DETAILS
Compliance ISO 9001:2016 Quality Controlled; Built to Meet UL 60950-1
Operating Temperature 0C - 60C

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.

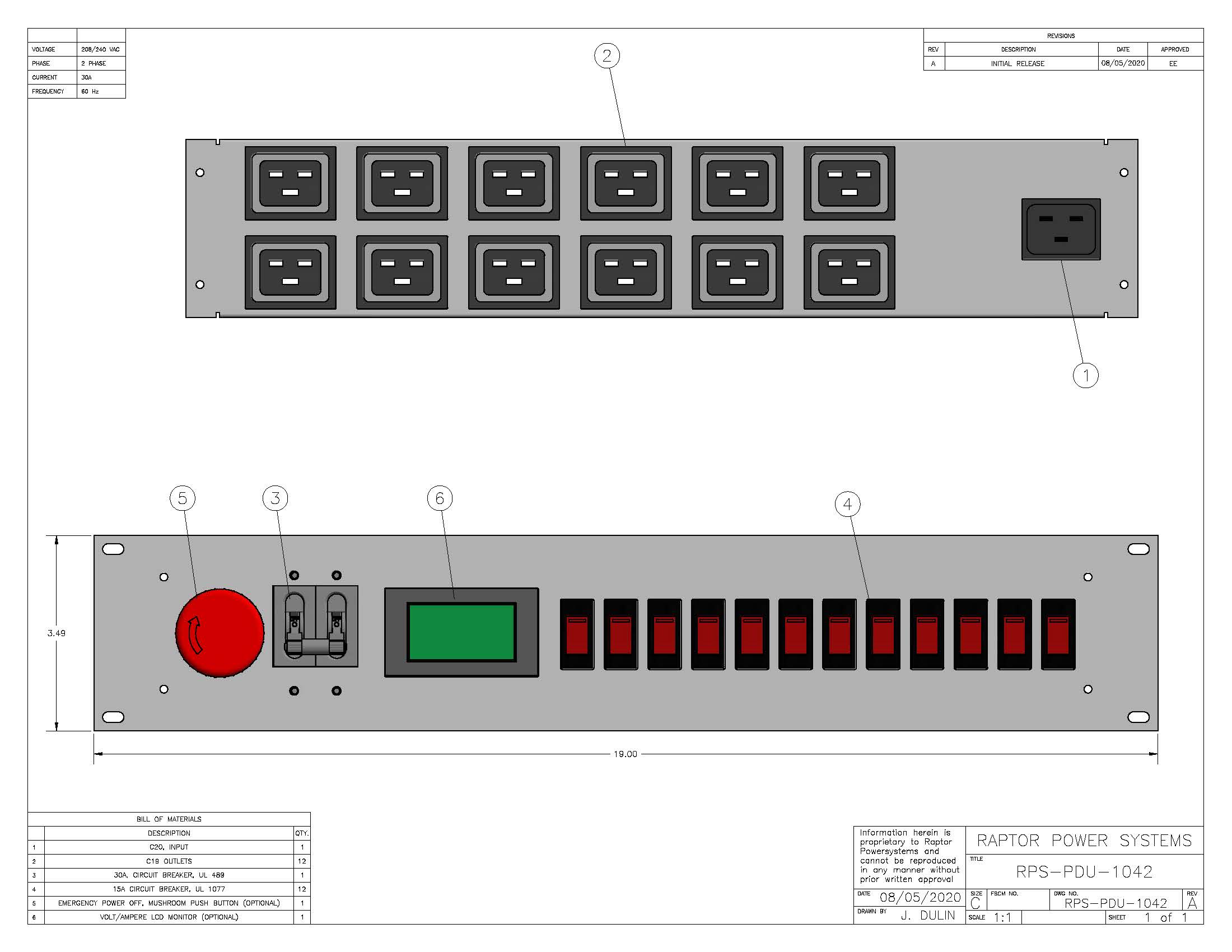

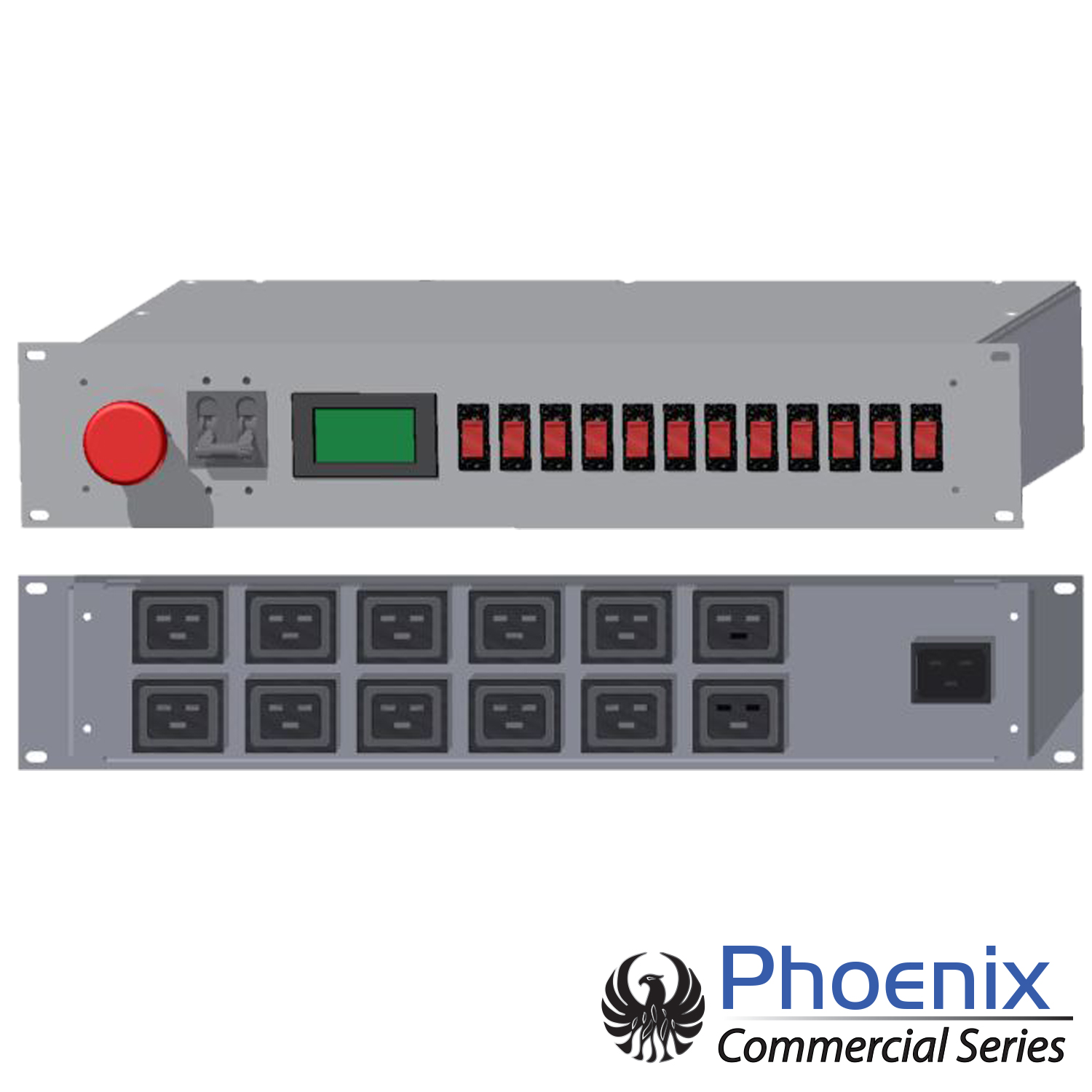

Part Number: RPS-PDU-1042

This 30A, 2U PDU has 12 x C-19 outlets, an L6-30P plug with a 6ft power cord, an LCD meter to show volts and amps, and switched outputs.  Optional EMI filtering, EPO, remote control & monitoring, and compliance testing are available.
ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure No
Enclosure Material 2U x 8"
Enclosure Size 2U x 8"
Enclosure Style 19in Rack Mount
INPUT SPECIFICATIONS
Frequency 60Hz
Input Breaker UL Compliance UL 489
Input Circuit Protection Switched 30 Amp Circuit Breaker
Input Voltage 208VAC Single Phase; 240VAC Single Phase
Lightning Protection (MOV) No
Phase Dual Phase (line, line, ground)
Power Cord 6ft SOOW
Total Current 30 Amps
Input Connector C-20
OUTPUT SPECIFICATIONS
Output Banking Scheme 1 Outlet per Circuit Breaker
Output Breaker UL Compliance UL 1077
Output Circuit Protection 12 x 15 Amp Switched Circuit Breakers
Output Connectors 12 x C-19
Output Phase Dual Phase (line, line, ground)
Output Voltage Synced to Input
PRODUCT DETAILS
Compliance ISO 9001:2016 Quality Controlled; Built to Meet UL 60950-1
Operating Temperature 0C - 60C
TAA Compliant No

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.

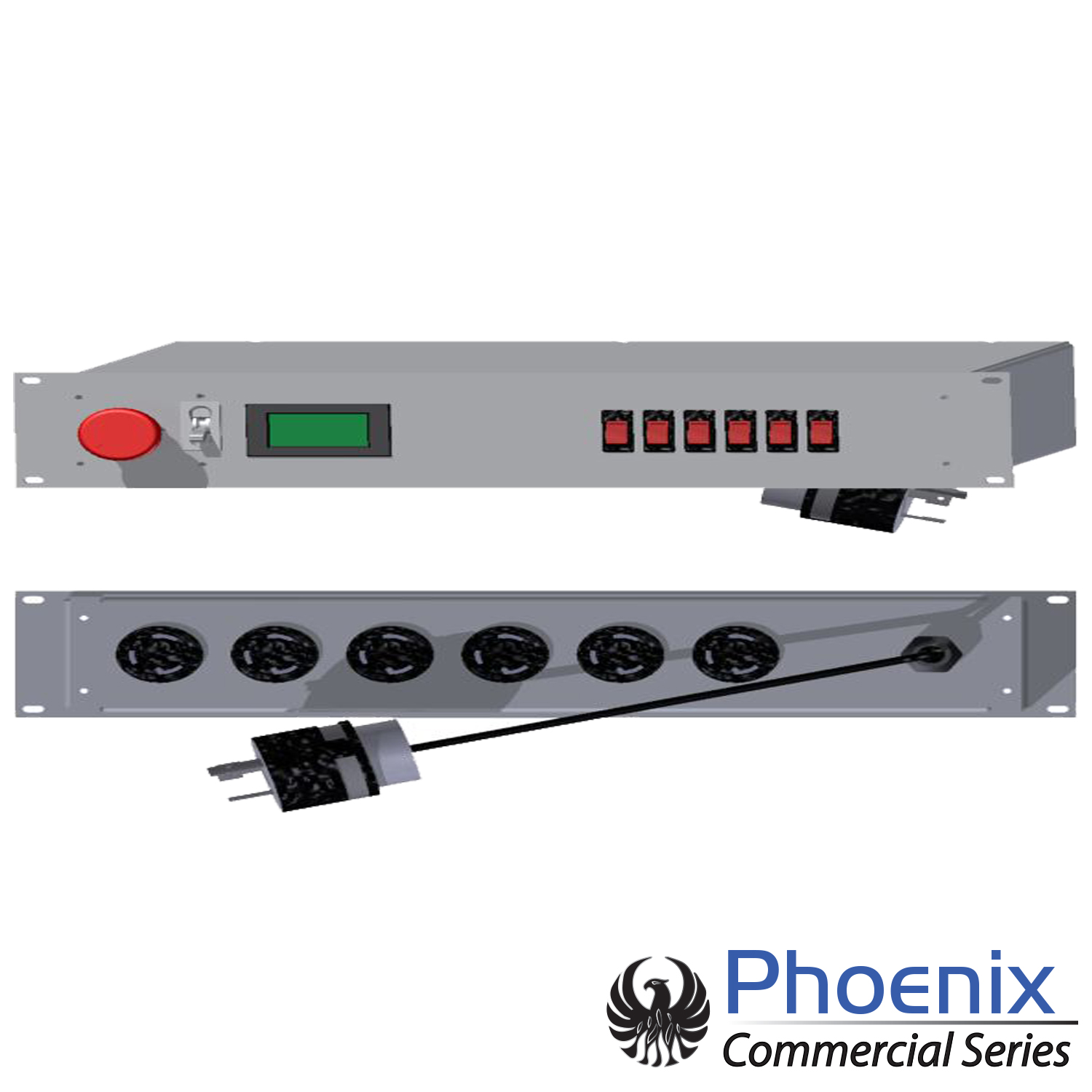

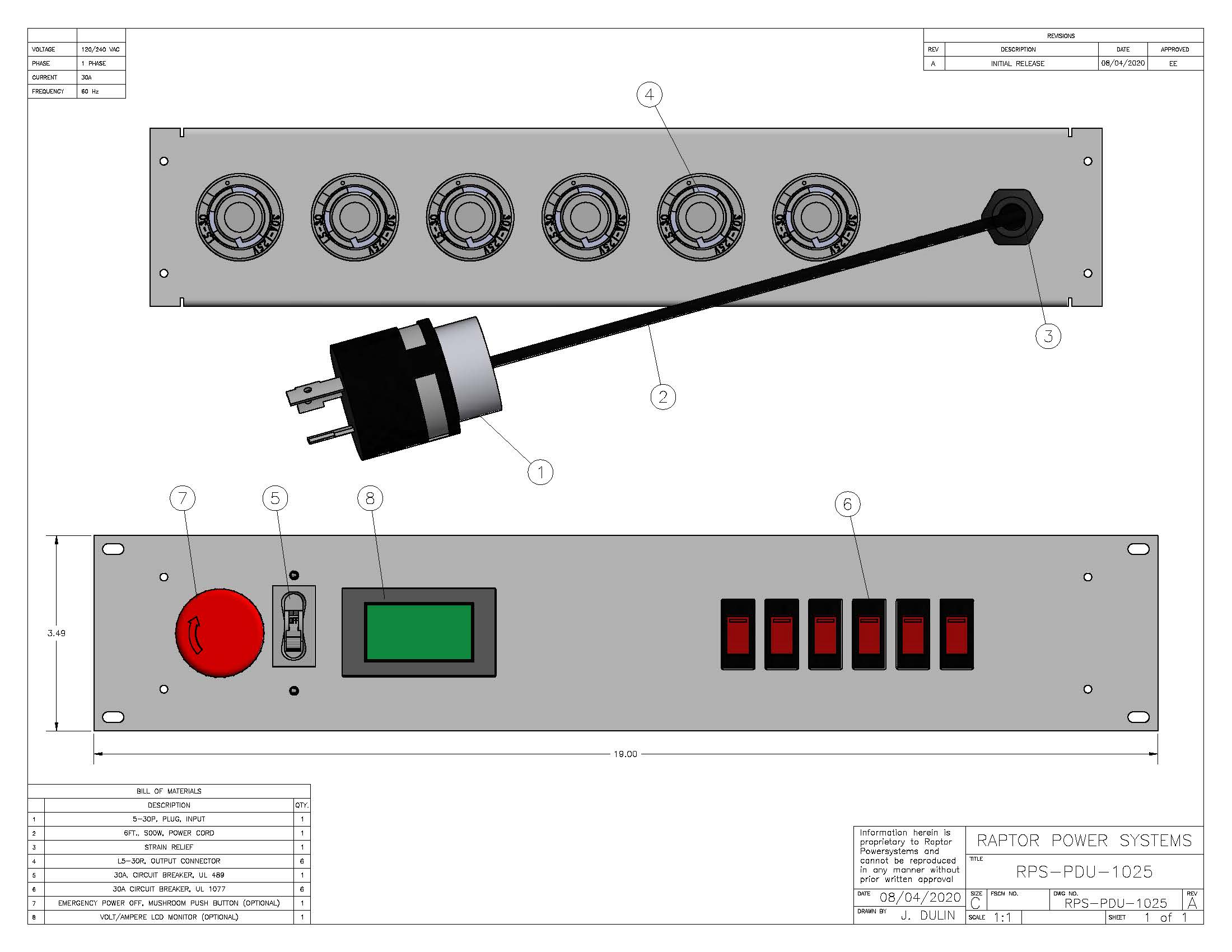

Part Number: RPS-PDU-1025

This 30A, 2U PDU has 6 x L5-30R outlets, an L5-30P inlet with a 6ft power cord, an LCD meter to show volts and amps, and switched outputs.  Optional EMI filtering, EPO, remote control & monitoring, and compliance testing are available.
ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure No
Enclosure Material Aluminium/Steel
Enclosure Size 2U x 12"
Enclosure Style 19in Rack Mount
INPUT SPECIFICATIONS
Frequency 60Hz
Input Breaker UL Compliance UL 489
Input Circuit Protection Switched 30 Amp Circuit Breaker
Input Voltage 120VAC Single Phase; 240VAC Single Phase
Lightning Protection (MOV) No
Phase Single Phase (line, neutral, ground)
Power Cord 6ft SOOW
Total Current 30 Amps
Input Connector L5-30P
OUTPUT SPECIFICATIONS
Output Banking Scheme 1 Outlet per Circuit Breaker
Output Breaker UL Compliance UL 1077
Output Circuit Protection 6 x 30 Amp Switched Circuit Breakers
Output Connectors 6 x L5-30R
Output Phase Single Phase (line, neutral, ground)
Output Voltage Synced to Input
PRODUCT DETAILS
Compliance ISO 9001:2016 Quality Controlled; Built to Meet UL 60950-1
Operating Temperature 0C - 60C
TAA Compliant No

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.
Part Number: RPS-PDU-1026

This 20A, 2U PDU has 6 x L6-20R outlets, an L6-20P inlet with a 6ft power cord, an LCD meter to show volts and amps, and switched outputs.  Optional EMI filtering, EPO, remote control & monitoring, and compliance testing are available.
ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure No
Enclosure Material Aluminium/Steel
Enclosure Size 2U x 12"
Enclosure Style 19in Rack Mount
INPUT SPECIFICATIONS
Frequency 60Hz
Input Breaker UL Compliance UL 489
Input Circuit Protection Switched 20 Amp Circuit Breaker
Input Voltage 208VAC Single Phase; 240VAC Single Phase
Lightning Protection (MOV) No
Phase Dual Phase (line, line, ground)
Power Cord 6ft SOOW
Total Current 20 Amps
Input Connector L5-30P
OUTPUT SPECIFICATIONS
Output Banking Scheme 1 Outlet per Circuit Breaker
Output Breaker UL Compliance UL 1077
Output Circuit Protection 6 x 20 Amp Switched Circuit Breakers
Output Connectors 6 x L6-20R
Output Phase Single Phase (line, neutral, ground)
Output Voltage Synced to Input
PRODUCT DETAILS
Compliance ISO 9001:2016 Quality Controlled; Built to Meet UL 60950-1
Operating Temperature 0C - 60C
TAA Compliant No

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.

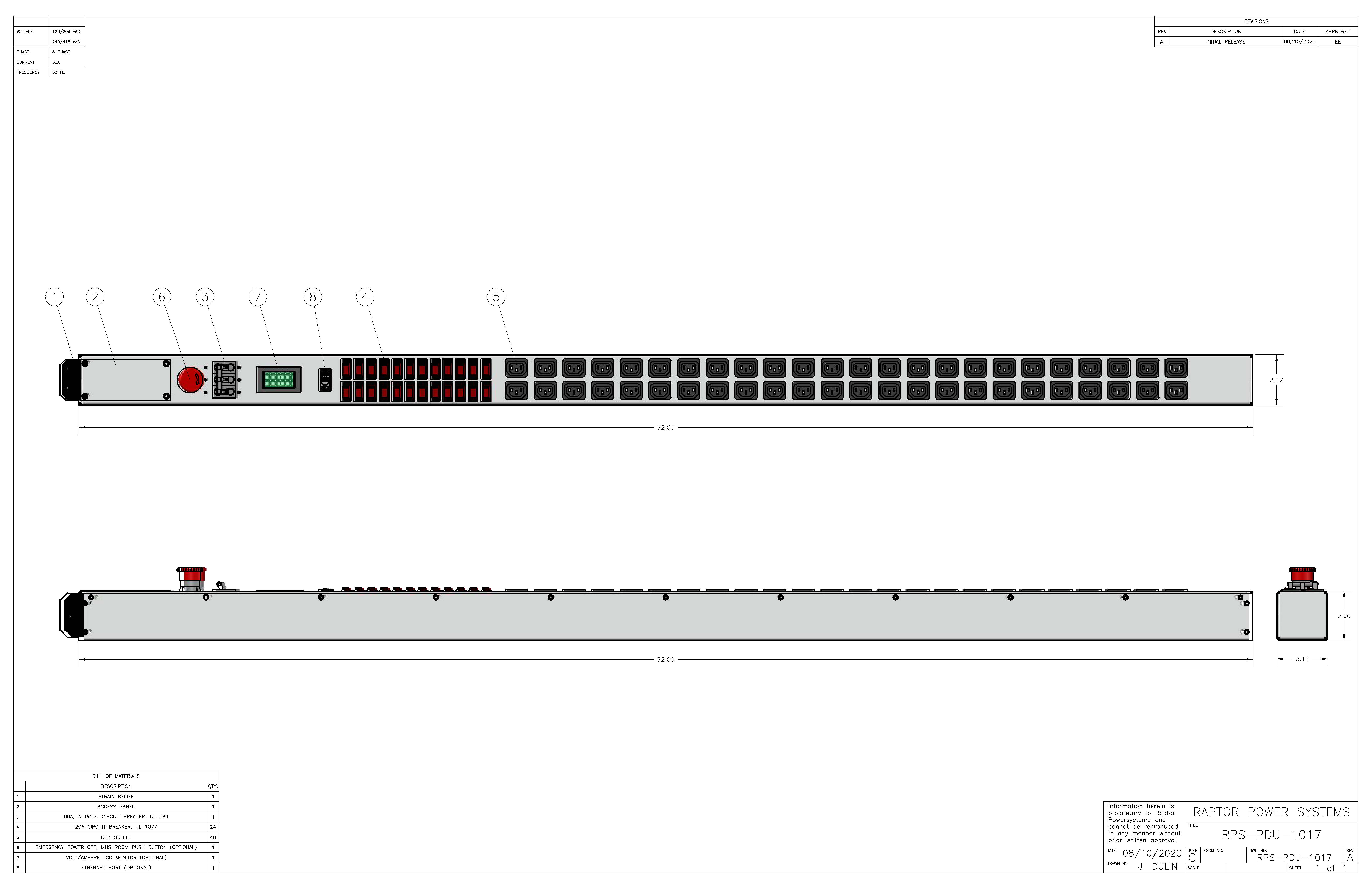

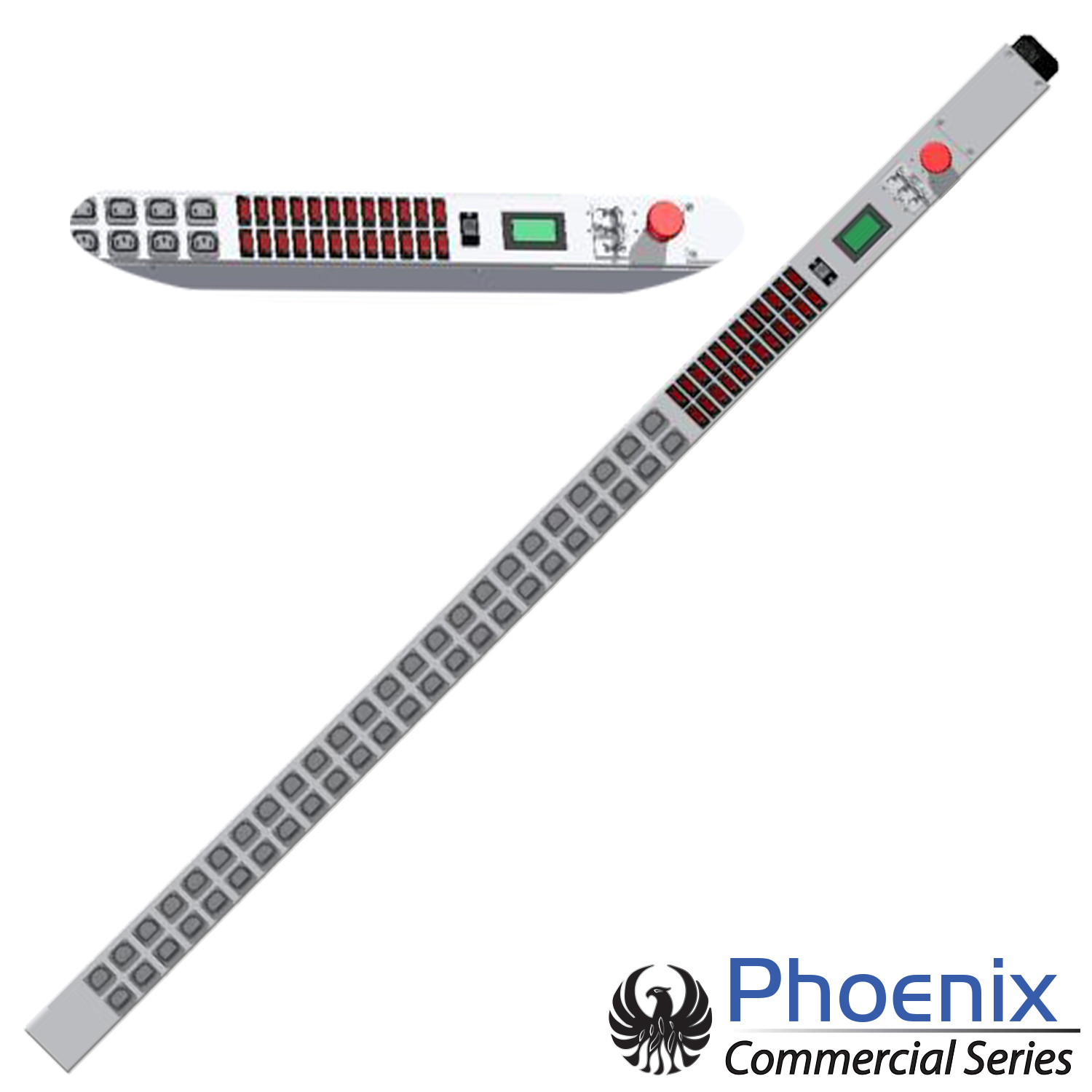

Part Number: RPS-PDU-1017

This 60A, 0U PDU has 48 x C-13 outlets, a hardwire input, and switched outputs.  Optional remote control & monitoring, and compliance testing are available.
ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure No
Enclosure Material Aluminium/Steel
Enclosure Size 0U x 72"
Enclosure Style 0U Vertical Mount
INPUT SPECIFICATIONS
Frequency 60Hz
Input Breaker UL Compliance
Input Circuit Protection None
Input Voltage 120VAC/208VAC Three Phase; 240/415VCAC Three Phase
Lightning Protection (MOV) No
Phase Three Phase WYE (line, line, line, neutral, ground)
Power Cord N/A
Total Current 60 Amps (Three Phase, 180A of Single Phase Load)
Input Connector Hardwire
OUTPUT SPECIFICATIONS
Output Banking Scheme 2 Outlets per Circuit Breaker
Output Breaker UL Compliance UL 1077
Output Circuit Protection 24 x 20 Amp Switched Circuit Breakers
Output Connectors 48 x C-13
Output Phase Single Phase (line, neutral, ground)
Output Voltage Synced to Input
PRODUCT DETAILS
Compliance ISO 9001:2016 Quality Controlled; Built to Meet UL 60950-1
Operating Temperature 0C - 60C
TAA Compliant

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.

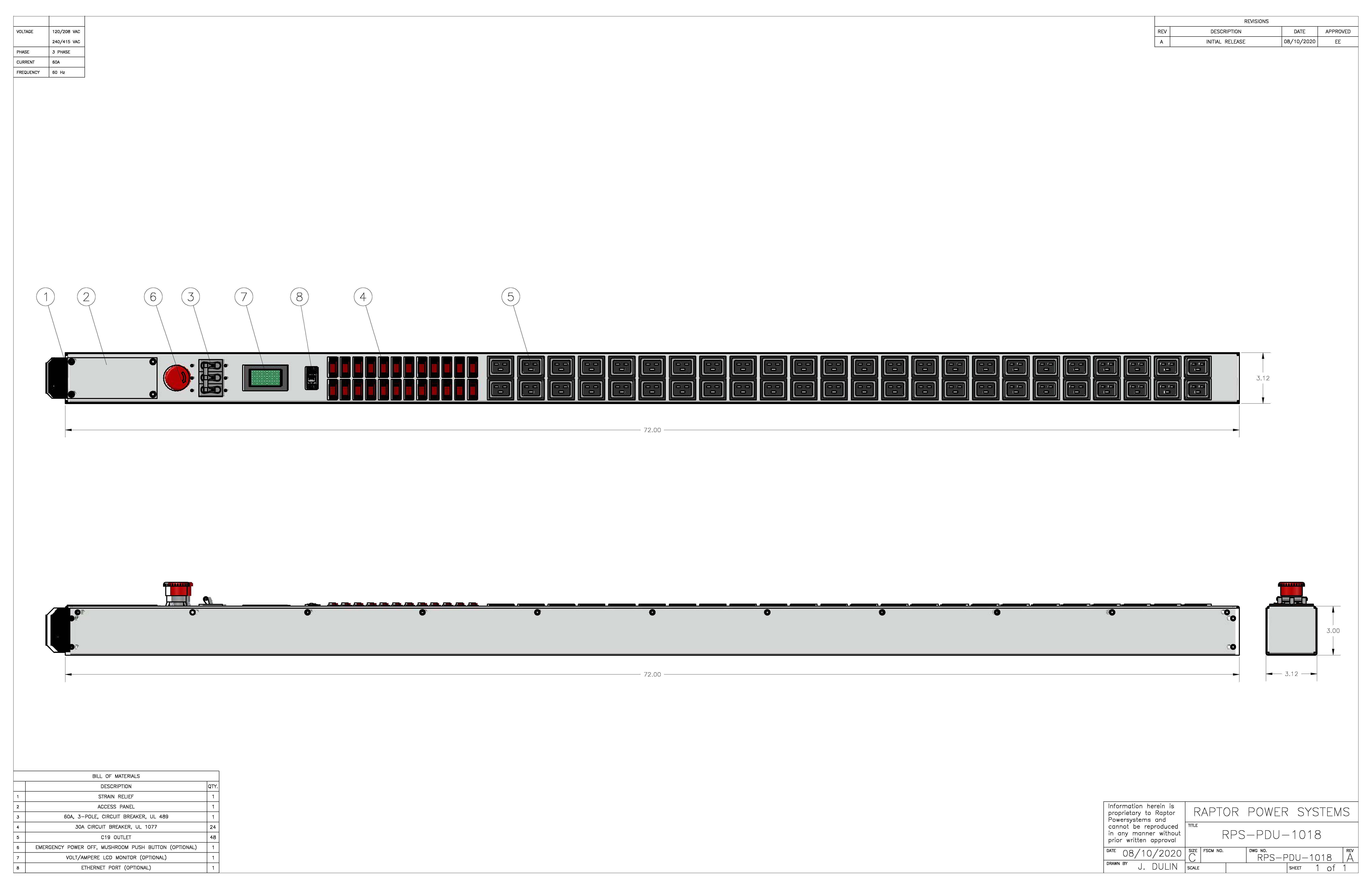

Part Number: RPS-PDU-1018

This 60A, 0U PDU has 48 x C-19 outlets, a hardwire input, and switched outputs.  Optional remote control & monitoring, and compliance testing are available.
ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure No
Enclosure Material Aluminium/Steel
Enclosure Size 0U x 72"
Enclosure Style 0U Vertical Mount
INPUT SPECIFICATIONS
Frequency 60Hz
Input Breaker UL Compliance
Input Circuit Protection None
Input Voltage 120VAC/208VAC Three Phase; 240/415VCAC Three Phase
Lightning Protection (MOV) No
Phase Three Phase WYE (line, line, line, neutral, ground)
Power Cord N/A
Total Current 60 Amps (Three Phase, 180A of Single Phase Load)
Input Connector Hardwire
OUTPUT SPECIFICATIONS
Output Banking Scheme 2 Outlets per Circuit Breaker
Output Breaker UL Compliance UL 1077
Output Circuit Protection 24 x 30 Amp Switched Circuit Breakers
Output Connectors 48 x C-19
Output Phase Single Phase (line, neutral, ground)
Output Voltage Synced to Input
PRODUCT DETAILS
Compliance ISO 9001:2016 Quality Controlled; Built to Meet UL 60950-1
Operating Temperature 0C - 60C
TAA Compliant

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.

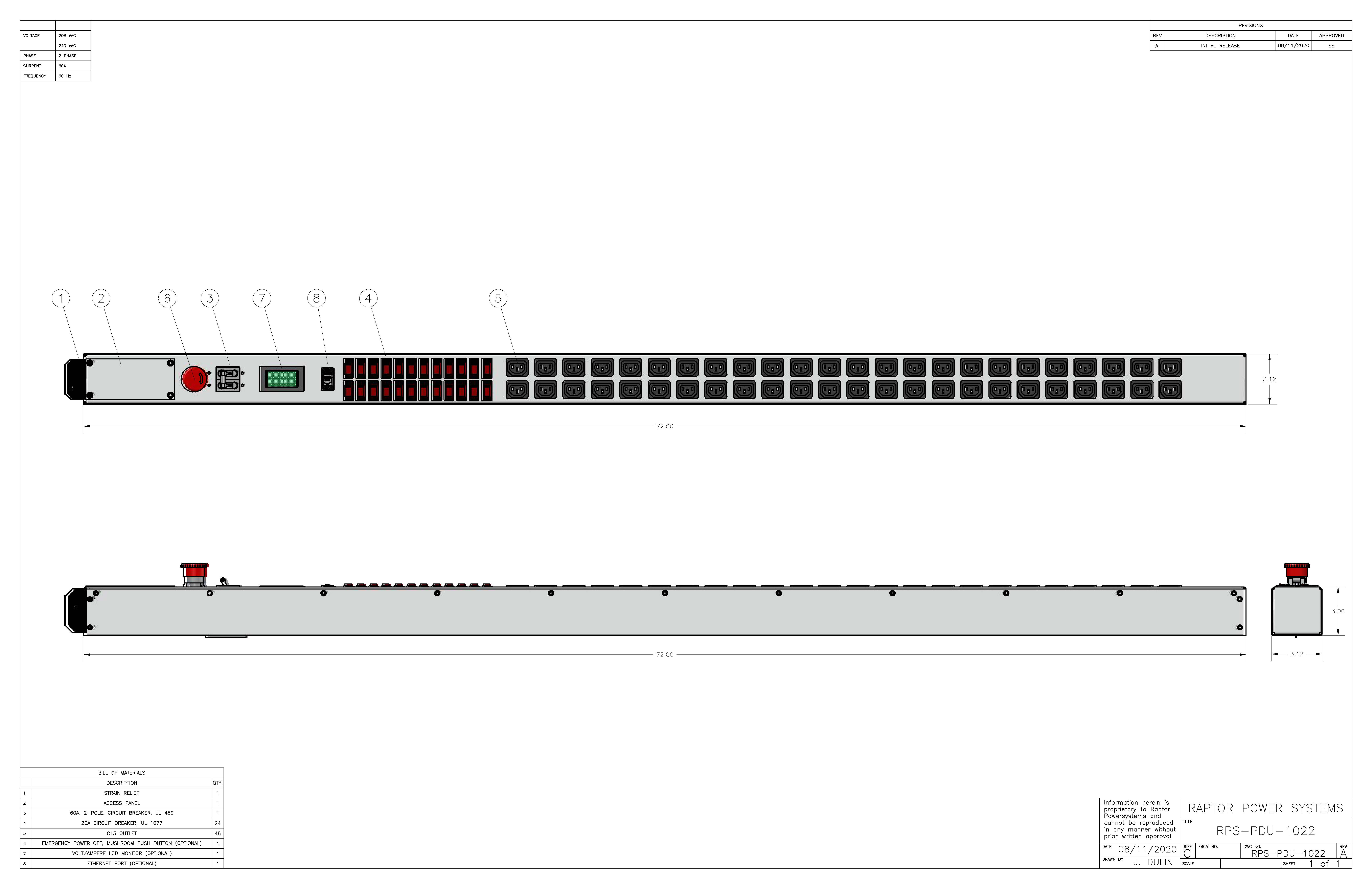

Part Number: RPS-PDU-1022

This 60A, 0U PDU has 48 x C-13 outlets, a hardwire input, and switched outputs.  Optional remote control & monitoring, and compliance testing are available.
ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure No
Enclosure Material Aluminium/Steel
Enclosure Size 0U x 72"
Enclosure Style 0U Vertical Mount
INPUT SPECIFICATIONS
Frequency 60Hz
Input Breaker UL Compliance UL 489
Input Circuit Protection Switched 60 Amp Circuit Breaker
Input Voltage 208VAC Single Phase; 240VAC Single Phase
Lightning Protection (MOV) No
Phase Dual Phase (line, line, ground)
Power Cord N/A
Total Current 60 Amps
Input Connector Hardwire
OUTPUT SPECIFICATIONS
Output Banking Scheme 2 Outlets per Circuit Breaker
Output Breaker UL Compliance UL 1077
Output Circuit Protection 24 x 20 Amp Switched Circuit Breakers
Output Connectors 48 x C-13
Output Phase Dual Phase (line, line, ground)
Output Voltage Synced to Input
PRODUCT DETAILS
Compliance ISO 9001:2016 Quality Controlled; Built to Meet UL 60950-1
Operating Temperature 0C - 60C
TAA Compliant -

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.

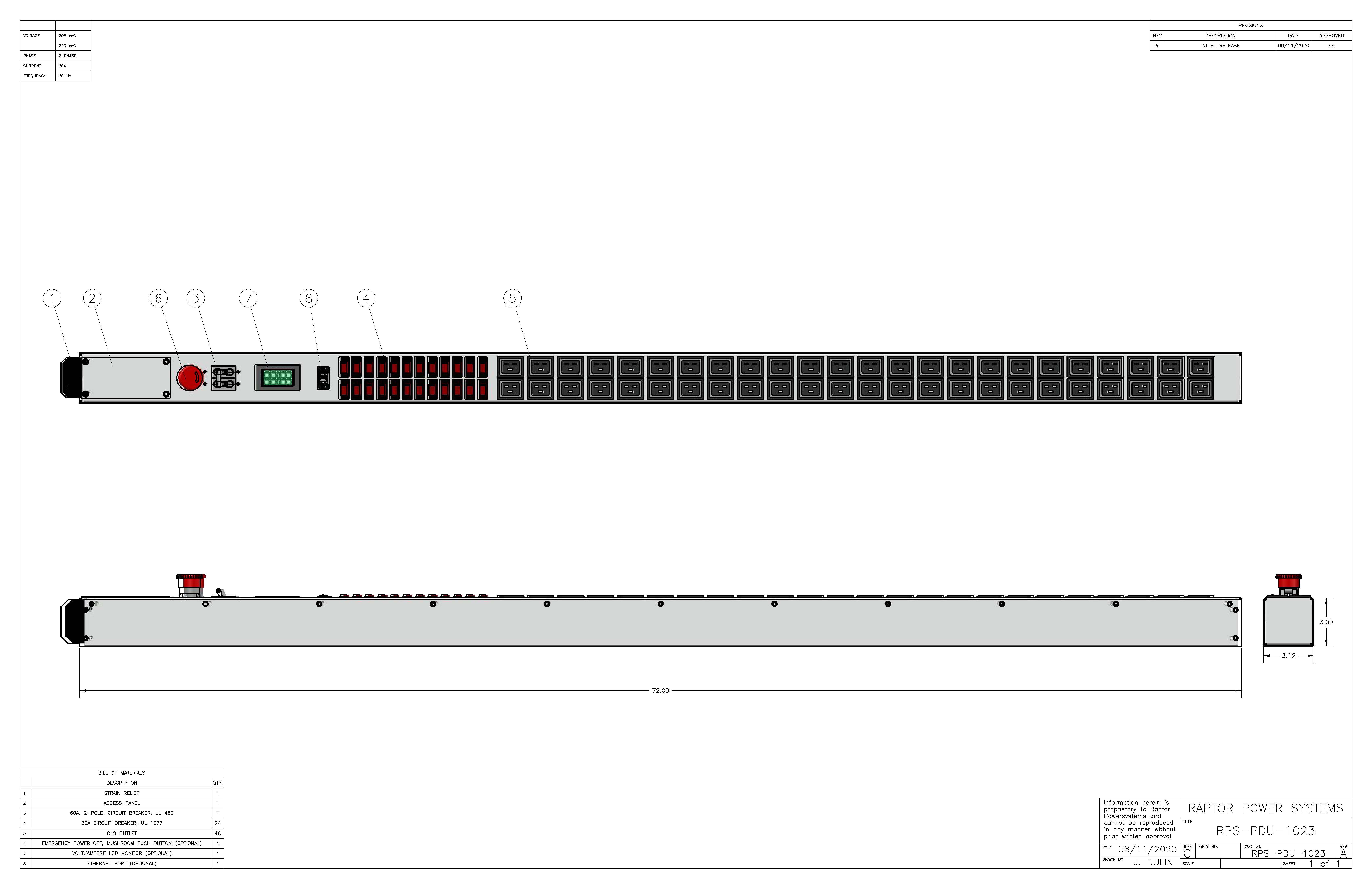

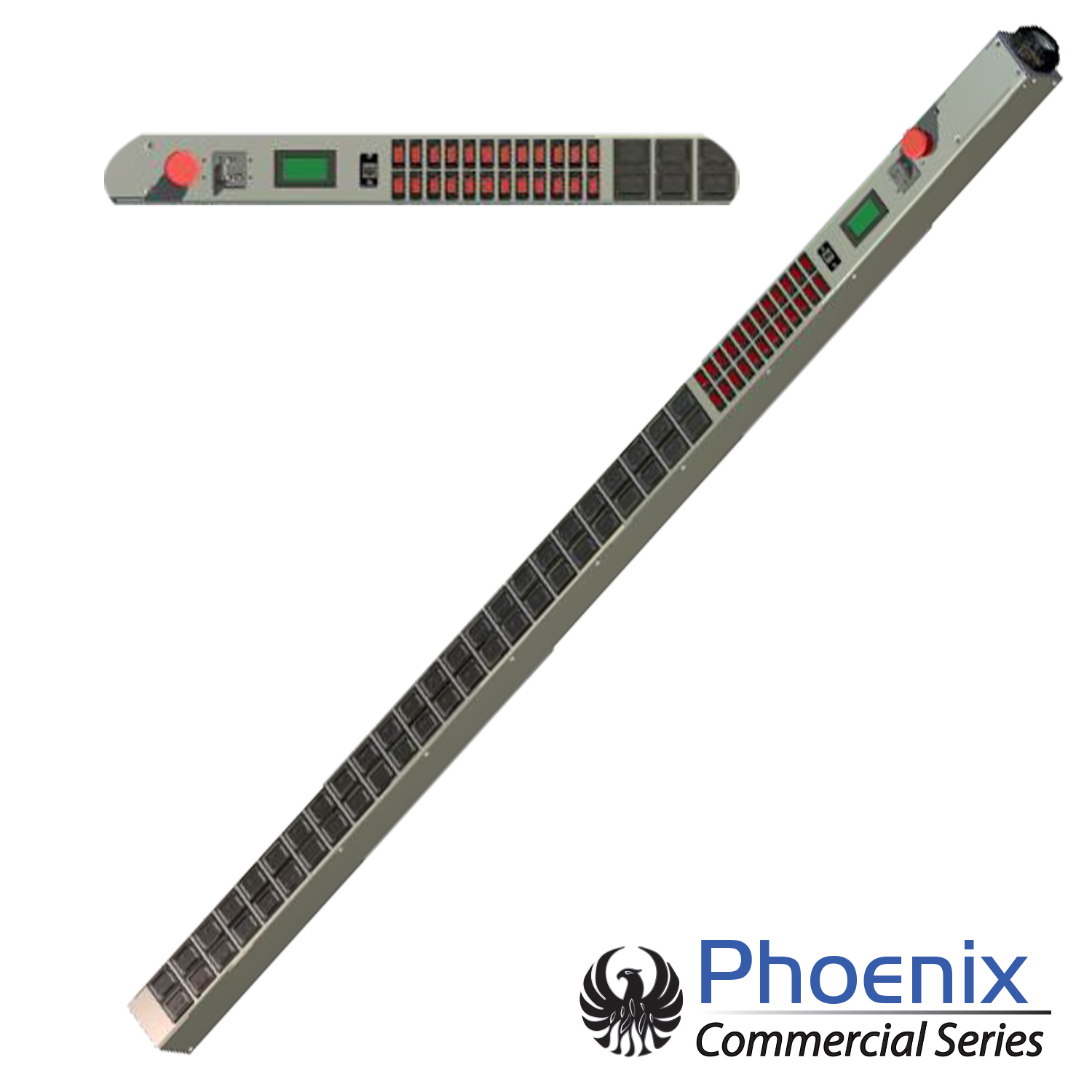

Part Number: RPS-PDU-1023

This 60A, 0U PDU has 48 x C-19 outlets, a hardwire input, and switched outputs.  Optional remote control & monitoring, and compliance testing are available.
ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure No
Enclosure Material Aluminium/Steel
Enclosure Size 0U x 72"
Enclosure Style 0U Vertical Mount
INPUT SPECIFICATIONS
Frequency 60Hz
Input Breaker UL Compliance UL 489
Input Circuit Protection Switched 60 Amp Circuit Breaker
Input Voltage 208VAC Single Phase; 240VAC Single Phase
Lightning Protection (MOV) No
Phase Dual Phase (line, line, ground)
Power Cord N/A
Total Current 60 Amps
Input Connector Hardwire
OUTPUT SPECIFICATIONS
Output Banking Scheme 2 Outlets per Circuit Breaker
Output Breaker UL Compliance UL 1077
Output Circuit Protection 24 x 30 Amp Switched Circuit Breakers
Output Connectors 48 x C-19
Output Phase Dual Phase (line, line, ground)
Output Voltage Synced to Input
PRODUCT DETAILS
Compliance ISO 9001:2016 Quality Controlled; Built to Meet UL 60950-1
Operating Temperature 0C - 60C
TAA Compliant -

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.

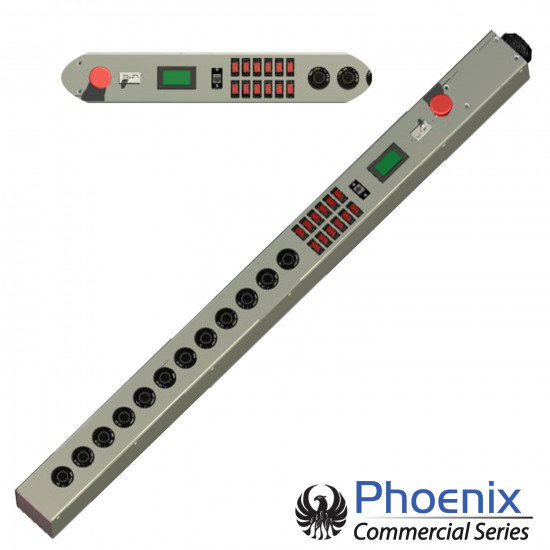

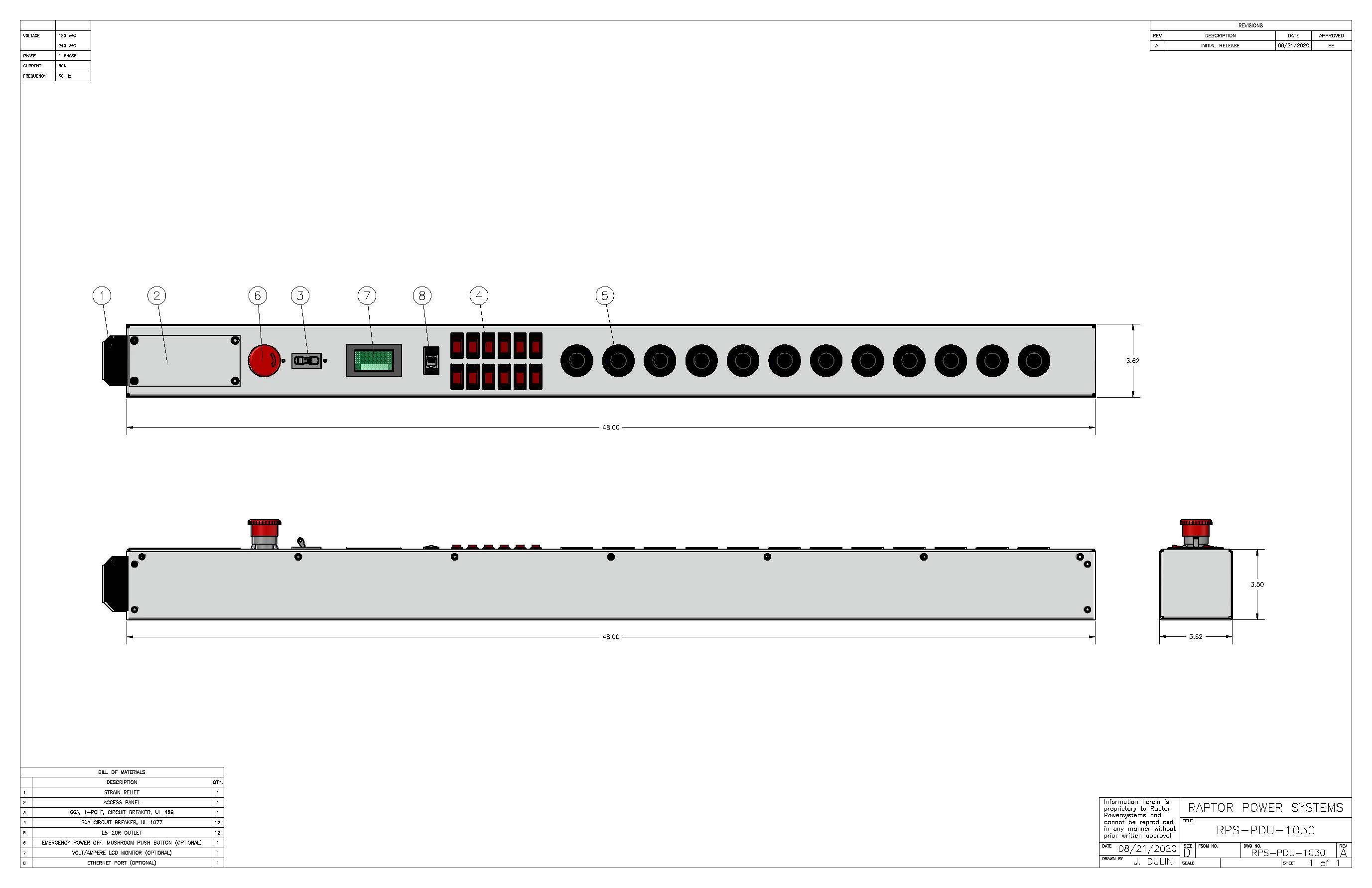

Part Number: RPS-PDU-1030

This 60A, 0U PDU has 12 x L5-20R outlets, a hardwire input, an LCD meter to show volts and amps, and switched outputs.  Optional EMI filtering, EPO, remote control & monitoring, and compliance testing are available.
ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure No
Enclosure Material Aluminium/Steel
Enclosure Size 0U x 36"
Enclosure Style 19in Rack Mount
INPUT SPECIFICATIONS
Frequency 60Hz
Input Breaker UL Compliance UL 489
Input Circuit Protection Switched 60 Amp Circuit Breaker
Input Voltage 120VAC Single Phase; 240VAC Single Phase
Lightning Protection (MOV) No
Phase Single Phase (line, neutral, ground)
Power Cord -
Total Current 60 Amps
Input Connector Hardwire
OUTPUT SPECIFICATIONS
Output Banking Scheme 1 Outlet per Circuit Breaker
Output Breaker UL Compliance UL 1077
Output Circuit Protection 12 x 20 Amp Switched Circuit Breakers
Output Connectors 12 x L5-20R
Output Phase Single Phase (line, neutral, ground)
Output Voltage Synced to Input
PRODUCT DETAILS
Compliance ISO 9001:2016 Quality Controlled; Built to Meet UL 60950-1
Operating Temperature 0C - 60C
TAA Compliant No

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.

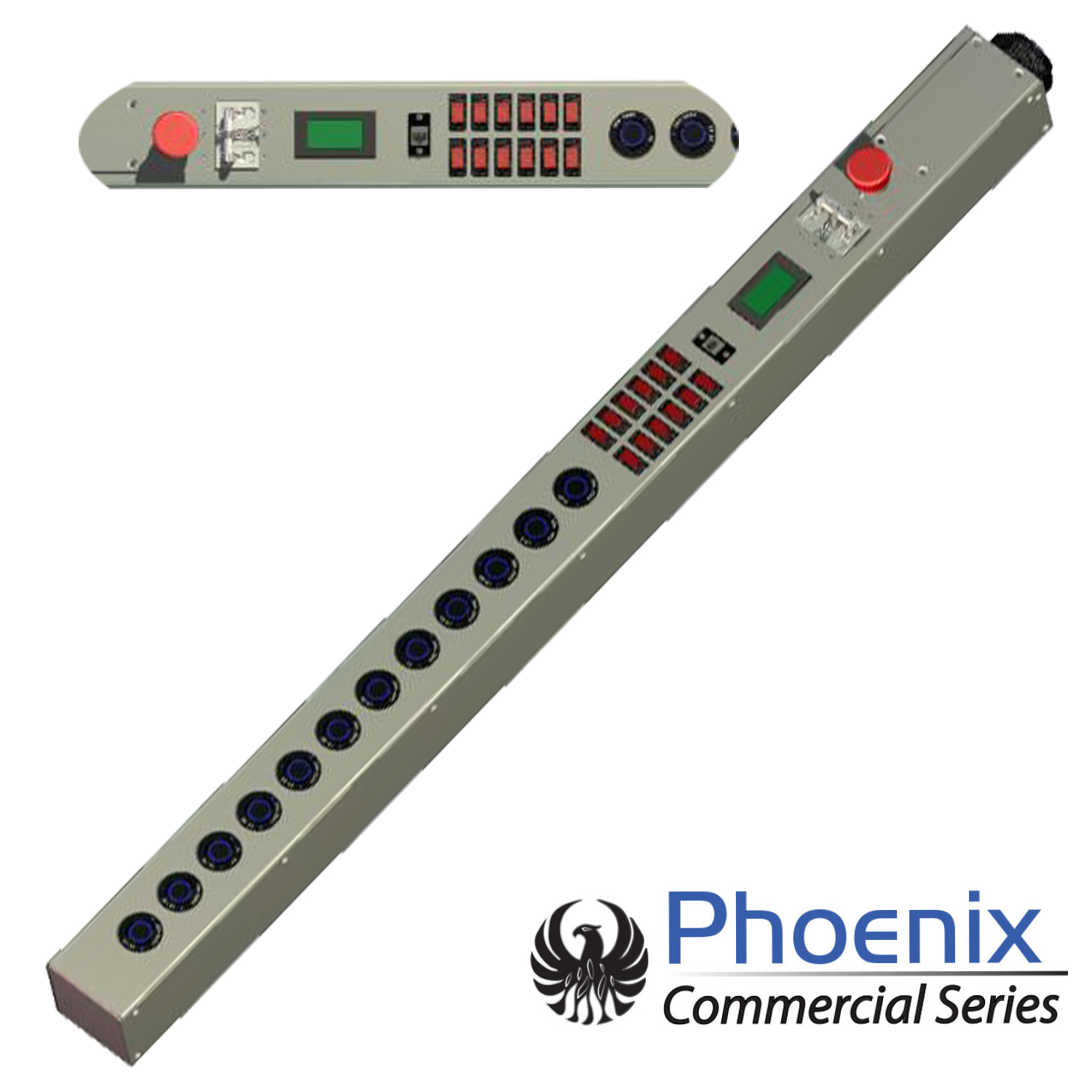

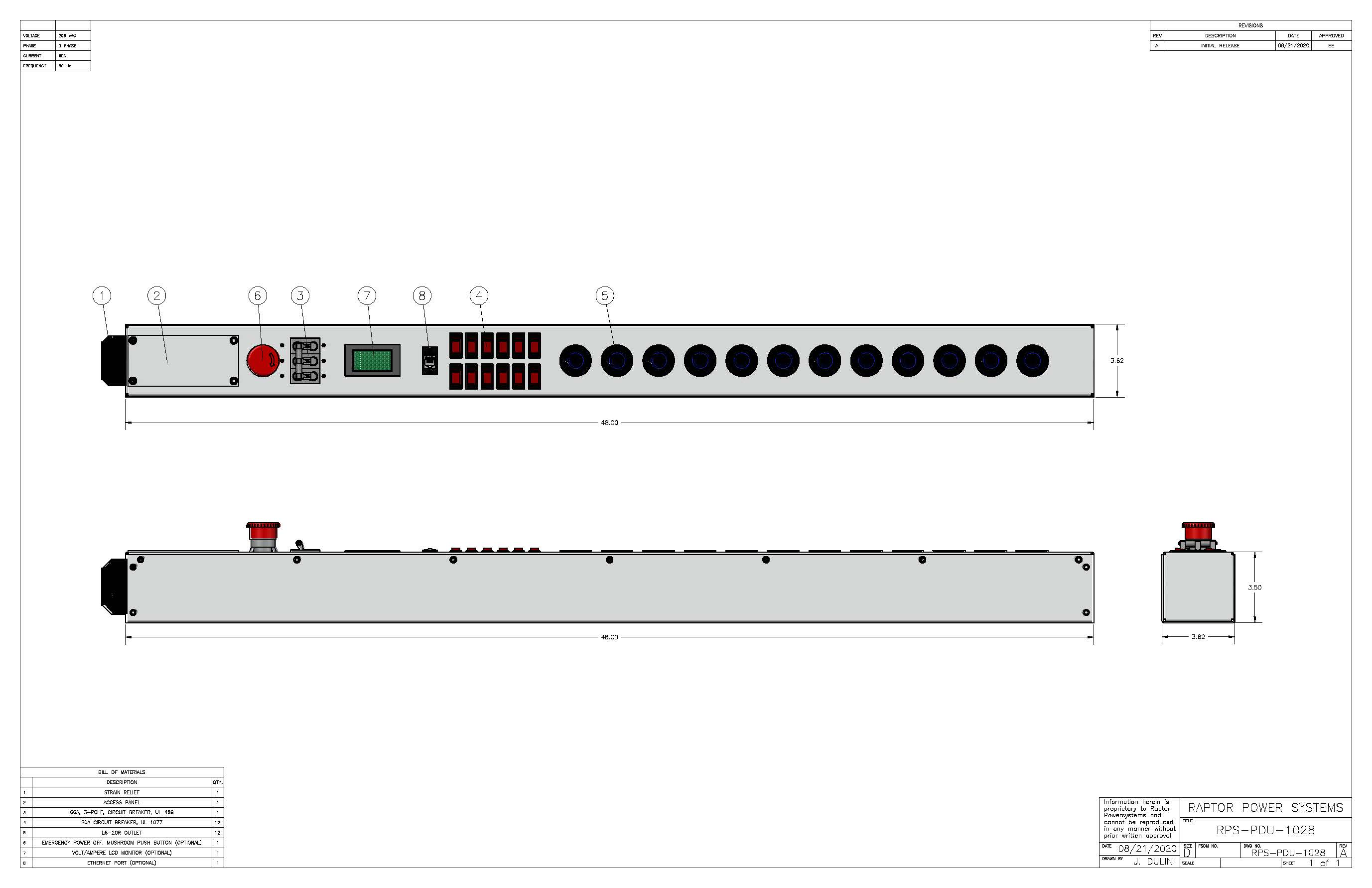

Part Number: RPS-PDU-1028

This 60A, 0U PDU has 12 x L6-20R outlets, a hardwire input, an LCD meter to show volts and amps, and switched outputs.  Optional EMI filtering, EPO, remote control & monitoring, and compliance testing are available.
ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure No
Enclosure Material Aluminium/Steel
Enclosure Size 0U x 36"
Enclosure Style 19in Rack Mount
INPUT SPECIFICATIONS
Frequency 60Hz
Input Breaker UL Compliance UL 489
Input Circuit Protection Switched 60 Amp Circuit Breaker
Input Voltage No208VAC Single Phase; 240VAC Single Phase
Lightning Protection (MOV) No
Phase Dual Phase (line, line, ground)
Power Cord -
Total Current 60 Amps
Input Connector Hardwire
OUTPUT SPECIFICATIONS
Output Banking Scheme 1 Outlet per Circuit Breaker
Output Breaker UL Compliance UL 1077
Output Circuit Protection 12 x 20 Amp Switched Circuit Breakers
Output Connectors 12 x L6-20R
Output Phase Dual Phase (line, line, ground)
Output Voltage Synced to Input
PRODUCT DETAILS
Compliance ISO 9001:2016 Quality Controlled; Built to Meet UL 60950-1
Operating Temperature 0C - 60C
TAA Compliant No

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.

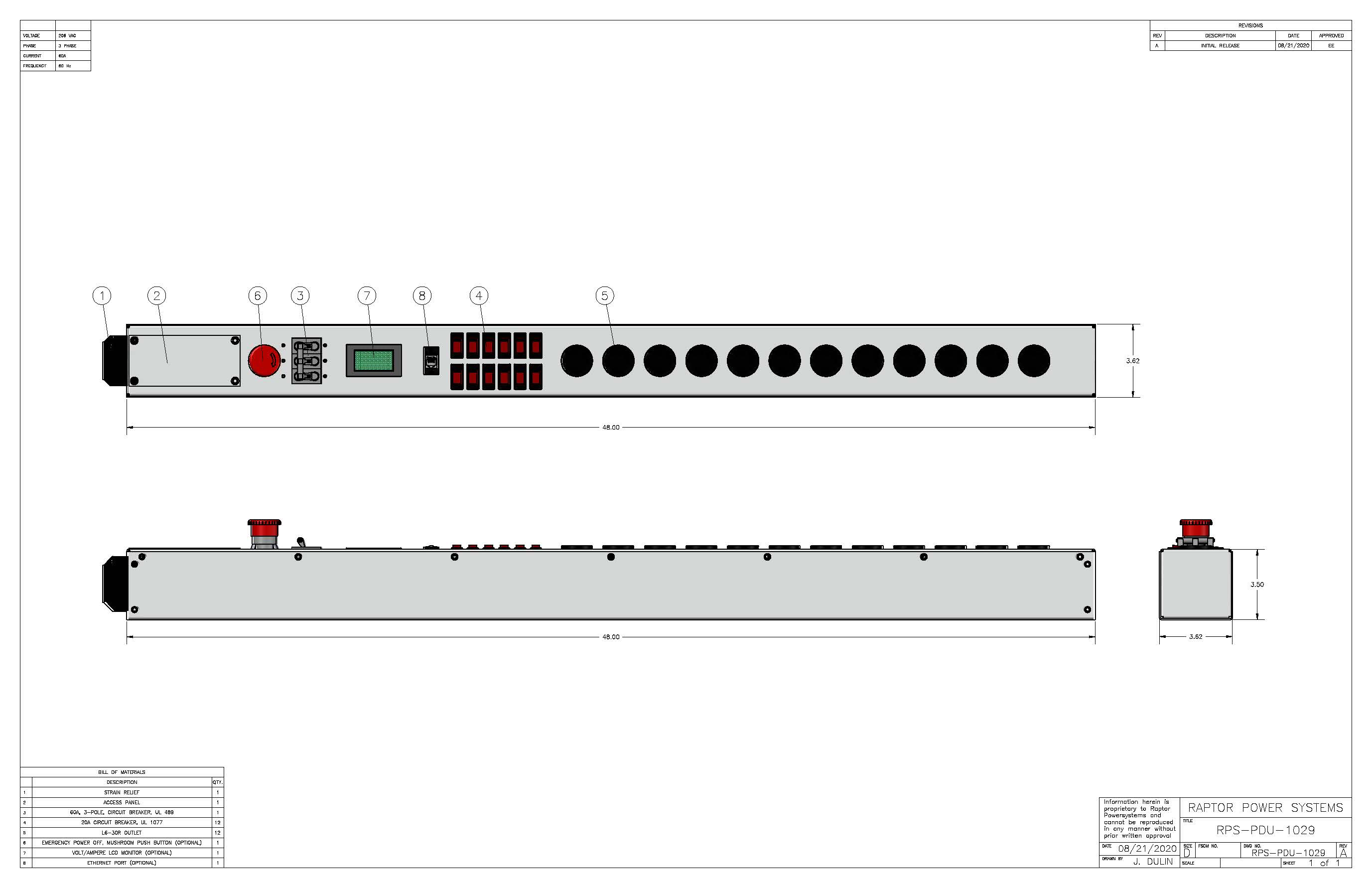

Part Number: RPS-PDU-1029

This 60A, 0U PDU has 12 x L6-30R outlets, a hardwire input, an LCD meter to show volts and amps, and switched outputs.  Optional EMI filtering, EPO, remote control & monitoring, and compliance testing are available.
ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure No
Enclosure Material Aluminium/Steel
Enclosure Size 0U x 36"
Enclosure Style 19in Rack Mount
INPUT SPECIFICATIONS
Frequency 60Hz
Input Breaker UL Compliance UL 489
Input Circuit Protection Switched 60 Amp Circuit Breaker
Input Voltage 208VAC Single Phase; 240VAC Single Phase
Lightning Protection (MOV) No
Phase Dual Phase (line, line, ground)
Power Cord -
Total Current 60 Amps
Input Connector Hardwire
OUTPUT SPECIFICATIONS
Output Banking Scheme 1 Outlet per Circuit Breaker
Output Breaker UL Compliance UL 1077
Output Circuit Protection 12 x 30 Amp Switched Circuit Breakers
Output Connectors 12 x L6-30R
Output Phase Dual Phase (line, line, ground)
Output Voltage Synced to Input
PRODUCT DETAILS
Compliance ISO 9001:2016 Quality Controlled; Built to Meet UL 60950-1
Operating Temperature 0C - 60C
TAA Compliant No

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.

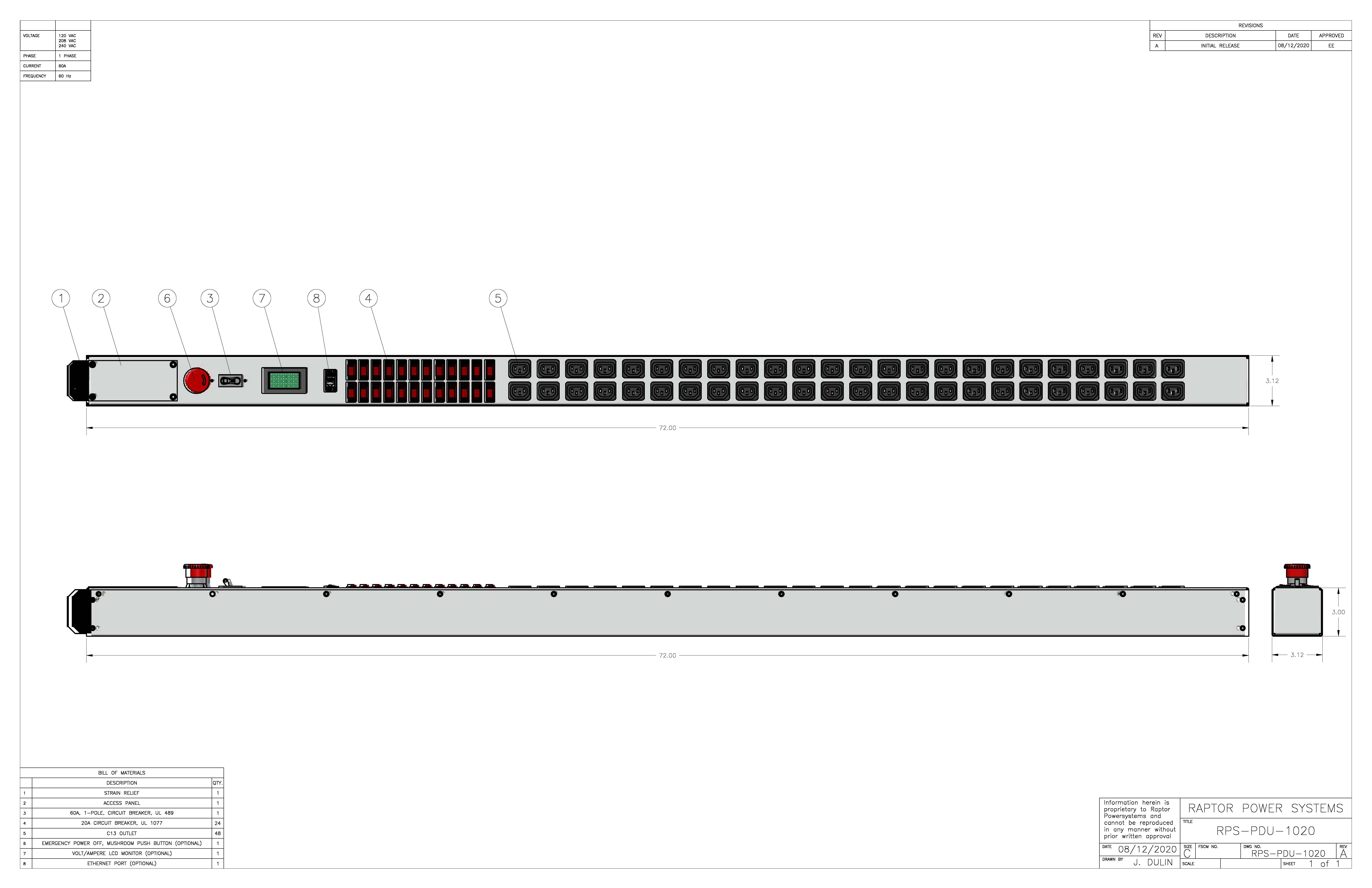

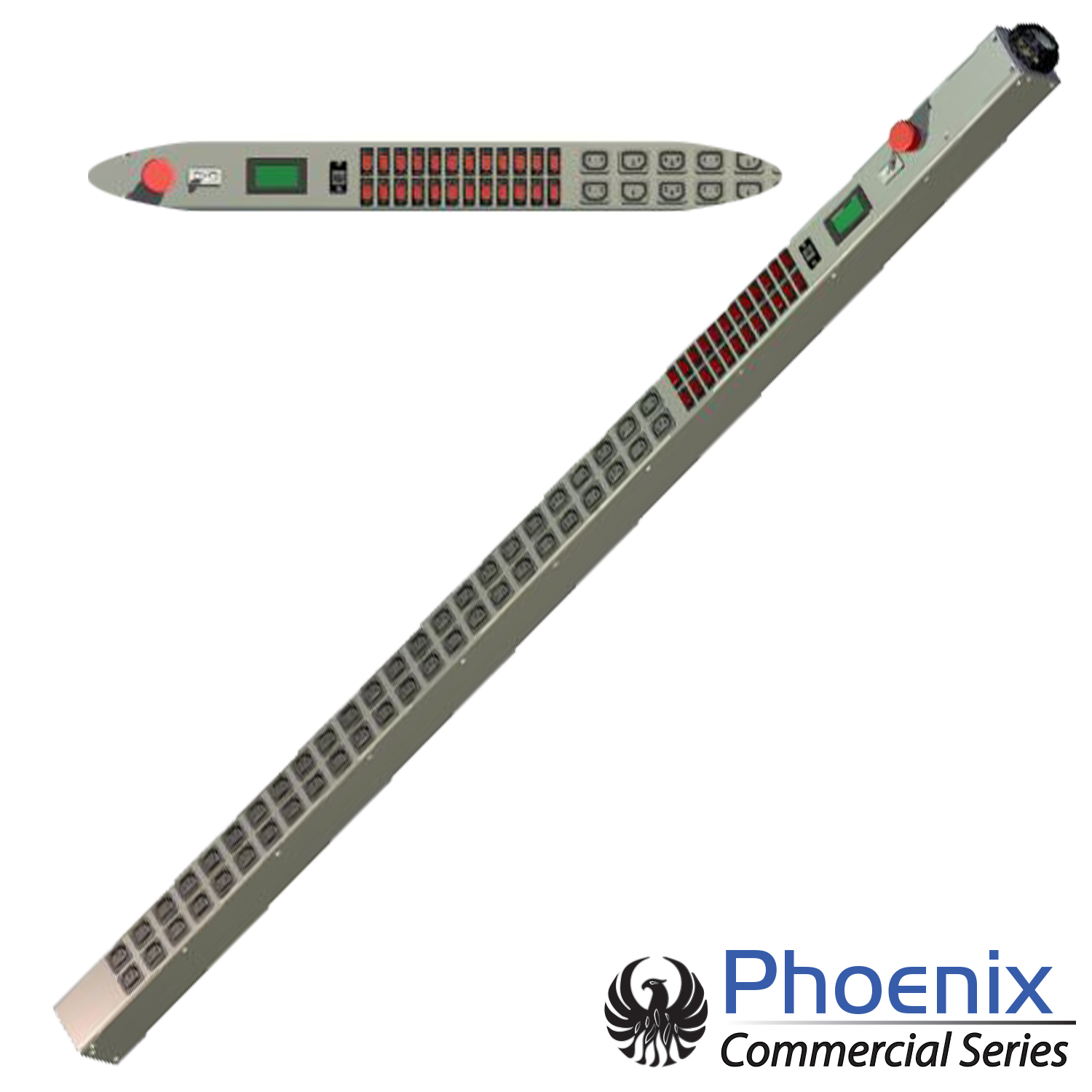

Part Number: RPS-PDU-1020

This 60A, 0U PDU has 48 x C-13 outlets, a hardwire input, and switched outputs.  Optional remote control & monitoring, and compliance testing are available.
ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure No
Enclosure Material Aluminium/Steel
Enclosure Size 0U x 72"
Enclosure Style 0U Vertical Mount
INPUT SPECIFICATIONS
Frequency 60Hz
Input Breaker UL Compliance UL 489
Input Circuit Protection Switched 60 Amp Circuit Breaker
Input Voltage 120VAC Single Phase; 208VAC Single Phase; 240VAC Single Phase
Lightning Protection (MOV) No
Phase Single Phase (line, neutral, ground)
Power Cord N/A
Total Current 60 Amps
Input Connector Hardwire
OUTPUT SPECIFICATIONS
Output Banking Scheme 2 Outlets per Circuit Breaker
Output Breaker UL Compliance UL 1077
Output Circuit Protection 24 x 20 Amp Switched Circuit Breakers
Output Connectors 48 x C-13
Output Phase Single Phase (line, neutral, ground)
Output Voltage Synced to Input
PRODUCT DETAILS
Compliance ISO 9001:2016 Quality Controlled; Built to Meet UL 60950-1
Operating Temperature 0C - 60C
TAA Compliant -

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.

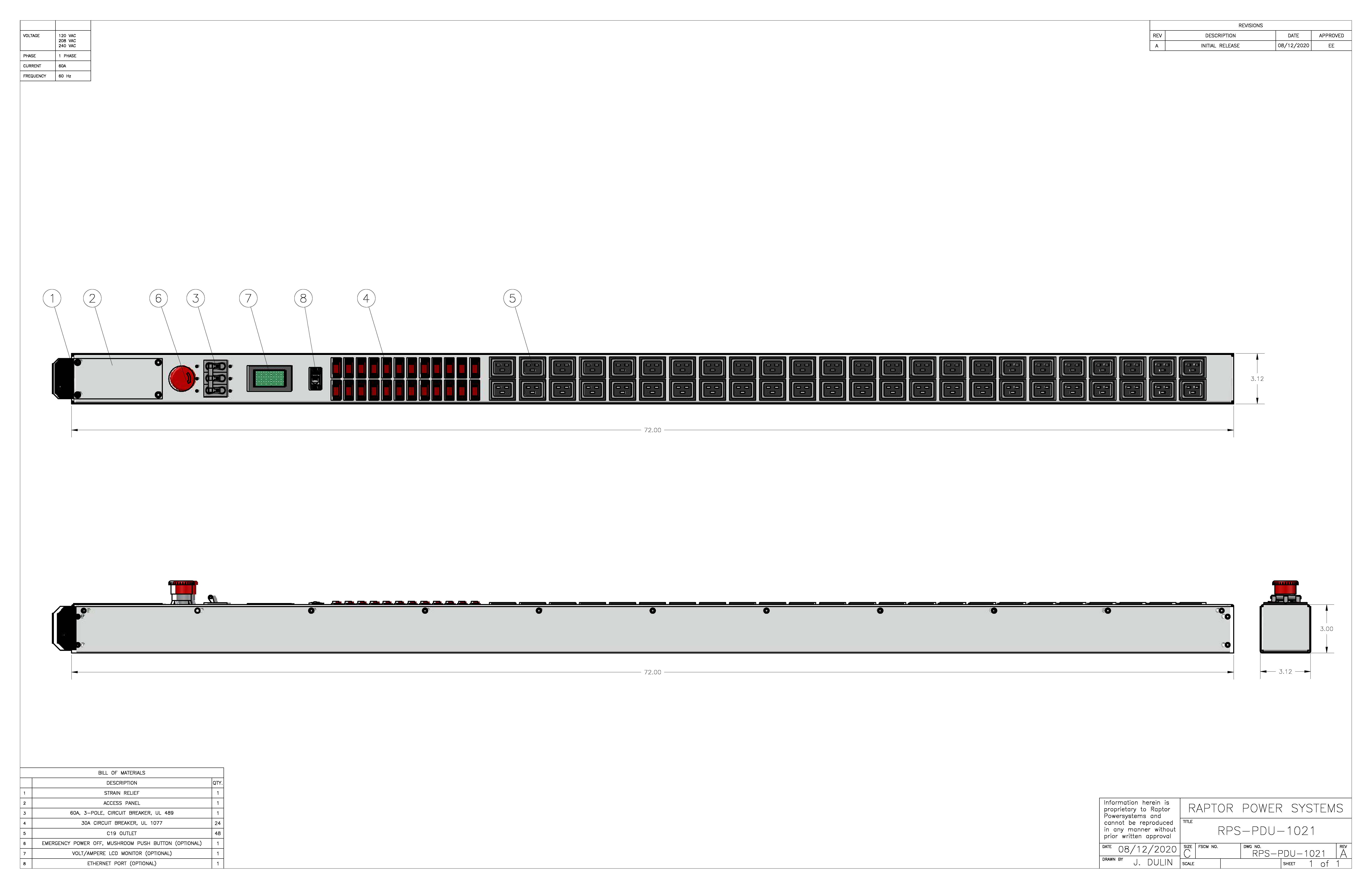

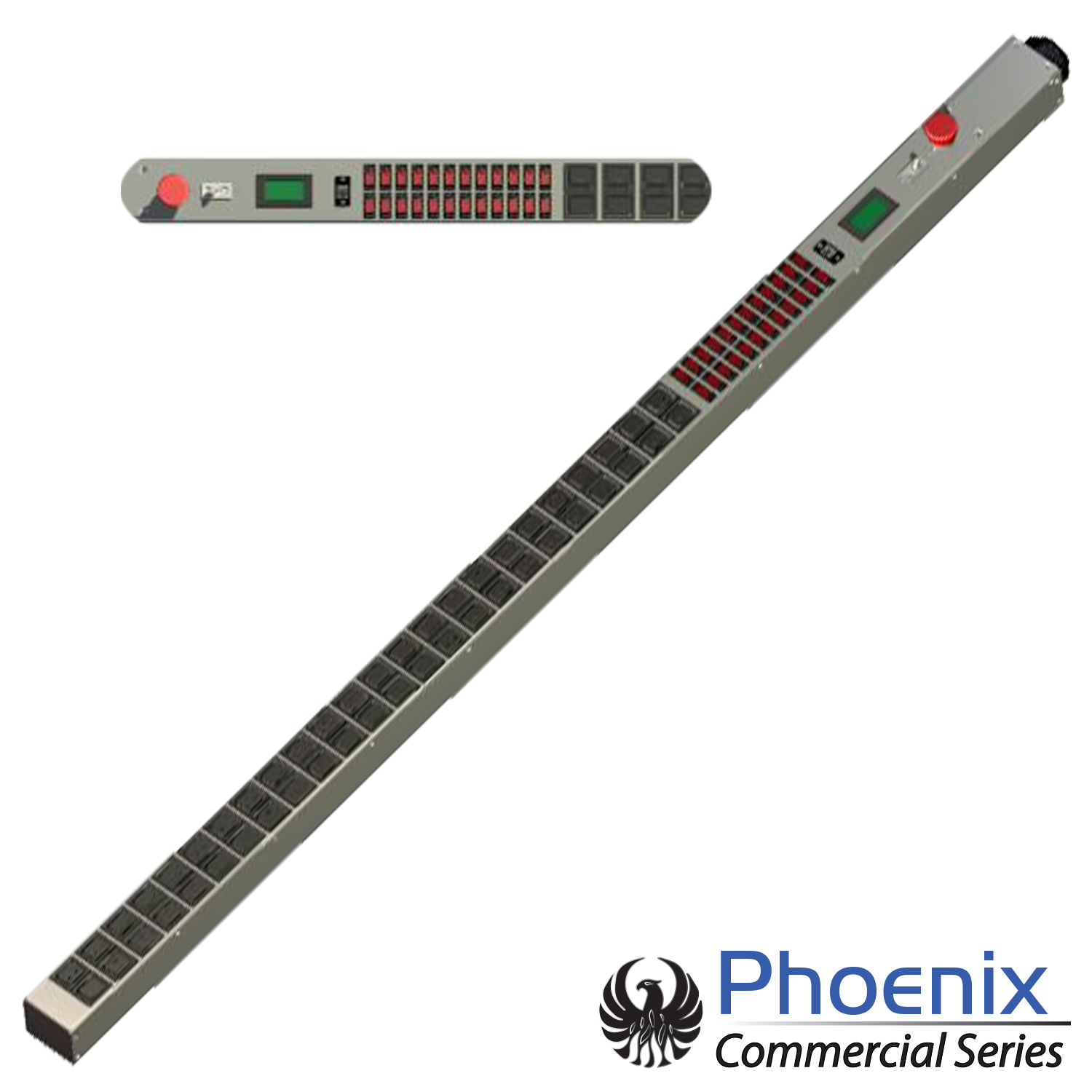

Part Number: RPS-PDU-1021

This 60A, 0U PDU has 48 x C-19 outlets, a hardwire input, and switched outputs.  Optional remote control & monitoring, and compliance testing are available.
ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure No
Enclosure Material Aluminium/Steel
Enclosure Size 0U x 72"
Enclosure Style 0U Vertical Mount
INPUT SPECIFICATIONS
Frequency 60Hz
Input Breaker UL Compliance UL 489
Input Circuit Protection Switched 60 Amp Circuit Breaker
Input Voltage 120VAC/208VAC Three Phase; 240/415VCAC Three Phase
Lightning Protection (MOV) No
Phase Single Phase (line, neutral, ground)
Power Cord N/A
Total Current 60 Amps
Input Connector Hardwire
OUTPUT SPECIFICATIONS
Output Banking Scheme 2 Outlets per Circuit Breaker
Output Breaker UL Compliance UL 1077
Output Circuit Protection 24 x 30 Amp Switched Circuit Breakers
Output Connectors 48 x C-19
Output Phase Single Phase (line, neutral, ground)
Output Voltage Synced to Input
PRODUCT DETAILS
Compliance ISO 9001:2016 Quality Controlled; Built to Meet UL 60950-1
Operating Temperature 0C - 60C
TAA Compliant -

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.

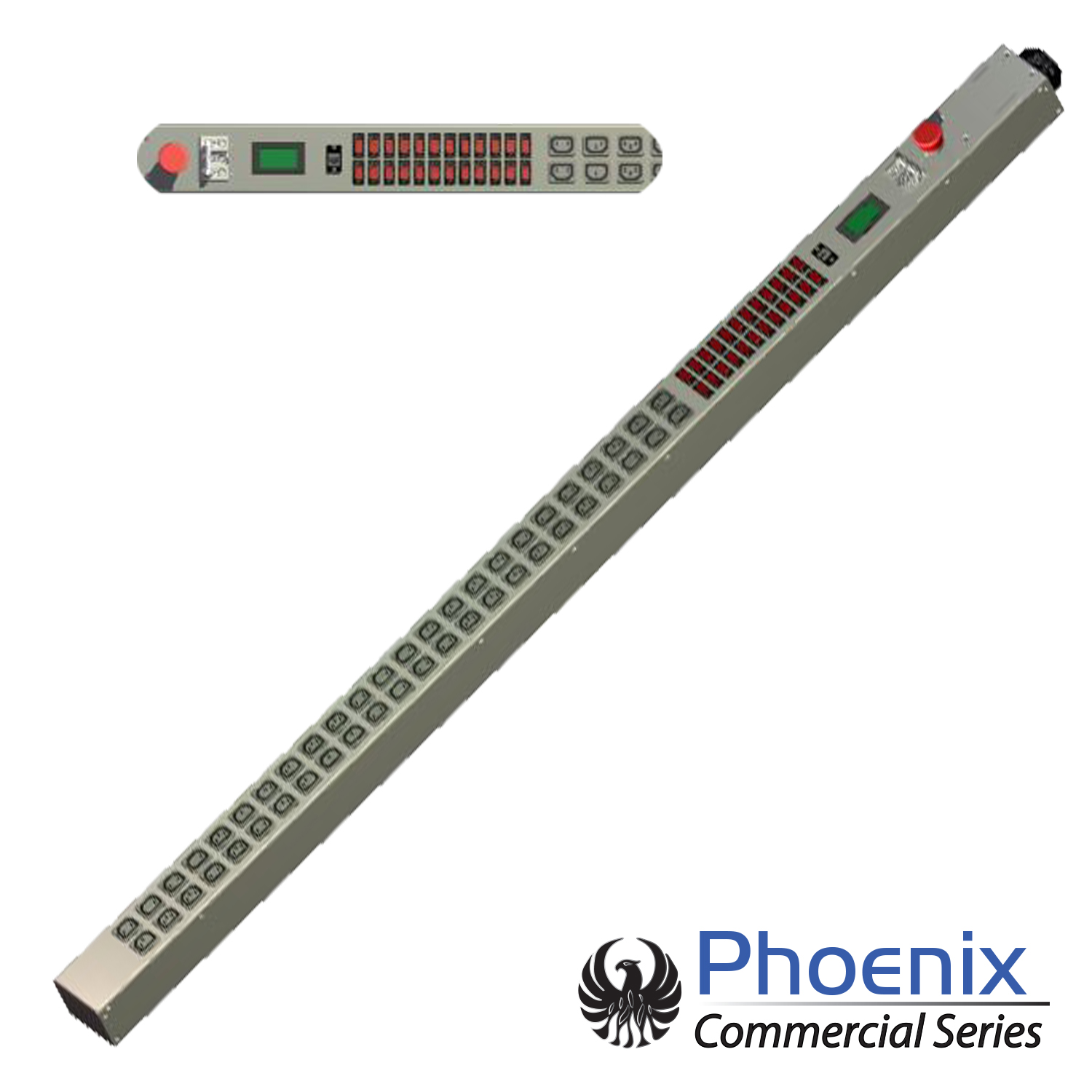

Part Number: RPS-PDU-1044

This 3 phase WYE  0U PDU has a 60A input breaker,  24 x 15A output switched circuit breakers, 48 x C-13 outlets, and an LCD meter that displays volts and current per phase.
ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure No
Enclosure Material Aluminium/Steel
Enclosure Size 3.5" x 3.5" x 72"
Enclosure Style 0U Vertical Mount
INPUT SPECIFICATIONS
Frequency 60Hz
Input Breaker UL Compliance UL 489
Input Circuit Protection 60A Switched Circuit Breaker
Input Voltage 208VAC Three Phase
Lightning Protection (MOV) No
Phase Three Phase DELTA (line, line, line, ground)
Power Cord N/A
Total Current 60 Amps (Three Phase, 180A of Single Phase Load)
Input Connector Internal Hardwire
OUTPUT SPECIFICATIONS
Output Banking Scheme -
Output Breaker UL Compliance -
Output Circuit Protection 24 x 15A Switched Circuit Breakers
Output Connectors 48 x C-13
Output Phase Dual Phase (line, line, ground)
Output Voltage Synced to Input
PRODUCT DETAILS
Compliance ISO 9001:2016 Quality Controlled
Operating Temperature 0C - 60C
TAA Compliant No

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.
Part Number: RPS-PDU-1046

This 3 phase WYE  0U PDU has a 60A input breaker,  24 x 15A output switched circuit breakers, 48 x C-19 outlets, and an LCD meter that displays volts and current per phase.
ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure No
Enclosure Material Aluminium/Steel
Enclosure Size 3.5" x 3.5" x 72"
Enclosure Style 0U Vertical Mount
INPUT SPECIFICATIONS
Frequency 60Hz
Input Breaker UL Compliance UL 489
Input Circuit Protection 60A Switched Circuit Breaker
Input Voltage 208VAC Three Phase
Lightning Protection (MOV) No
Phase Three Phase DELTA (line, line, line, ground)
Power Cord N/A
Total Current 60 Amps (Three Phase, 180A of Single Phase Load)
Input Connector Internal Hardwire
OUTPUT SPECIFICATIONS
Output Banking Scheme -
Output Breaker UL Compliance -
Output Circuit Protection 24 x 20A Switched Circuit Breakers
Output Connectors 48 x C-19
Output Phase Dual Phase (line, line, ground)
Output Voltage Synced to Input
PRODUCT DETAILS
Compliance ISO 9001:2016 Quality Controlled
Operating Temperature 0C - 60C
TAA Compliant No

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.

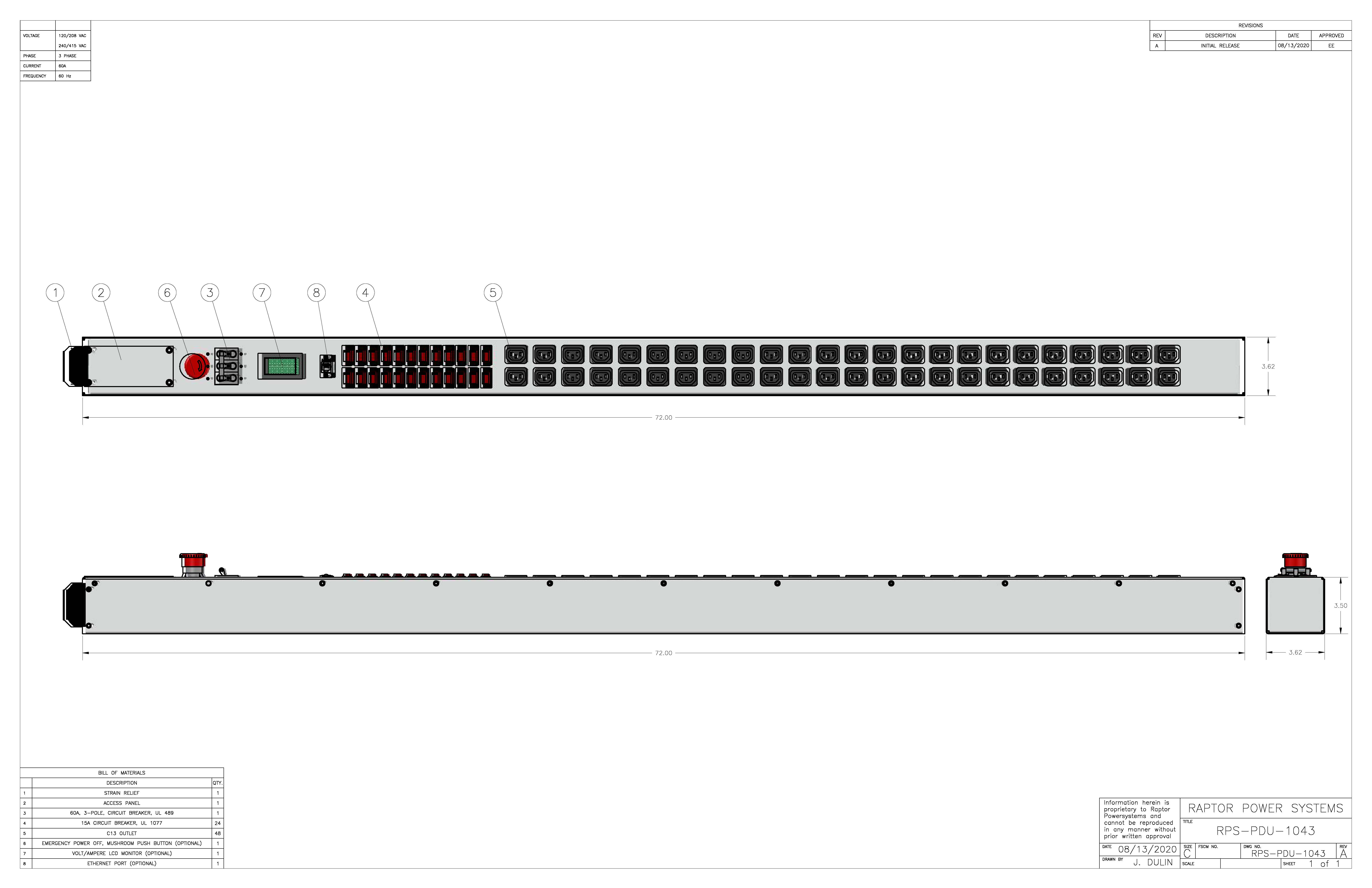

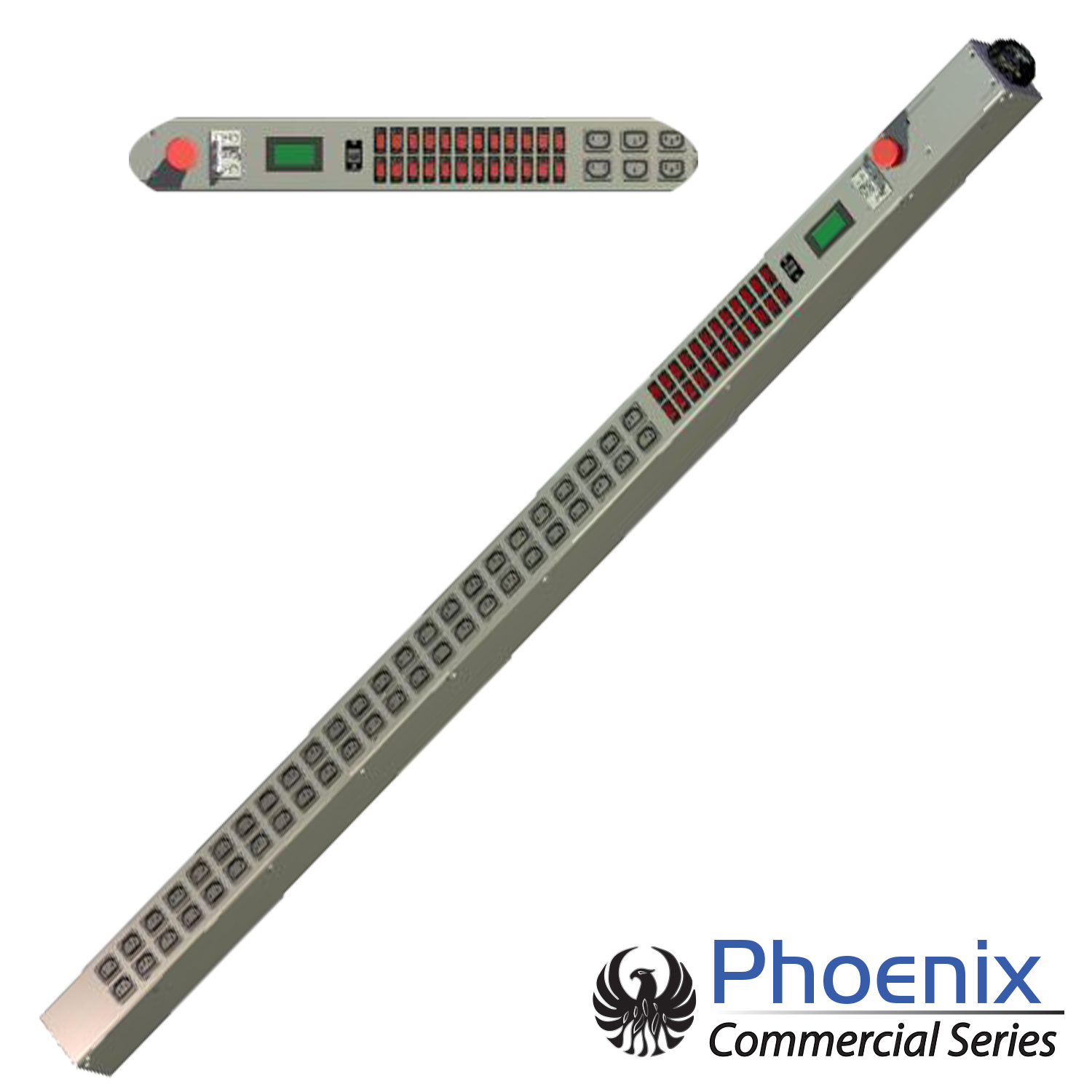

Part Number: RPS-PDU-1043

This 3 phase WYE  0U PDU has a 60A input breaker,  24 x 15A output switched circuit breakers, 48 x C-13 outlets, and an LCD meter that displays volts and current per phase.
ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure No
Enclosure Material Aluminium/Steel
Enclosure Size 3.5" x 3.5" x 72"
Enclosure Style 0U Vertical Mount
INPUT SPECIFICATIONS
Frequency 60Hz
Input Breaker UL Compliance UL 489
Input Circuit Protection 60A Switched Circuit Breaker
Input Voltage 120VAC/208VAC Three Phase; 240/415VAC Three Phase
Lightning Protection (MOV) No
Phase Three Phase WYE (line, line, line, neutral, ground)
Power Cord N/A
Total Current 60 Amps (Three Phase, 180A of Single Phase Load)
Input Connector Internal Hardwire
OUTPUT SPECIFICATIONS
Output Banking Scheme -
Output Breaker UL Compliance -
Output Circuit Protection 24 x 15A Switched Circuit Breakers
Output Connectors 48 x C-13
Output Phase Single Phase (line, neutral, ground)
Output Voltage Synced to Input
PRODUCT DETAILS
Compliance ISO 9001:2016 Quality Controlled
Operating Temperature 0C - 60C
TAA Compliant No

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.
Part Number: RPS-PDU-1045

This 3 phase WYE  0U PDU has a 60A input breaker,  24 x 20A output switched circuit breakers, 48 x C-19 outlets, and an LCD meter that displays volts and current per phase.
ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure No
Enclosure Material Aluminium/Steel
Enclosure Size 3.5" x 3.5" x 72"
Enclosure Style 0U Vertical Mount
INPUT SPECIFICATIONS
Frequency 60Hz
Input Breaker UL Compliance UL 489
Input Circuit Protection 60A Switched Circuit Breaker
Input Voltage 120VAC/208VAC Three Phase; 240/415VAC Three Phase
Lightning Protection (MOV) No
Phase Three Phase WYE (line, line, line, neutral, ground)
Power Cord N/A
Total Current 60 Amps (Three Phase, 180A of Single Phase Load)
Input Connector Internal Hardwire
OUTPUT SPECIFICATIONS
Output Banking Scheme -
Output Breaker UL Compliance -
Output Circuit Protection 24 x 15A Switched Circuit Breakers
Output Connectors 48 x C-13
Output Phase Single Phase (line, neutral, ground)
Output Voltage Synced to Input
PRODUCT DETAILS
Compliance ISO 9001:2016 Quality Controlled
Operating Temperature 0C - 60C
TAA Compliant No

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.
Part Number: RPS-PDU-1048

This 3 phase WYE  0U PDU has a 80A input breaker,  27 x 15A output switched circuit breakers, 54 x C-13 outlets, and an LCD meter that displays volts and current per phase.
ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure No
Enclosure Material Aluminium/Steel
Enclosure Size 4" x 4" x 88"
Enclosure Style 0U Vertical Mount
INPUT SPECIFICATIONS
Frequency 60Hz
Input Breaker UL Compliance UL 489
Input Circuit Protection 80A Switched Circuit Breaker
Input Voltage 208VAC Three Phase
Lightning Protection (MOV) No
Phase Three Phase DELTA (line, line, line, ground)
Power Cord N/A
Total Current 80 Amps (Three Phase, 180A of Single Phase Load)
Input Connector Internal Hardwire
OUTPUT SPECIFICATIONS
Output Banking Scheme -
Output Breaker UL Compliance -
Output Circuit Protection 27 x 15A Switched Circuit Breakers
Output Connectors 54 x C-13
Output Phase Dual Phase (line, line, ground)
Output Voltage Synced to Input
PRODUCT DETAILS
Compliance ISO 9001:2016 Quality Controlled
Operating Temperature 0C - 60C
TAA Compliant No

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.
Part Number: RPS-PDU-1050

This 3 phase WYE  0U PDU has an 80A input breaker,  27 x 20A output switched circuit breakers, 54 x C-19 outlets, and an LCD meter that displays volts and current per phase.
ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure No
Enclosure Material Aluminium/Steel
Enclosure Size 4" x 4" x 88"
Enclosure Style 0U Vertical Mount
INPUT SPECIFICATIONS
Frequency 60Hz
Input Breaker UL Compliance UL 489
Input Circuit Protection 80A Switched Circuit Breaker
Input Voltage 208VAC Three Phase
Lightning Protection (MOV) No
Phase Three Phase DELTA (line, line, line, ground)
Power Cord N/A
Total Current 80 Amps (Three Phase, 180A of Single Phase Load)
Input Connector Internal Hardwire
OUTPUT SPECIFICATIONS
Output Banking Scheme -
Output Breaker UL Compliance -
Output Circuit Protection 27 x 20A Switched Circuit Breakers
Output Connectors 54 x C-19
Output Phase Dual Phase (line, line, ground)
Output Voltage Synced to Input
PRODUCT DETAILS
Compliance ISO 9001:2016 Quality Controlled
Operating Temperature 0C - 60C
TAA Compliant No

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.
Part Number: RPS-PDU-1047

This 3 phase WYE  0U PDU has an 80A input breaker,  27 x 15A output switched circuit breakers, 54 x C-13 outlets, and an LCD meter that displays volts and current per phase.
ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure No
Enclosure Material Aluminium/Steel
Enclosure Size 4" x 4" x 88"
Enclosure Style 0U Vertical Mount
INPUT SPECIFICATIONS
Frequency 60Hz
Input Breaker UL Compliance UL 489
Input Circuit Protection 80A Switched Circuit Breaker
Input Voltage 120VAC/208VAC Three Phase; 240/415VAC Three Phase
Lightning Protection (MOV) No
Phase Three Phase WYE (line, line, line, neutral, ground)
Power Cord N/A
Total Current 80 Amps (Three Phase, 180A of Single Phase Load)
Input Connector Internal Hardwire
OUTPUT SPECIFICATIONS
Output Banking Scheme -
Output Breaker UL Compliance -
Output Circuit Protection 27 x 15A Switched Circuit Breakers
Output Connectors 54 x C-13
Output Phase Single Phase (line, neutral, ground)
Output Voltage Synced to Input
PRODUCT DETAILS
Compliance ISO 9001:2016 Quality Controlled
Operating Temperature 0C - 60C
TAA Compliant No

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.
Part Number: RPS-PDU-1049

This 3 phase WYE  0U PDU has an 80A input breaker,  27 x 20A output switched circuit breakers, 54 x C-19 outlets, and an LCD meter that displays volts and current per phase.
ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure No
Enclosure Material Aluminium/Steel
Enclosure Size 4" x 4" x 88"
Enclosure Style 0U Vertical Mount
INPUT SPECIFICATIONS
Frequency 60Hz
Input Breaker UL Compliance UL 489
Input Circuit Protection 80A Switched Circuit Breaker
Input Voltage 120VAC/208VAC Three Phase; 240/415VAC Three Phase
Lightning Protection (MOV) No
Phase Three Phase WYE (line, line, line, neutral, ground)
Power Cord N/A
Total Current 80 Amps (Three Phase, 180A of Single Phase Load)
Input Connector Internal Hardwire
OUTPUT SPECIFICATIONS
Output Banking Scheme -
Output Breaker UL Compliance -
Output Circuit Protection 27 x 20A Switched Circuit Breakers
Output Connectors 54 x C-19
Output Phase Single Phase (line, neutral, ground)
Output Voltage Synced to Input
PRODUCT DETAILS
Compliance ISO 9001:2016 Quality Controlled
Operating Temperature 0C - 60C
TAA Compliant No

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.
Mission-critical
custom and standard
PDUs and UPS systems
© 2024, Raptor Power Systems

Contact

Toll Free: (800) 258-0129
info@raptorpowersystems.com

Sales / Engineering
3611 N Staley Road STE D
Champaign, IL 61853

Manufacturing
607 Industrial Way W
Eatontown, NJ 07724

Search
